- 1.3/P4.5 Female Extended
Product Features
FH
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||
| FT | J1130BS-2EL | - | - | 18.1 | - | 1.3 | 11.5 | 0.2 | - |
Optional Items Features
| FH | FH1 | FH2 | FH3 | FH4 |
.png) |  |  |  |  |
| FH5 | FH6 | FH7 | ||
 |  |  |
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||
| FH | JP1130-2EL | 5.7 | 25.0 | 10.6 | 4.5 | - | - | - | - |
| FH1 | JP1130-3EL | 5.7 | 25.0 | 15.2 | 4.5 | - | - | - | - |
| FH2 | JP1130-4-1EL | 5.7 | 25.0 | 19.7 | 4.5 | - | - | - | - |
| FH3 | JP1130-4EL | 10.2 | 25.0 | 10.6 | 4.5 | - | - | - | - |

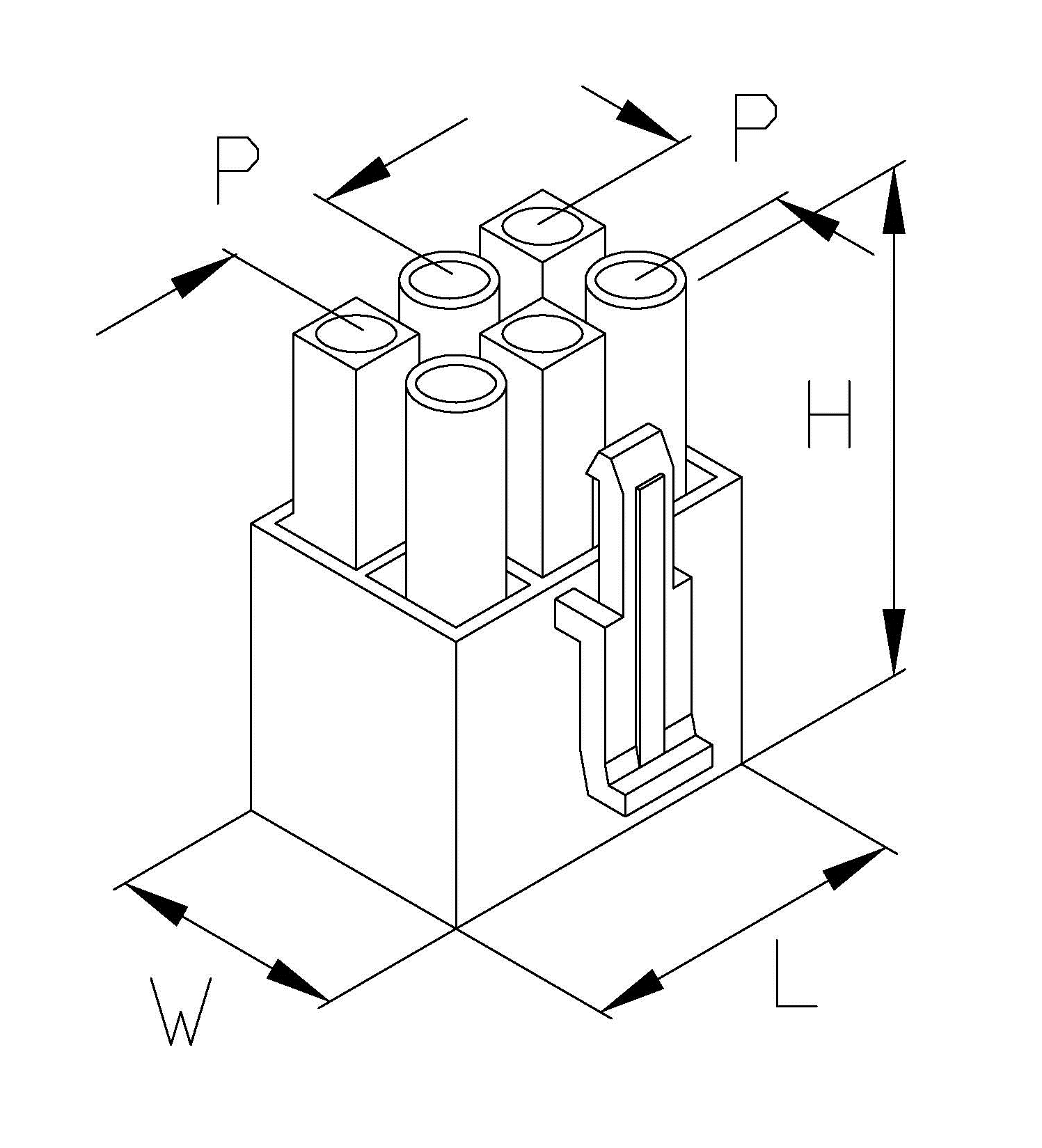

| FH4 | JP1130-6EL | 10.3 | 25.0 | 15.2 | 4.5 | - | - | - | - |
| FH5 | JP1130-9EL | 14.7 | 25.0 | 15.2 | 4.5 | - | - | - | - |
| FH6 | JP1130-12EL | 14.7 | 25.0 | 19.7 | 4.5 | - | - | - | - |
| FH7 | JP1130-15EL | 14.7 | 25.0 | 24.2 | 4.5 | - | - | - | - |
