- 1.3/P4.5 Female
Product Features
FT
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
| 尺寸 ( 單位 mm ) |

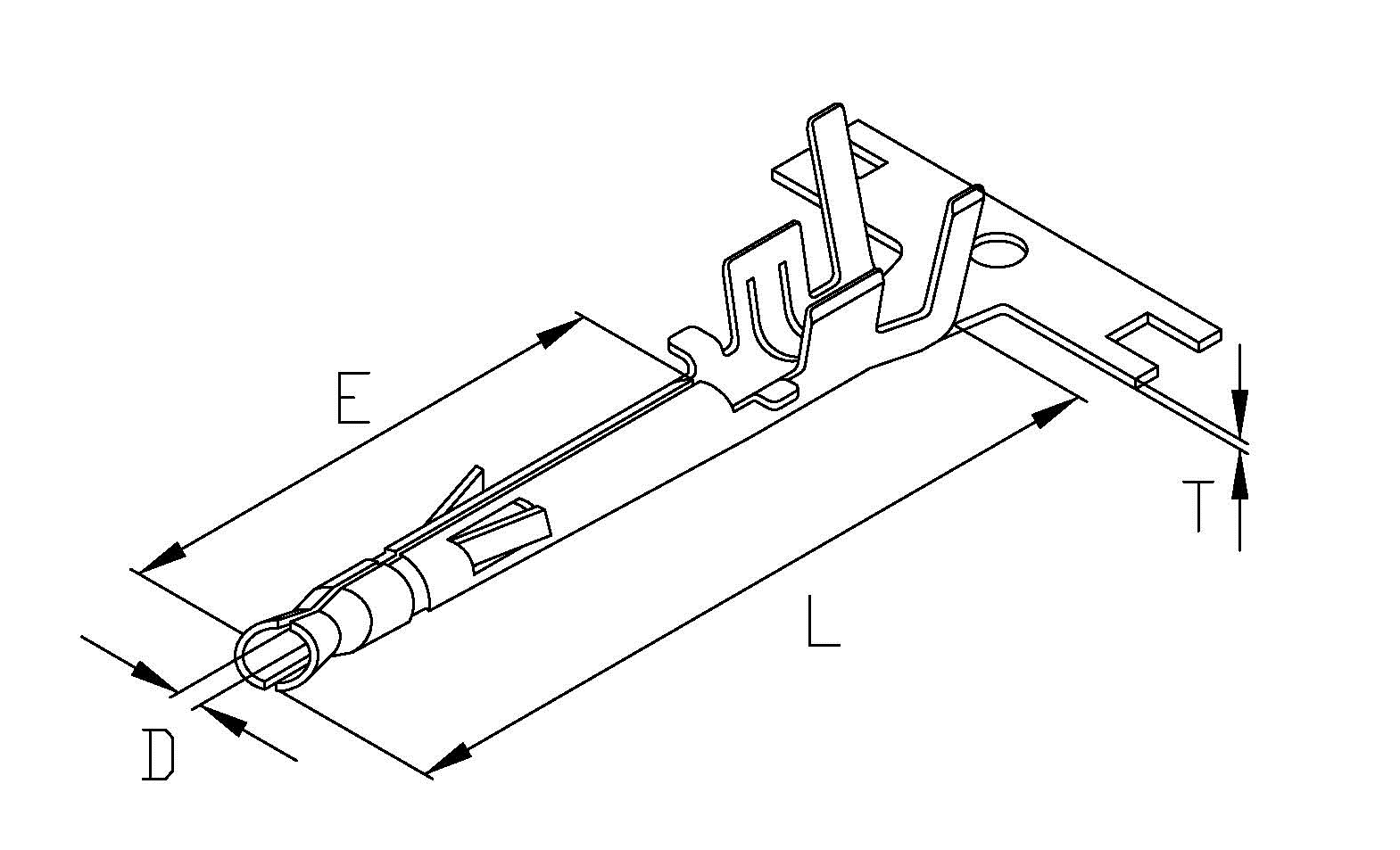

| FT | J1130BS | - | - | 15.4 | - | 1.3 | 9.0 | 0.25 | | - |
Optional Items Features
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
| 尺寸 ( 單位 mm ) |
| FH | JP1130-2 | 5.8 | 23.0 | 10.3 | 4.5 | - | - | - | | - |
| FH1 | JP1130-3 | 5.7 | 22.4 | 14.5 | 4.5 | - | - | - | | - |
| FH2 | JP1130-4 | 5.4 | 22.4 | 19.0 | 4.5 | - | - | - | | - |
| FH3 | JP1130-6 | 9.9 | 22.0 | 14.4 | 4.5 | - | - | - | | - |

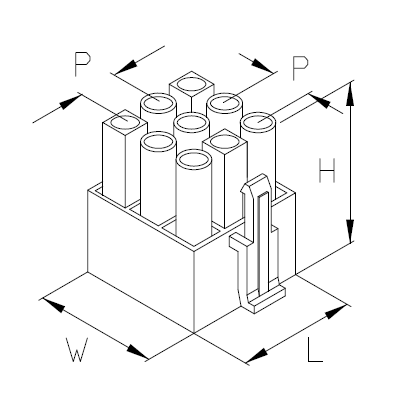

| FH4 | JP1130-9 | 14.4 | 22.0 | 14.4 | 4.5 | - | - | - | | - |
| FH5 | JP1130-12 | 14.5 | 22.4 | 19.0 | 4.5 | - | - | - | | - |
| MH | JP1030-2 | 5.4 | 22.4 | 9.9 | 4.5 | - | - | - | - | - |
