- 1.3/P4.5 Male Extended
Product Features
MT
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||

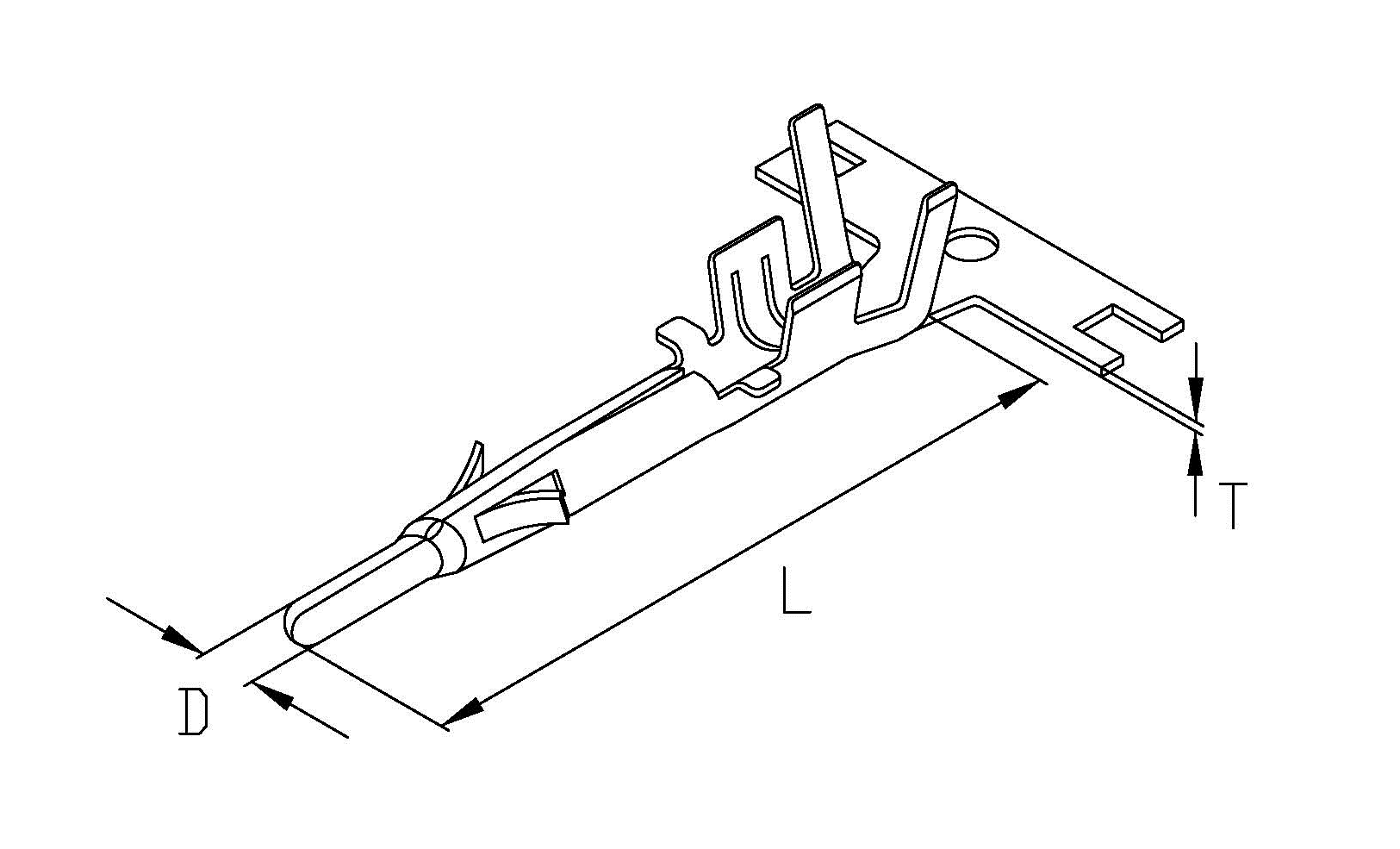

| MT | J1030BS-2EL | - | - | 18.1 | - | 1.3 | 11.6 | 0.2 | - |
Optional Items Features
| MH | MH1 | MH2 | MH3 | MH4 |
.png) | .png) |  |  |  |
| MH5 | MH6 | MH7 | ||
 |  |  |
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||

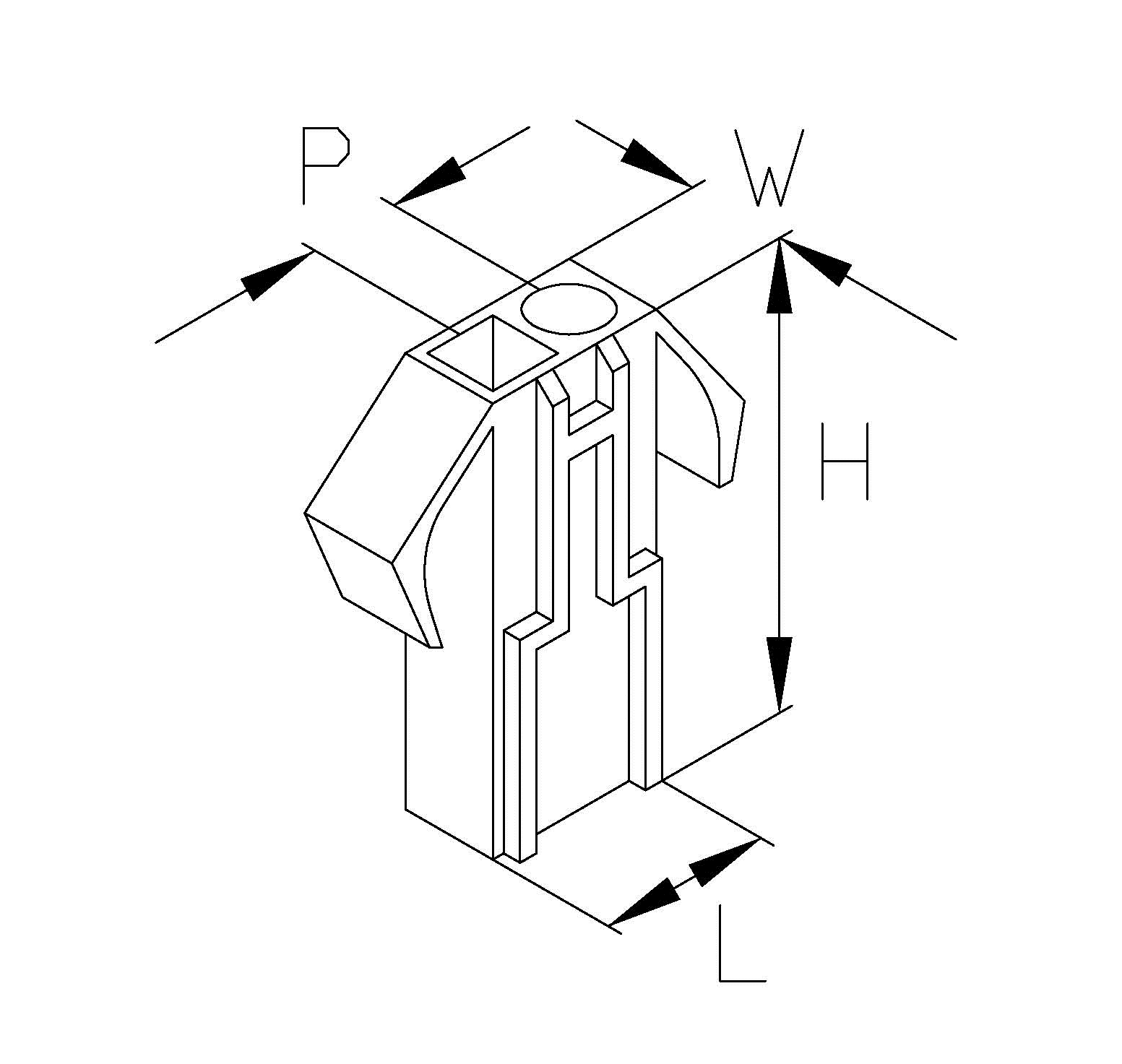

| MH | JP1030-2EL | 5.7 | 25.3 | 10.8 | 4.5 | - | - | - | - |

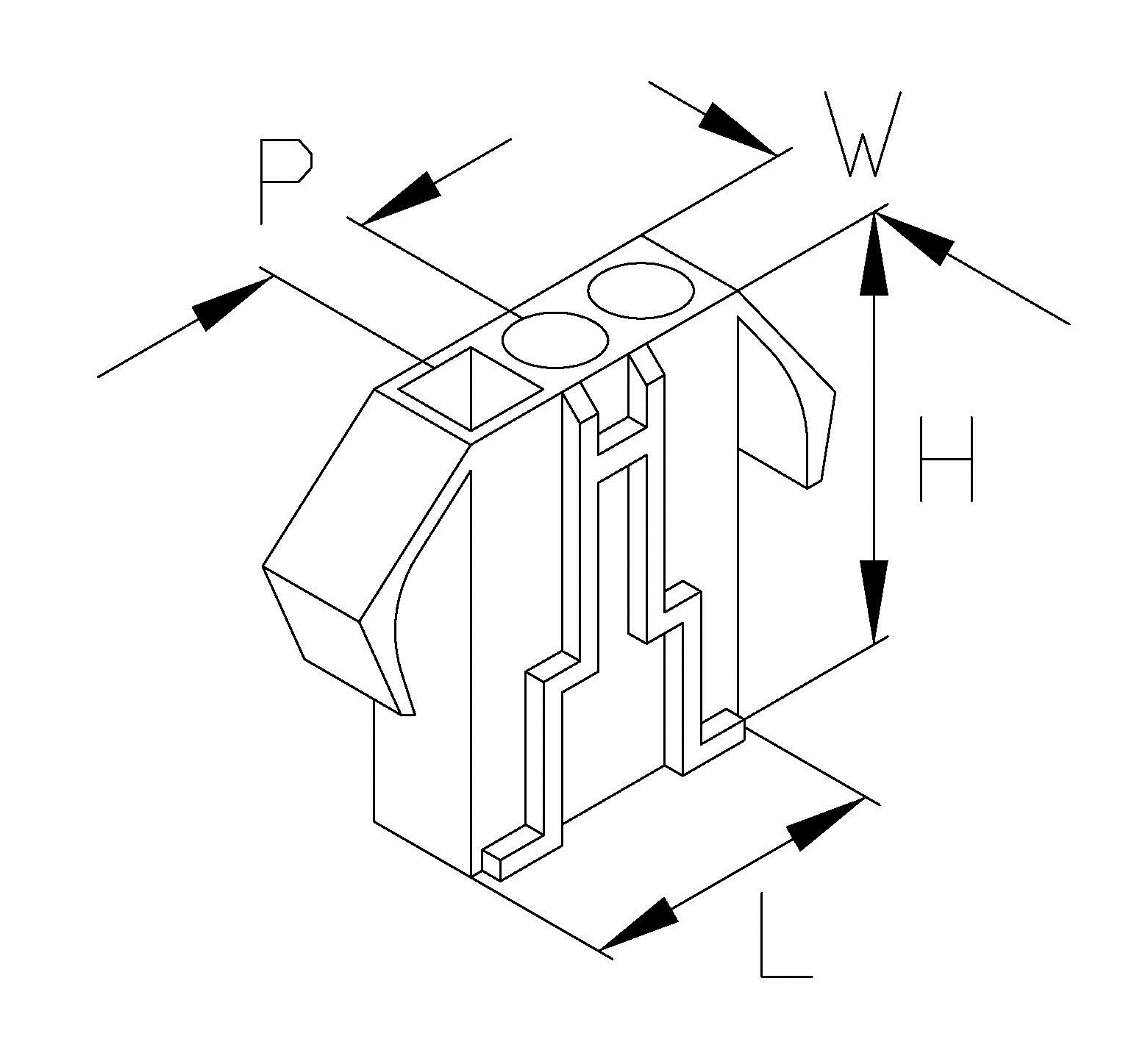

| MH1 | JP1030-3EL | 5.7 | 25.0 | 15.0 | 4.5 | - | - | - | - |

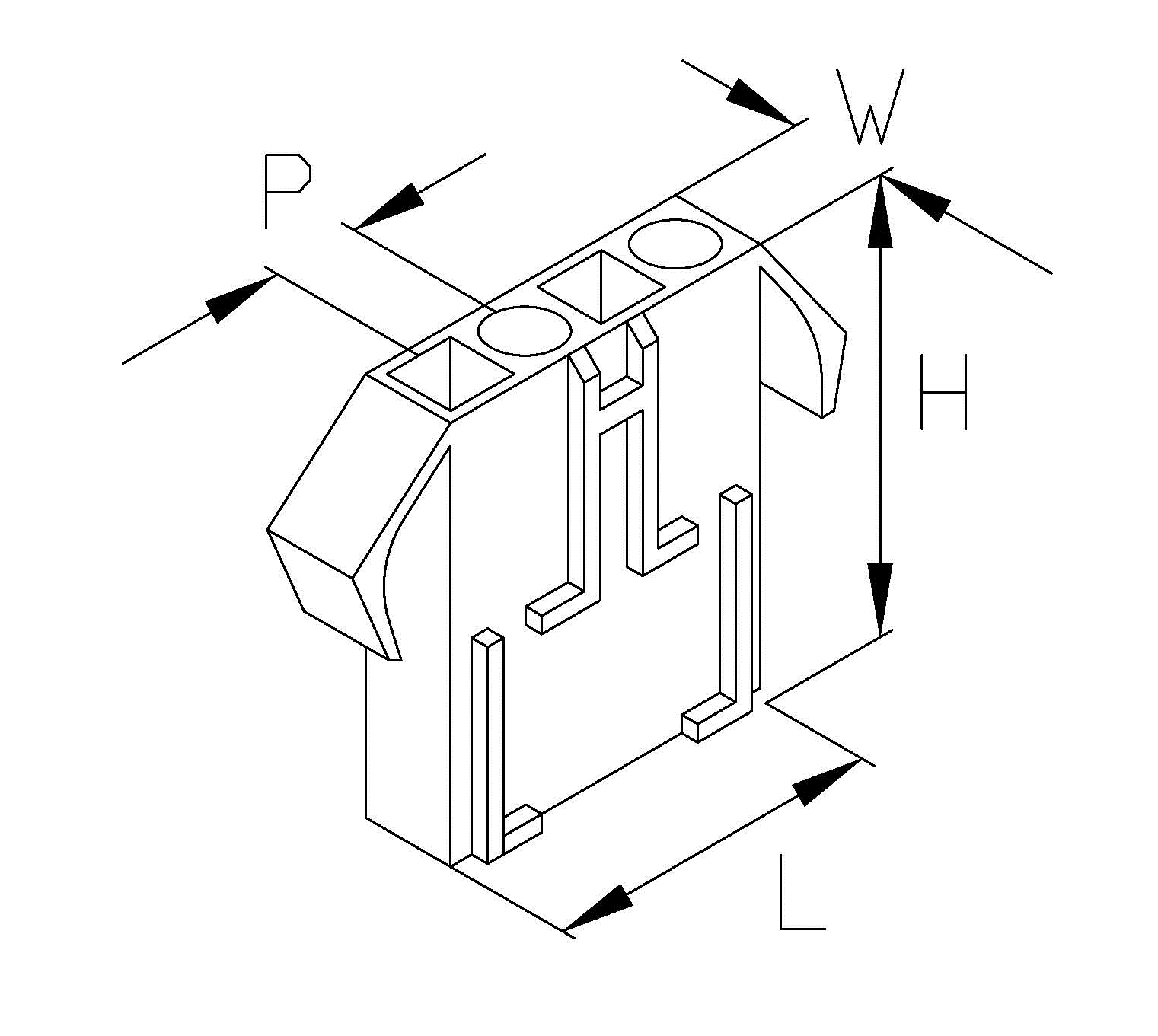

| MH2 | JP1030-4-1EL | 5.7 | 25.0 | 19.7 | 4.5 | - | - | - | - |

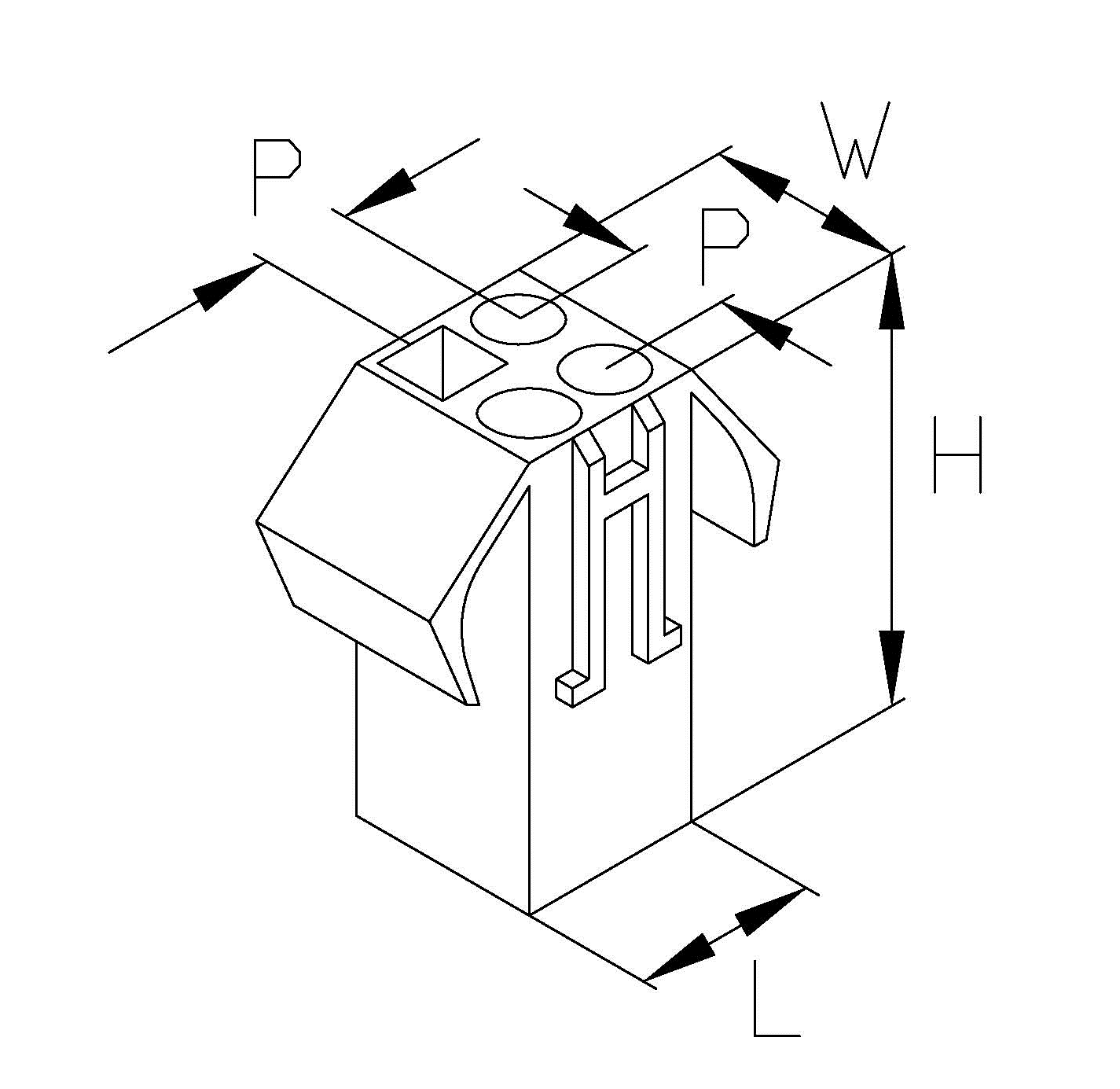

| MH3 | JP1030-4EL | 10.2 | 25.0 | 10.6 | 4.5 | - | - | - | - |

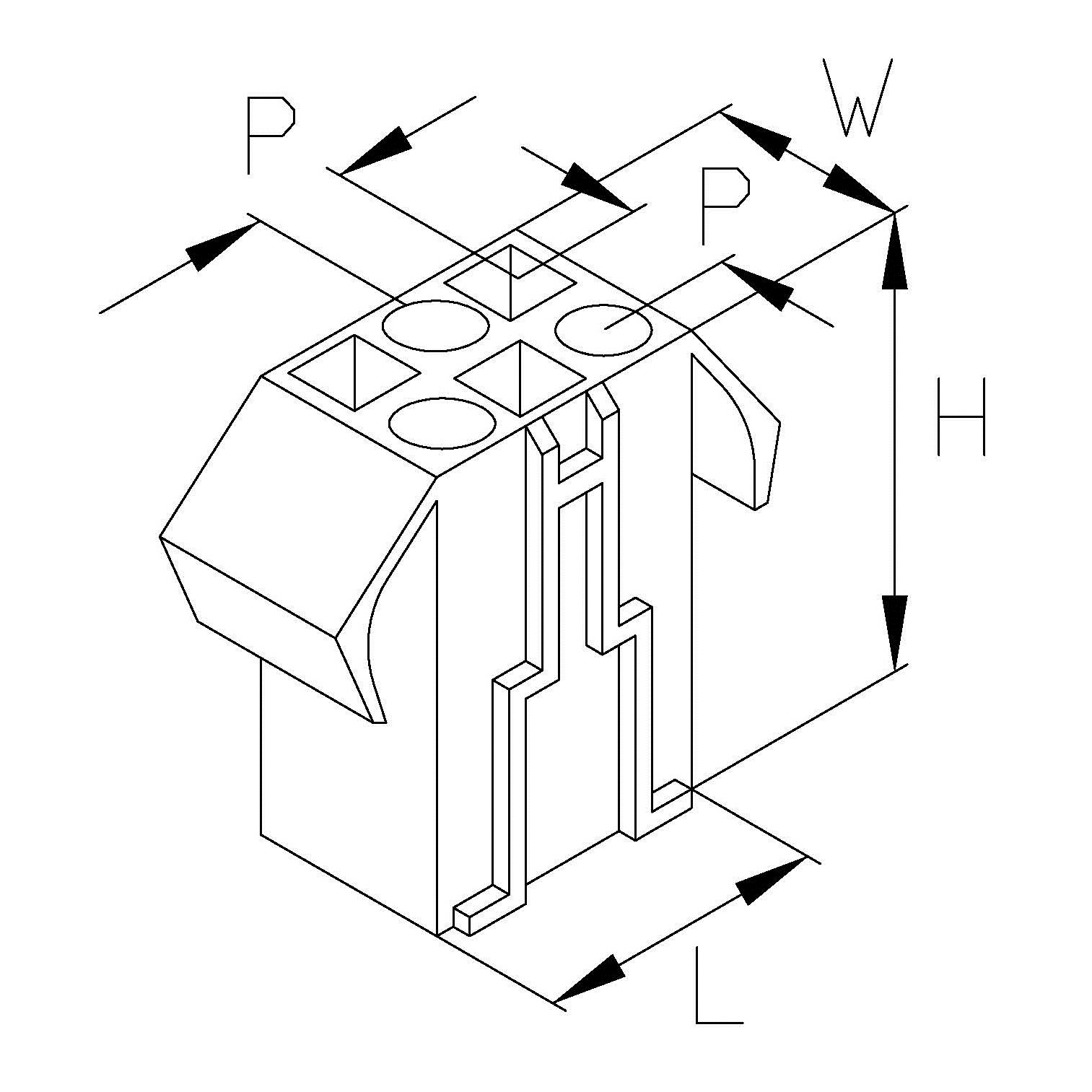

| MH4 | JP1030-6EL | 10.2 | 25.0 | 15.2 | 4.5 | - | - | - | - |

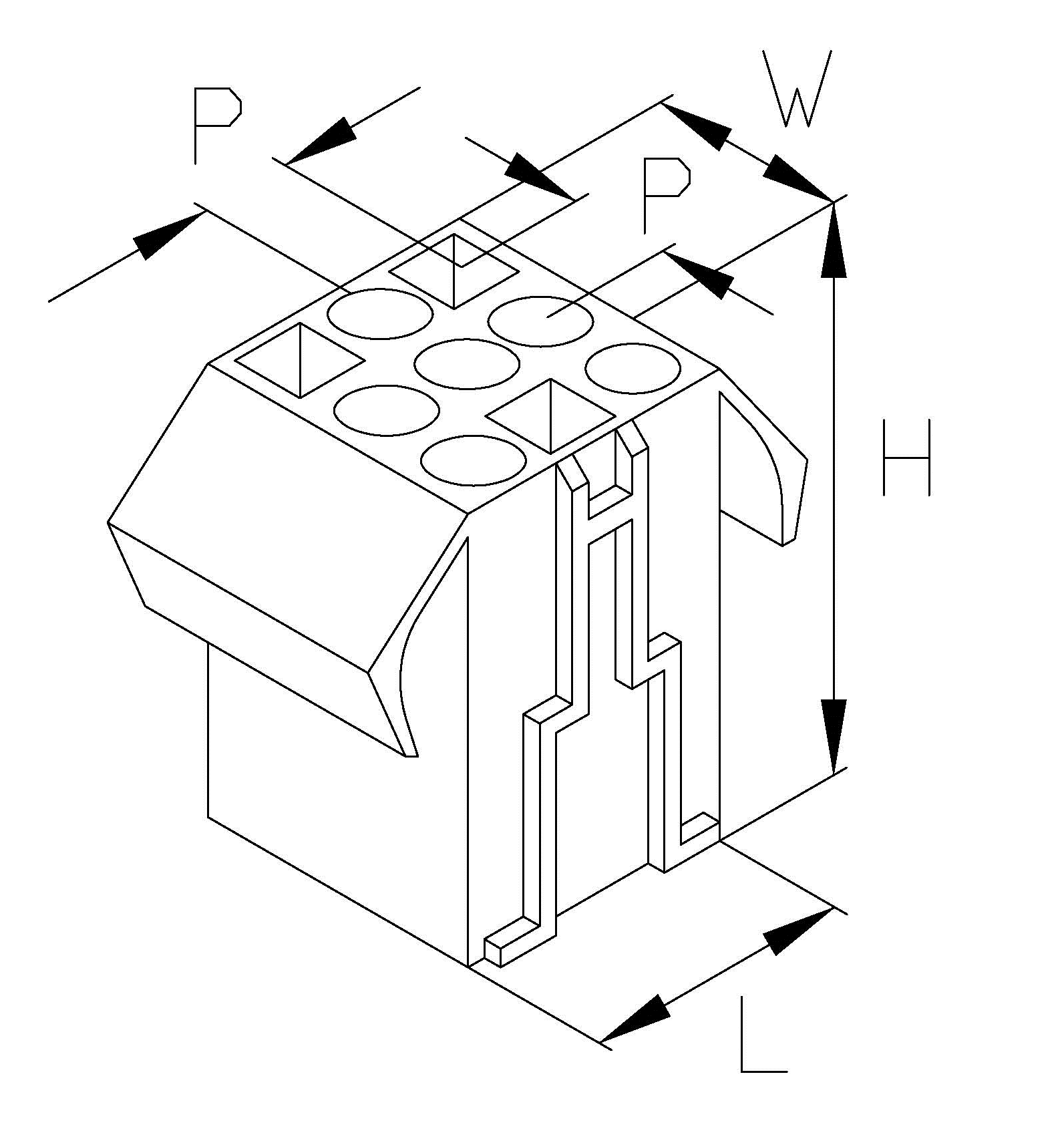

| MH5 | JP1030-9EL | 14.7 | 25.0 | 15.2 | 4.5 | - | - | - | - |

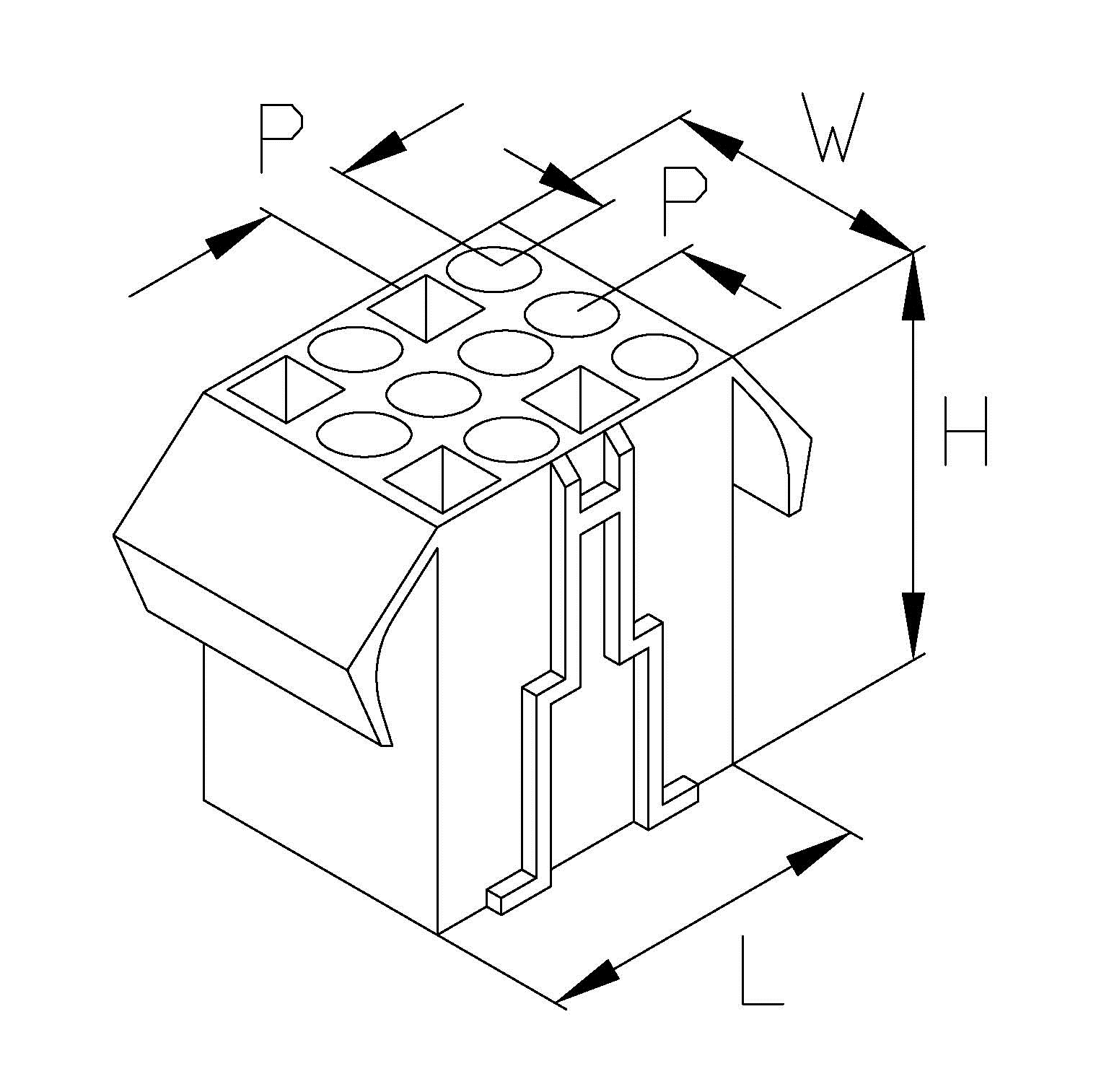

| MH6 | JP1030-12EL | 14.7 | 25.0 | 19.6 | 4.5 | - | - | - | - |

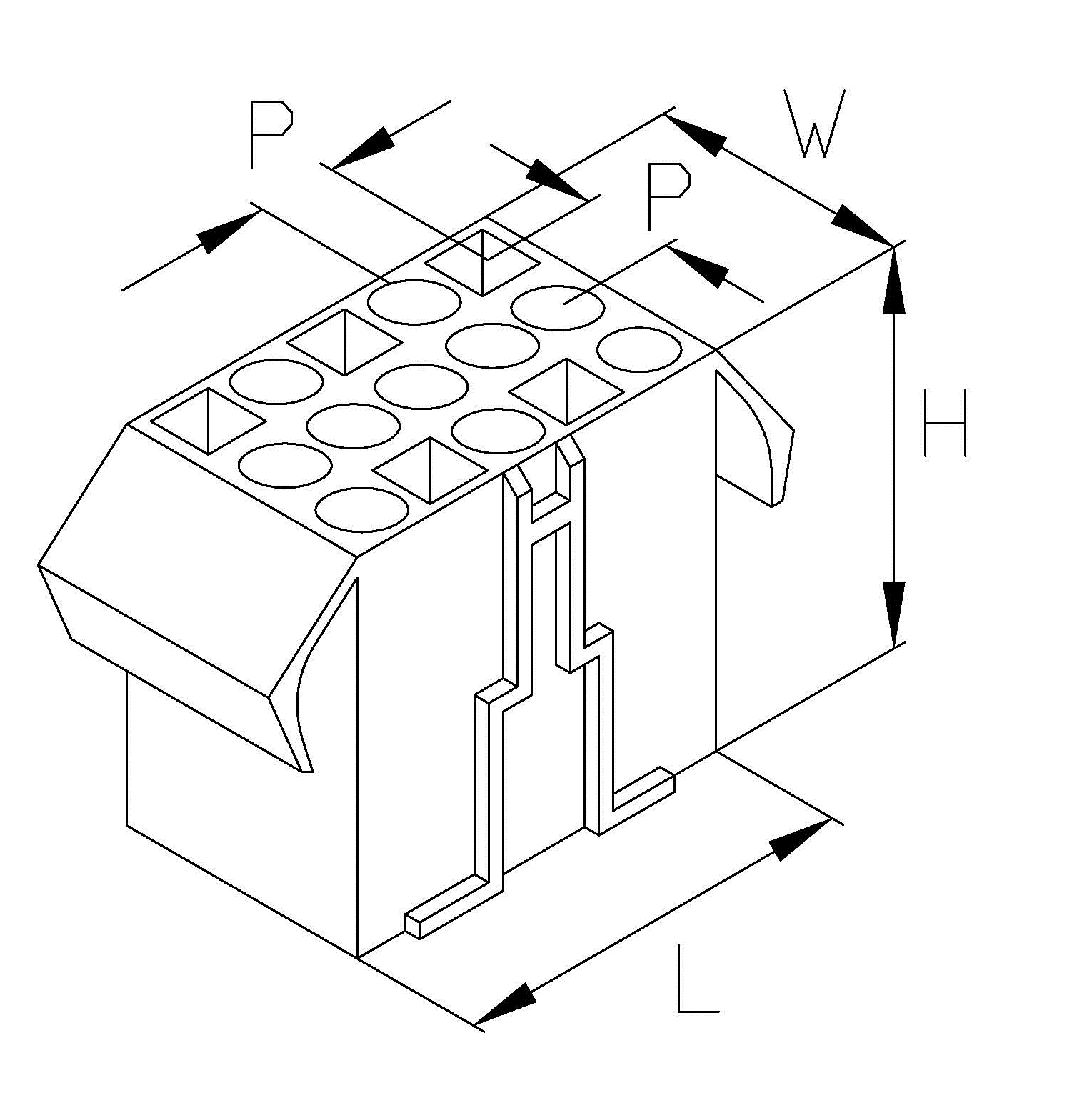

| MH7 | JP1030-15EL | 14.7 | 25.0 | 24.2 | 4.5 | - | - | - | - |
