- 1.58/P3.68 Female
Product Features
FT.png)
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||
| FT | J1158BS | - | - | 16.6 | - | 2.0 | - | 0.2 | - |
Optional Items Features
| FH | FH1 | FH2 | FH3 | FH4 | |
 |  |  |  |  | |
| FH5 | FH6 | FH7 | FH8 | FH9 | |
 |  |  | .png) |  | |
| FH-A | FH1-A | FH2-A | FH3-A | FH4-A | |
 |  |  |  |  | |
| FH5-A | FH6-A | FH7-A | FH8-A | ||
 |  |  |  |
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||
| FH | JP1158-1 | 5.0 | 20.7 | - | - | - | - | - | - |
| FH1 | JP1158-2 | 5.0 | 20.4 | 8.7 | 3.68 | - | - | - | - |

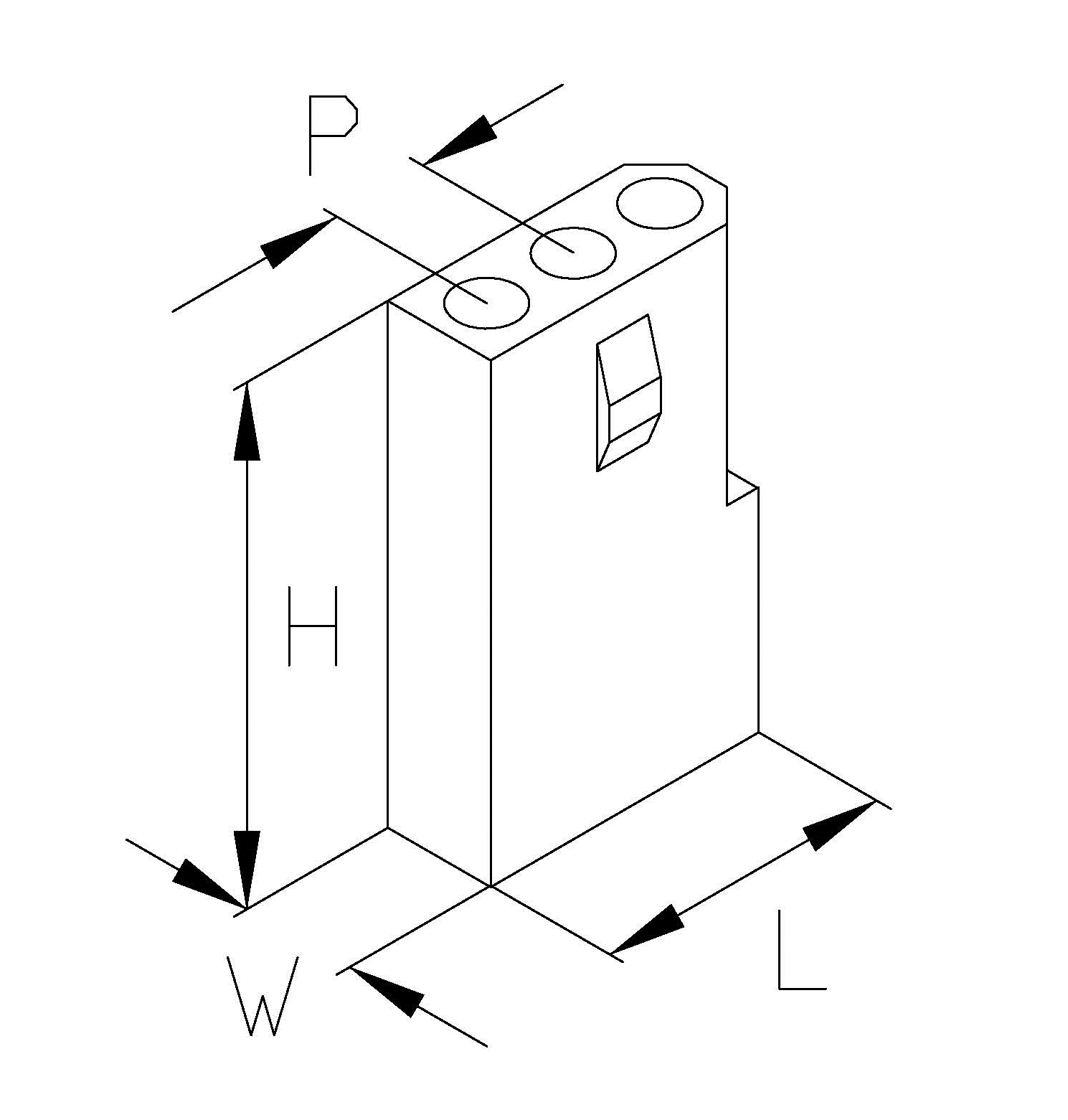

| FH2 | JP1158-3 | 5.0 | 20.4 | 12.5 | 3.68 | - | - | - | - |
| FH3 | JP1158-4 | 8.7 | 19.0 | 8.7 | 3.68 | - | - | - | - |
| FH4 | JP1158-4-1 | 5.0 | 20.0 | 16.2 | 3.68 | - | - | - | - |
| FH5 | JP1158-5 | 4.8 | 19.8 | 19.8 | 3.68 | - | - | - | - |
| FH6 | JP1158-6 | 12.5 | 20.0 | 8.7 | 3.68 | - | - | - | - |
| FH7 | JP1158-9 | 12.7 | 20.6 | 12.7 | 3.68 | - | - | - | - |
| FH8 | JP1158-12 | 12.6 | 20.6 | 16.0 | 3.68 | - | - | - | - |
| FH9 | JP1158-15 | 12.7 | 20.7 | 20.0 | 3.68 | - | - | - | - |
| FH-A | JP1158-2K | 4.9 | 20.6 | 8.6 | 3.68 | - | - | - | - |
| FH1-A | JP1158-3K | 5.0 | 20.2 | 12.5 | 3.68 | - | - | - | - |
| FH2-A | JP1158-4K | 8.6 | 19.2 | 8.6 | 3.68 | - | - | - | - |
| FH3-A | JP1158-4K-1 | 5.0 | 20.2 | 16.0 | 3.68 | - | - | - | - |
| FH4-A | JP1158-5K | 5.0 | 19.8 | 19.7 | 3.68 | - | - | - | - |

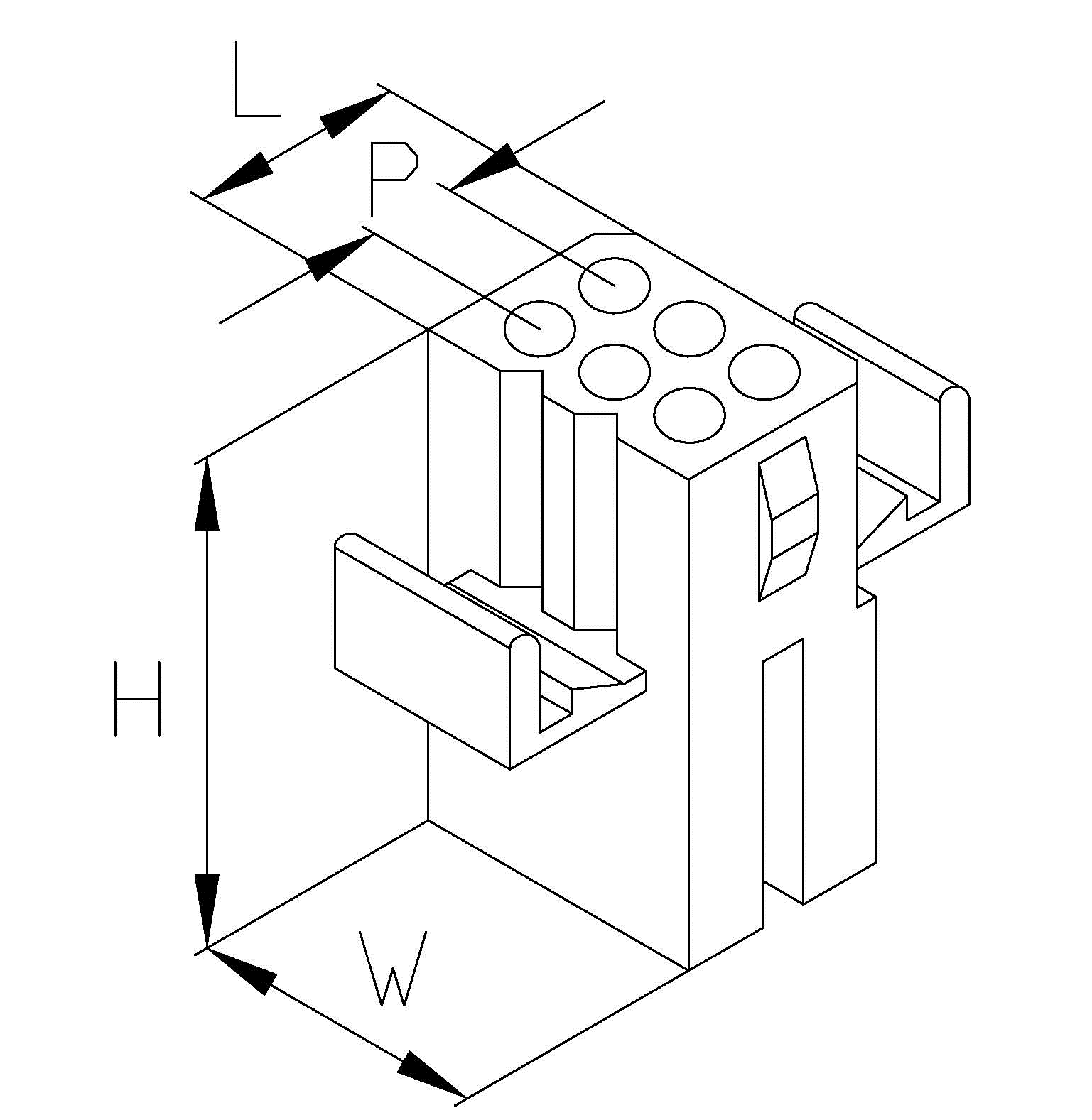

| FH5-A | JP1158-6K | 12.5 | 19.8 | 8.8 | 3.68 | - | - | - | - |
| FH6-A | JP1158-9K | 12.7 | 20.6 | 12.7 | 3.68 | - | - | - | - |
| FH7-A | JP1158-12K | 12.7 | 20.6 | 16.2 | 3.68 | - | - | - | - |

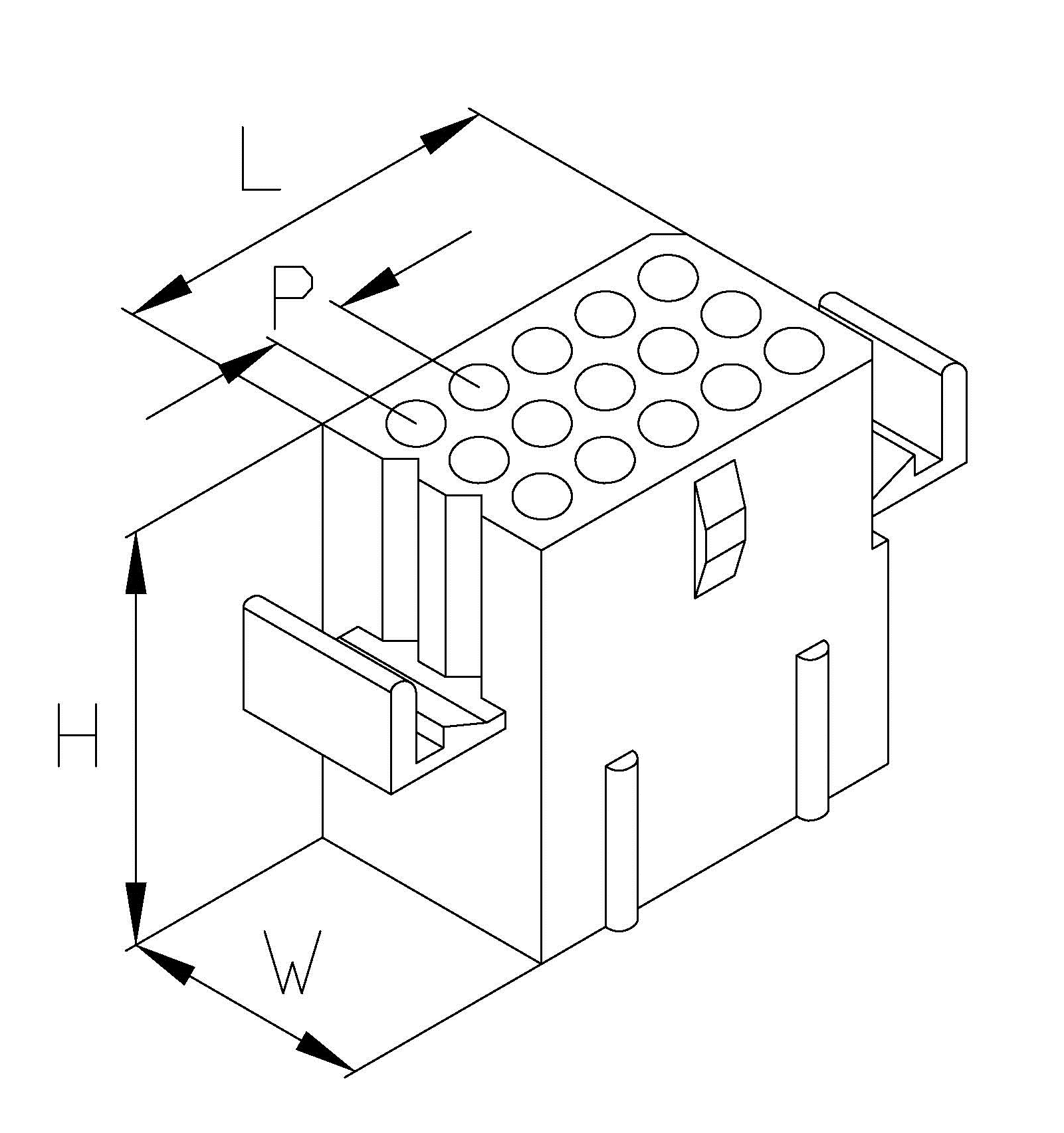

| FH8-A | JP1158-15K | 12.7 | 20.7 | 19.9 | 3.68 | - | - | - | - |
