- 1.58/P4.8 Female
Product Features
FH.png)
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||

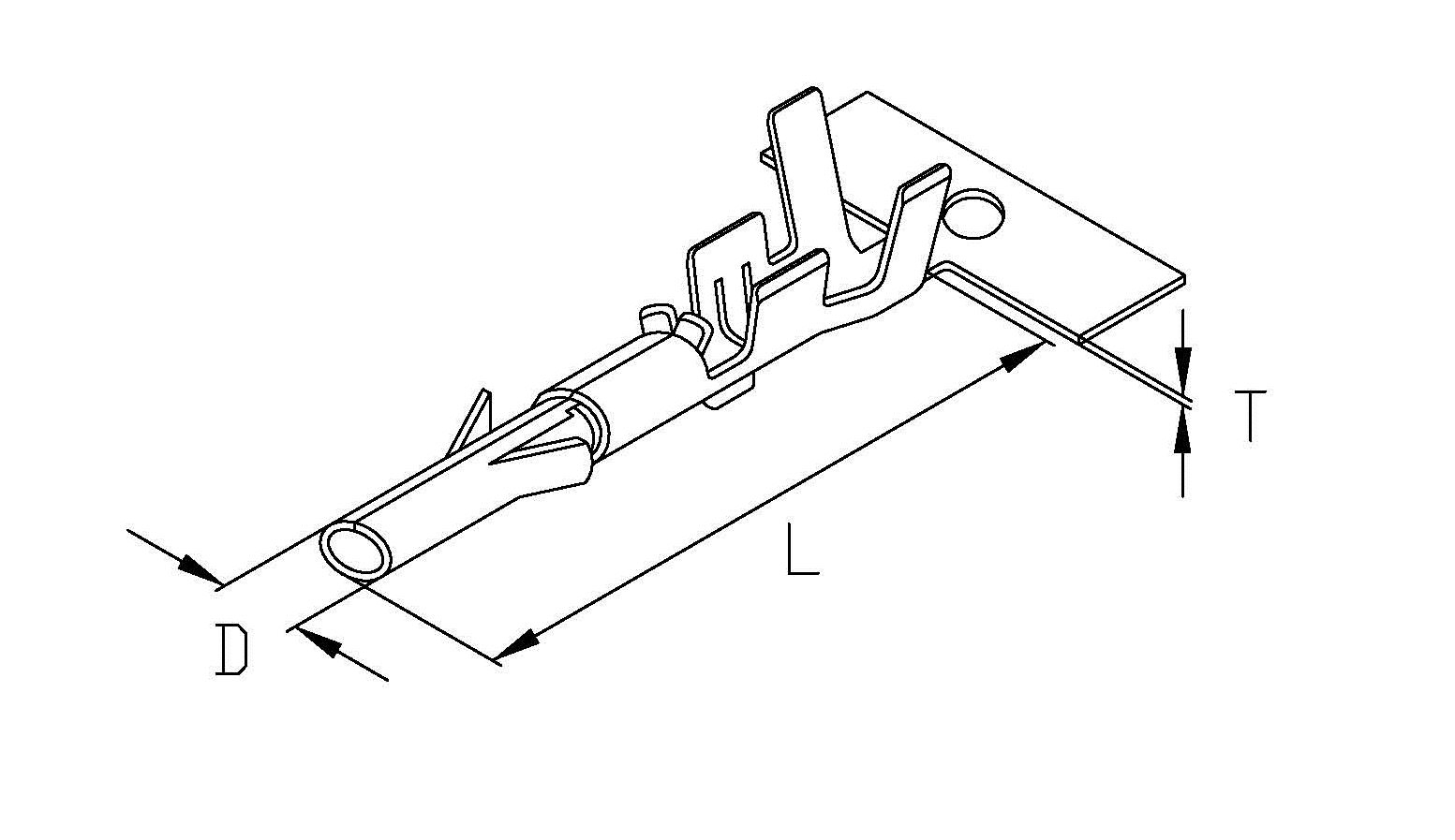

| FT | J1158BS | - | - | 16.6 | - | 2.0 | - | 0.2 | - |
Optional Items Features
| FH | FH1 | FH2 | FH3 | FH4 |
 |  |  |  |  |
| FH5 | FH6 | |||
 |  |
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||

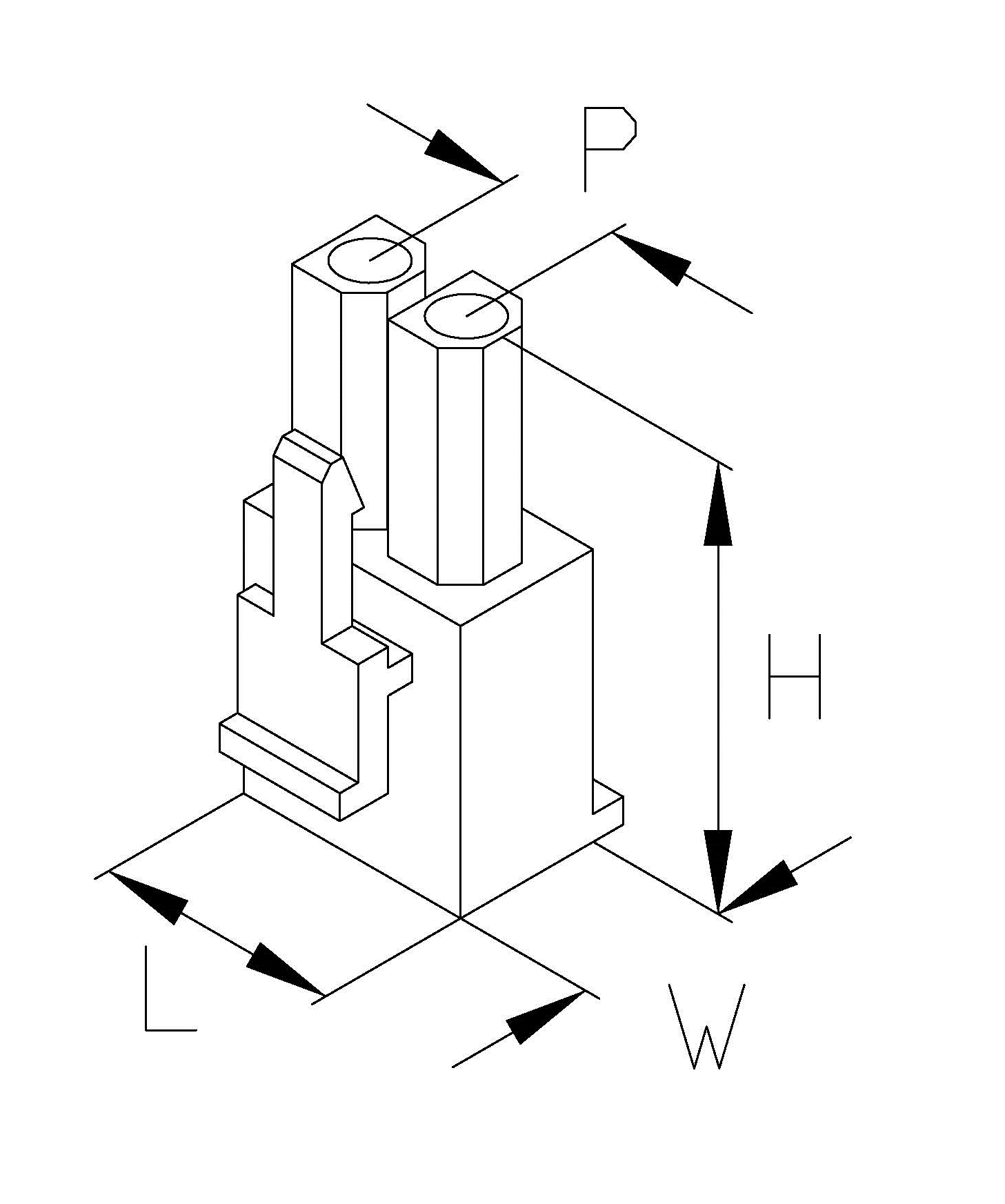

| FH | JP1158-2A | 7.2 | 25.3 | 12.2 | 4.8 | - | - | - | - |

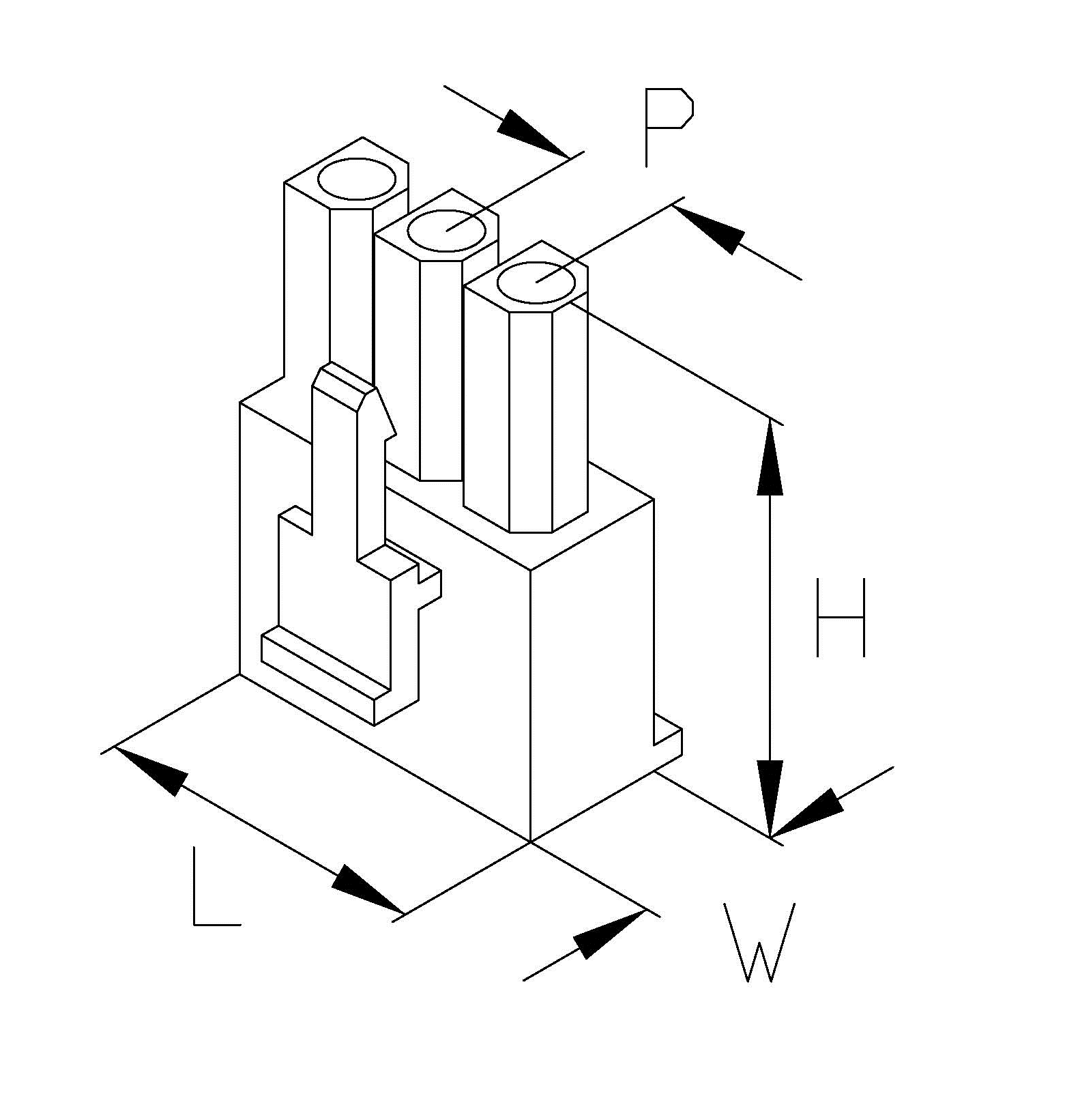

| FH1 | JP1158-3A | 7.2 | 25.0 | 16.8 | 4.8 | - | - | - | - |

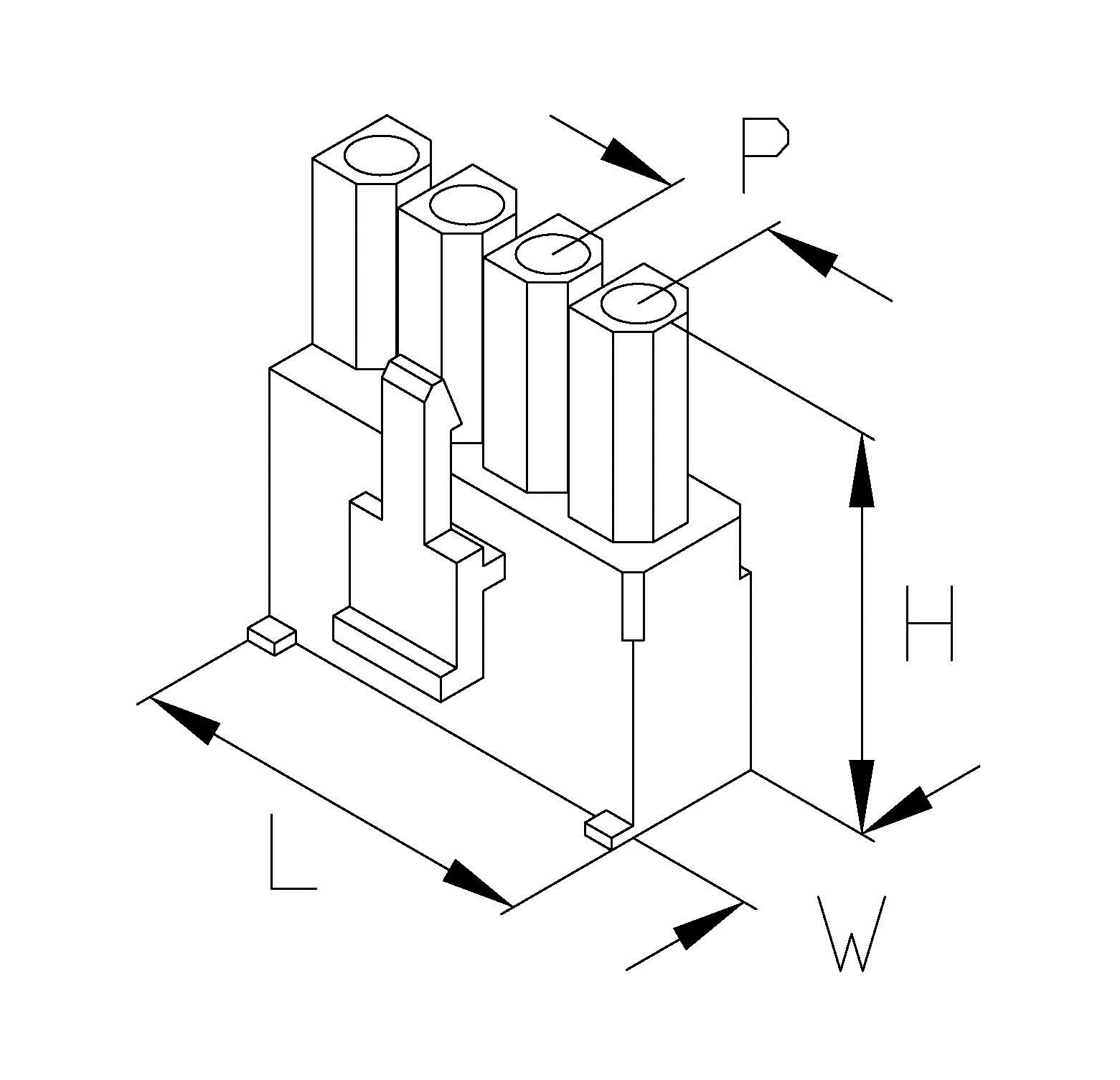

| FH2 | JP1158-4A | 7.2 | 24.9 | 21.6 | 4.8 | - | - | - | - |

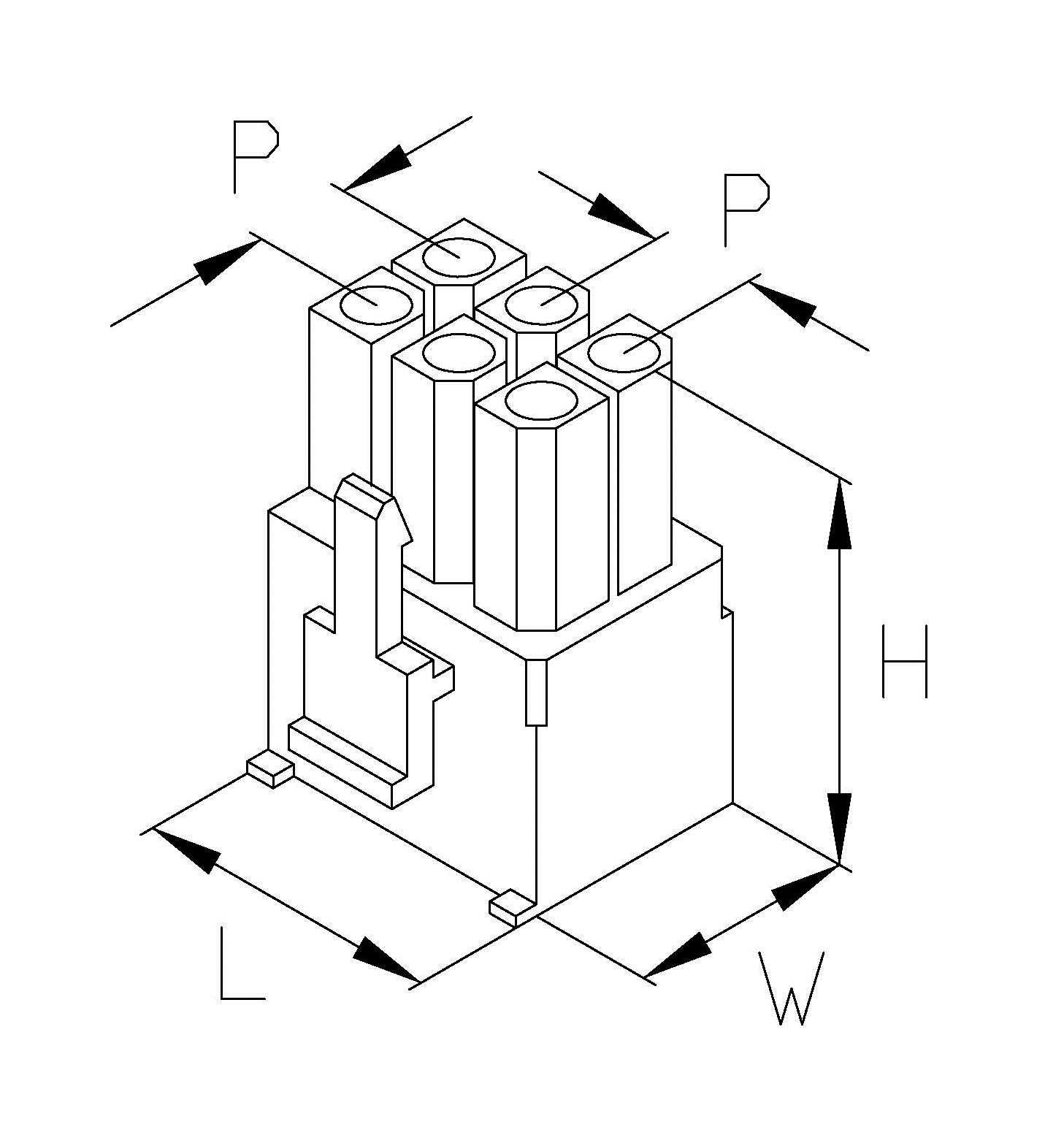

| FH3 | JP1158-6A | 12.0 | 24.9 | 16.8 | 4.8 | - | - | - | - |

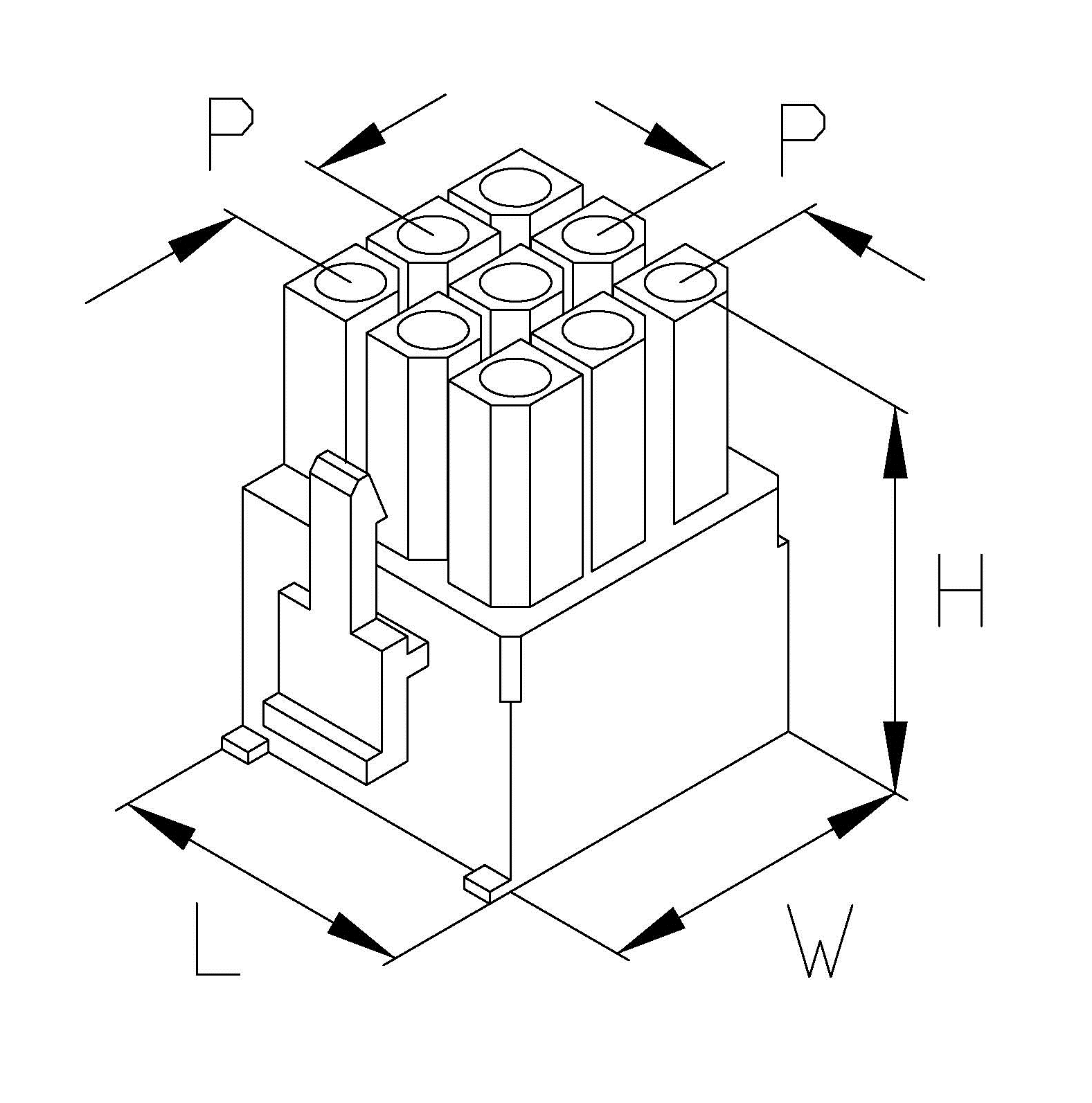

| FH4 | JP1158-9A | 16.8 | 25.1 | 16.8 | 4.8 | - | - | - | - |

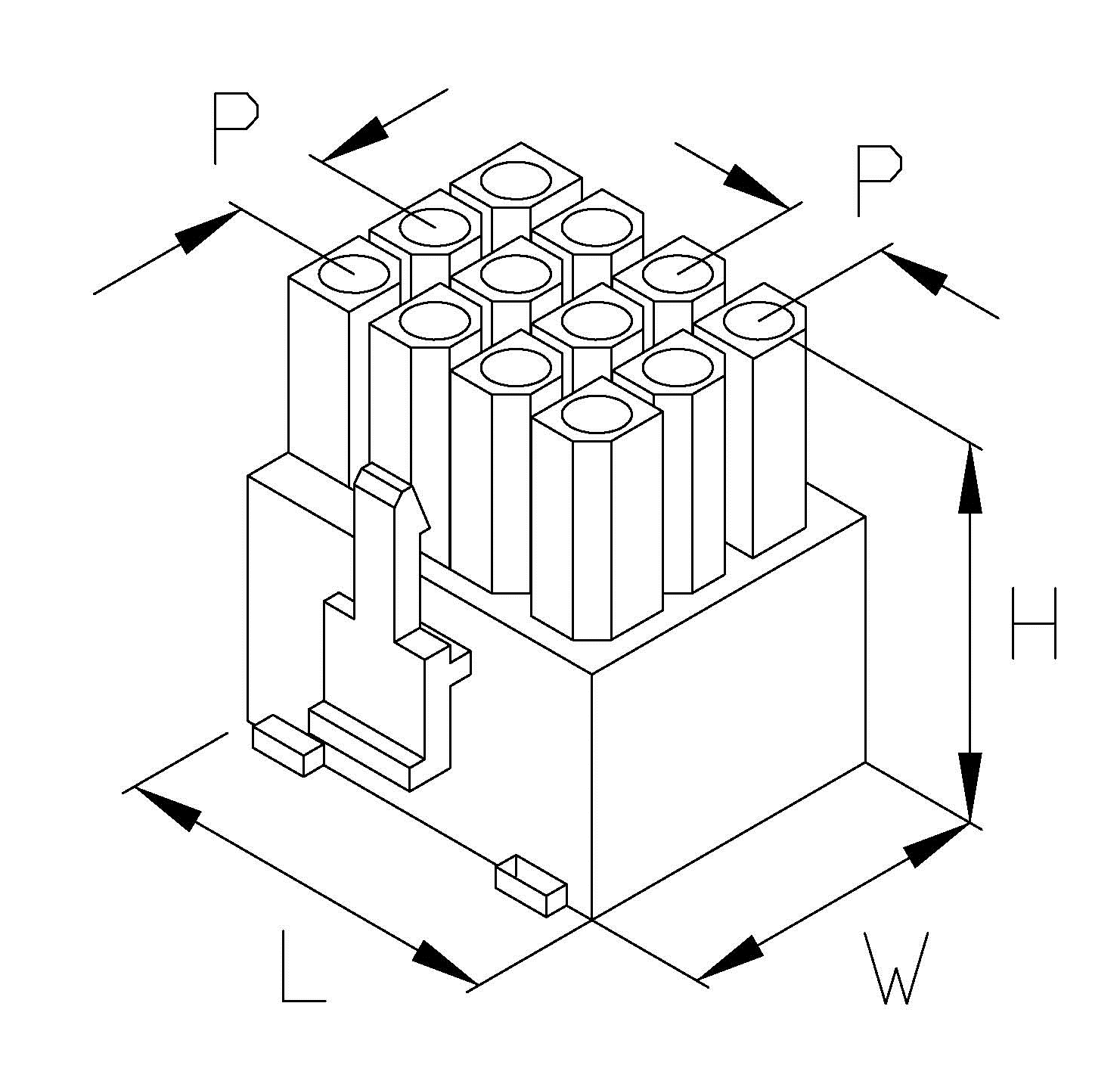

| FH5 | JP1158-12A | 16.8 | 25.6 | 21.6 | 4.8 | - | - | - | - |

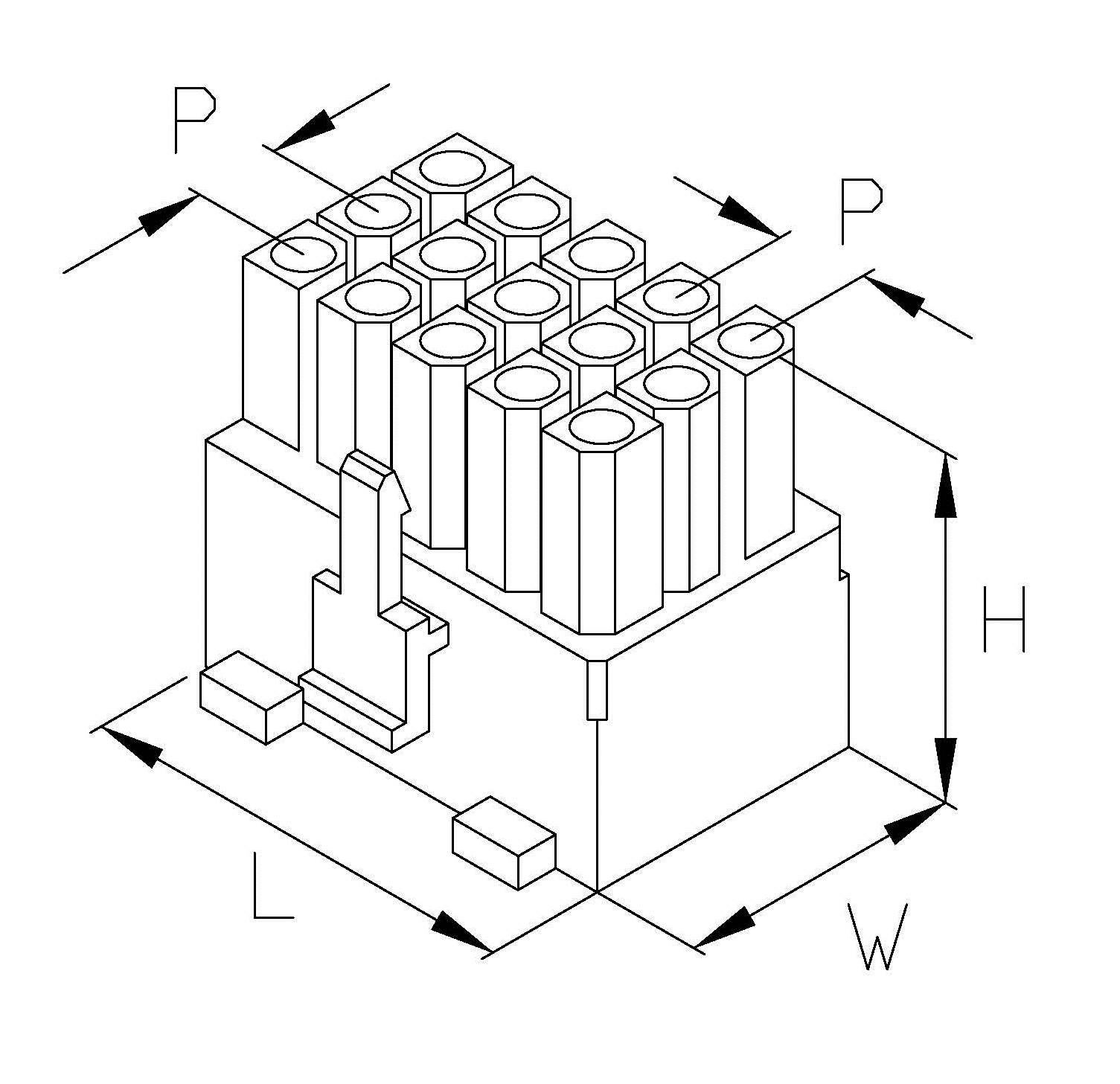

| FH6 | JP1158-15A | 16.8 | 25.1 | 26.5 | 4.8 | - | - | - | - |
