- 1.58/P4.8 Male
Product Features
MT.png)
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||

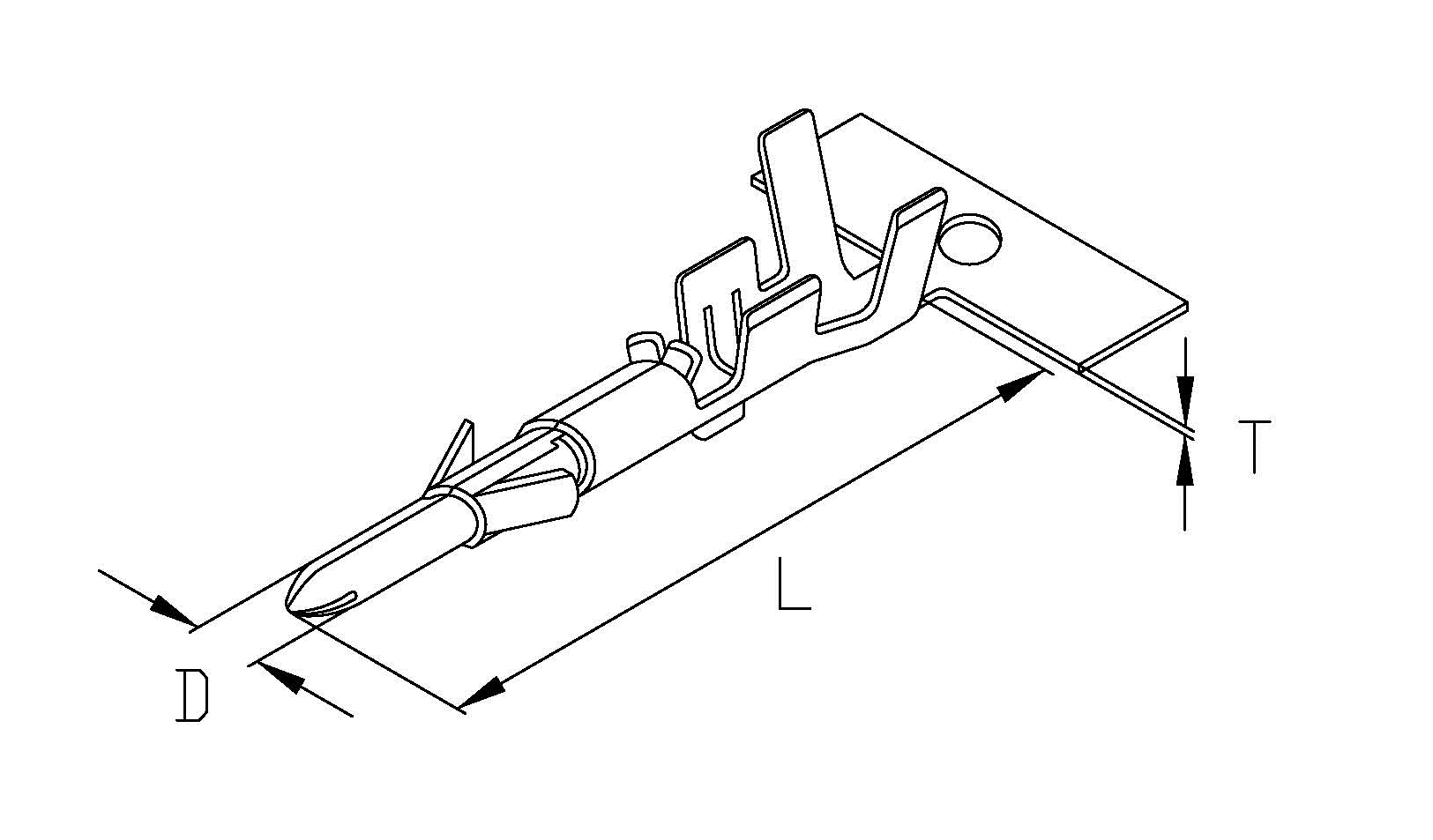

| MT | J1058BS | - | - | 16.8 | - | 1.56 | - | 0.2 | - |
Optional Items Features
| MH | MH1 | MH2 | MH3 | MH4 |
 |  |  |  |  |
| MH5 | MH6 | |||
 |  |
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||

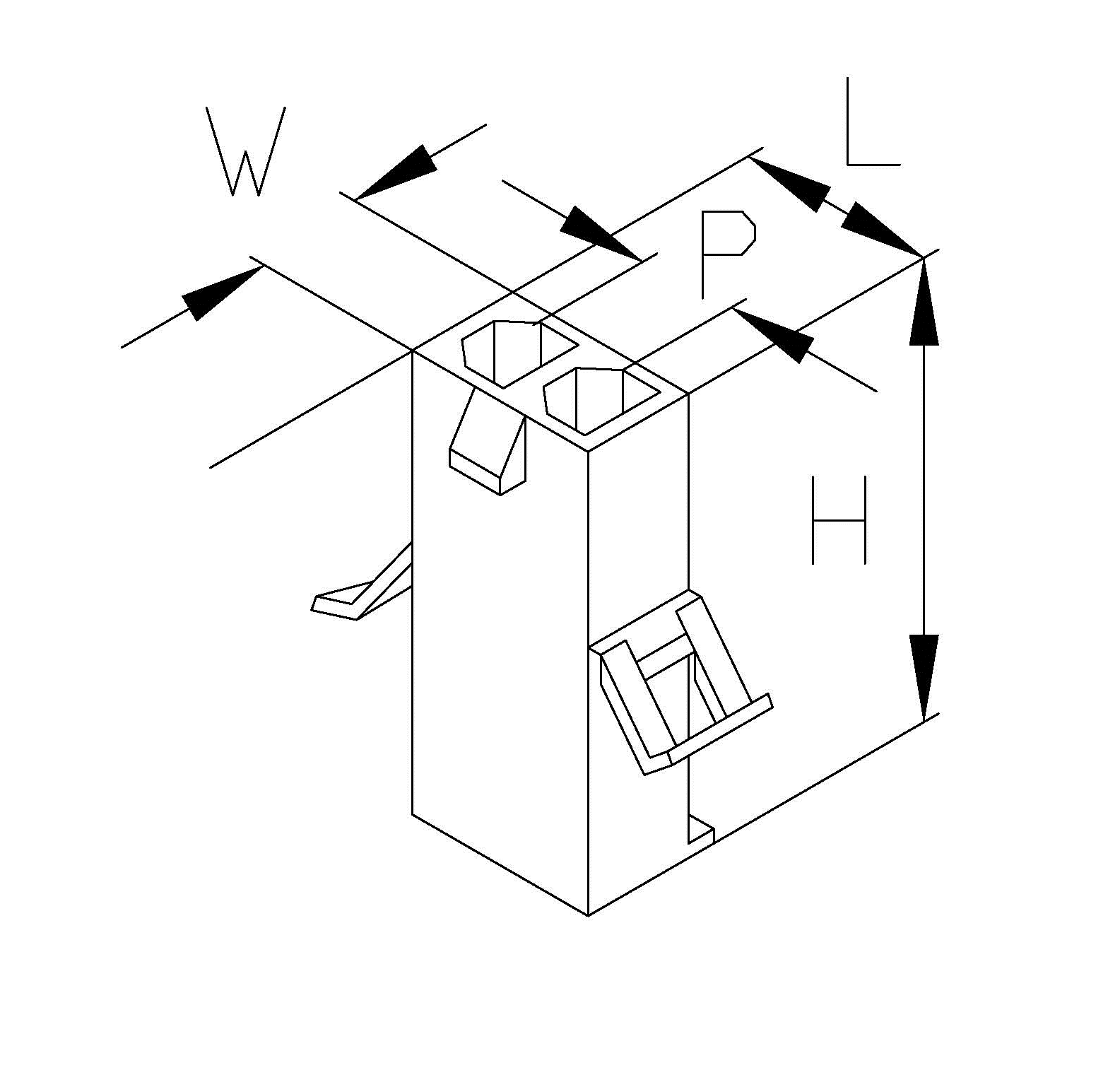

| MH | JP1058-2A | 7.2 | 25.7 | 12.1 | 4.8 | - | - | - | - |

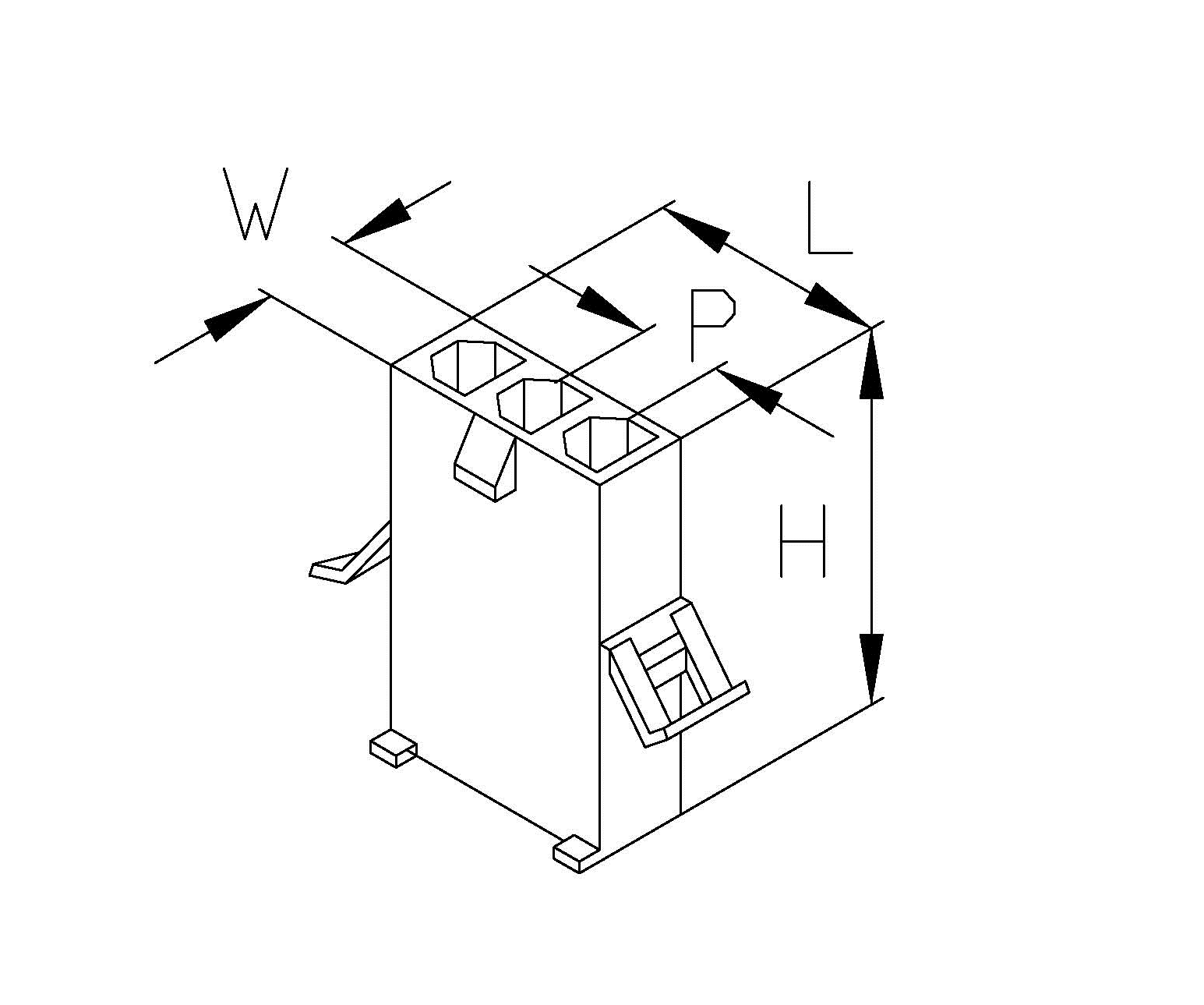

| MH1 | JP1058-3A | 7.2 | 25.7 | 16.8 | 4.8 | - | - | - | - |

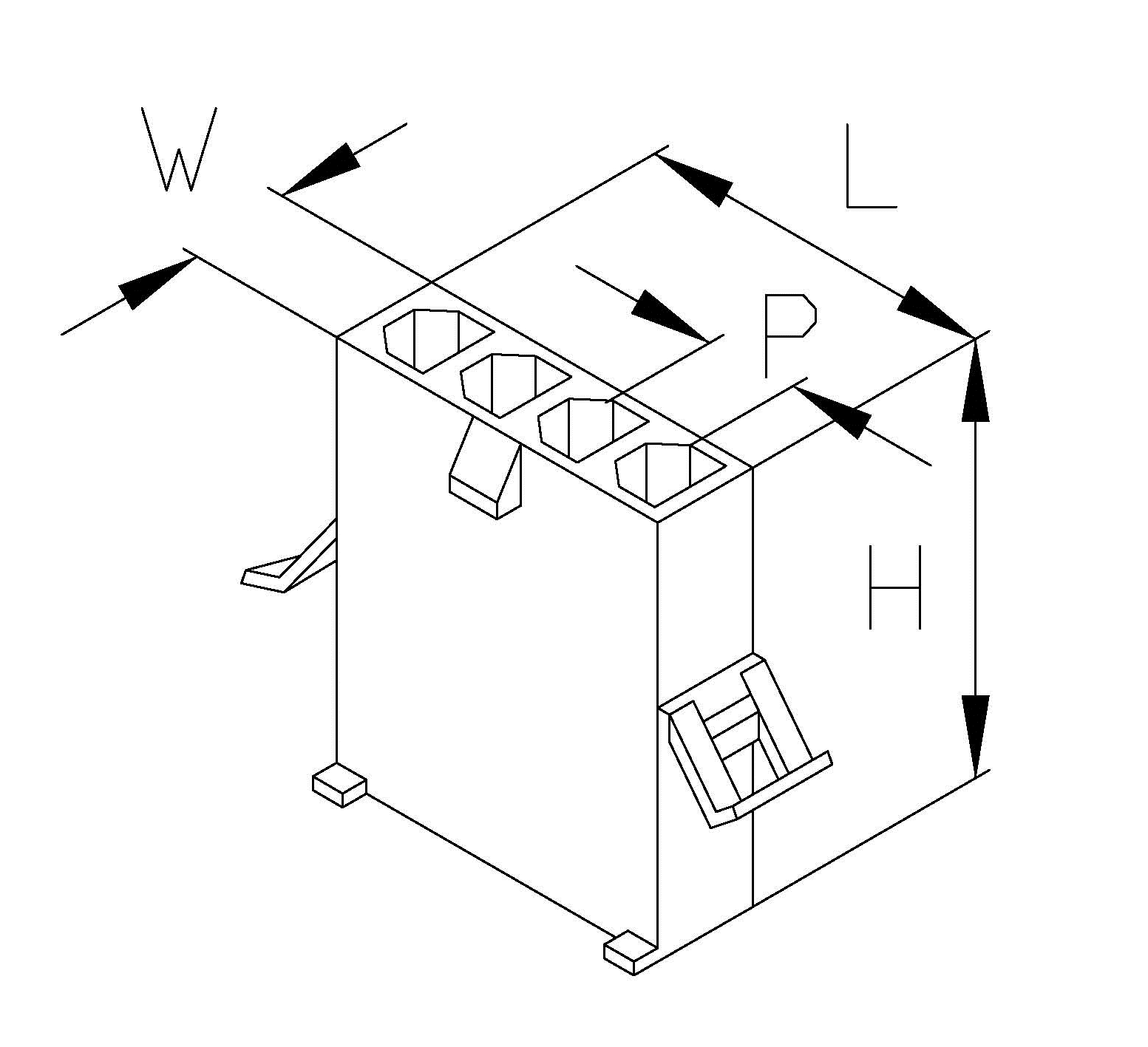

| MH2 | JP1058-4A | 7.2 | 25.7 | 21.6 | 4.8 | - | - | - | - |

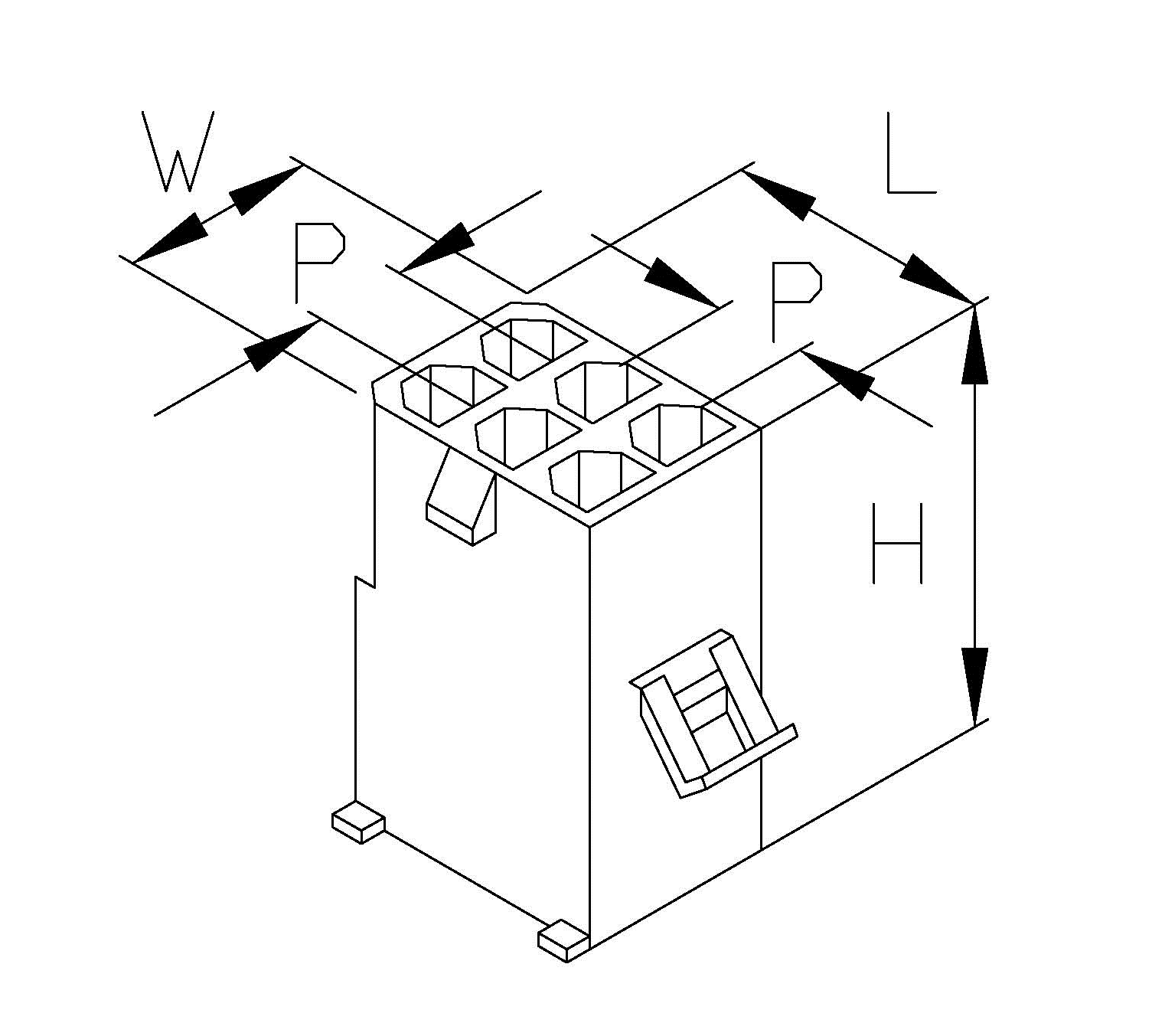

| MH3 | JP1058-6A | 12.0 | 25.4 | 16.8 | 4.8 | - | - | - | - |

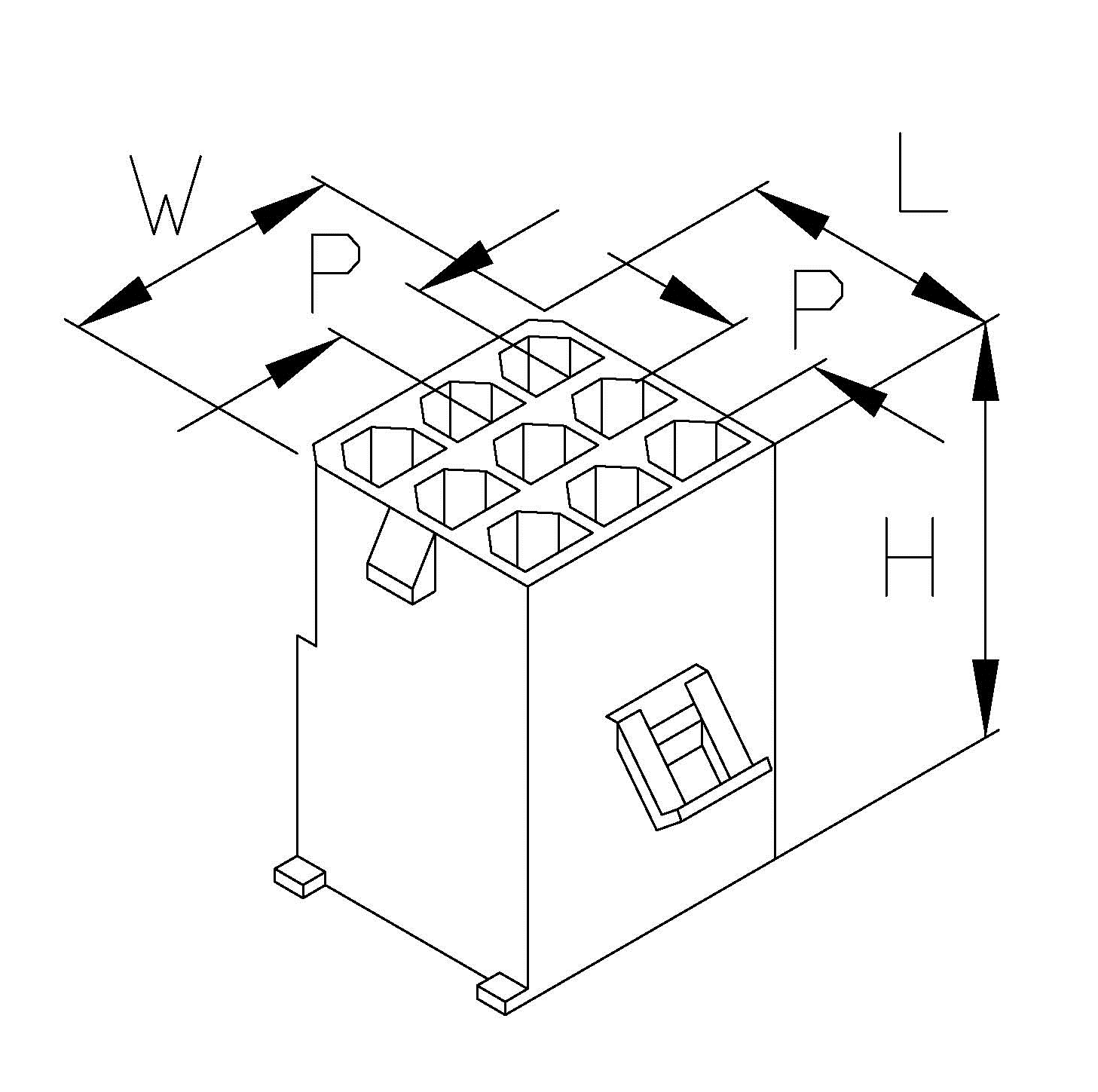

| MH4 | JP1058-9A | 7.5 | 19.2 | 18.7 | 3.68 | - | - | - | - |

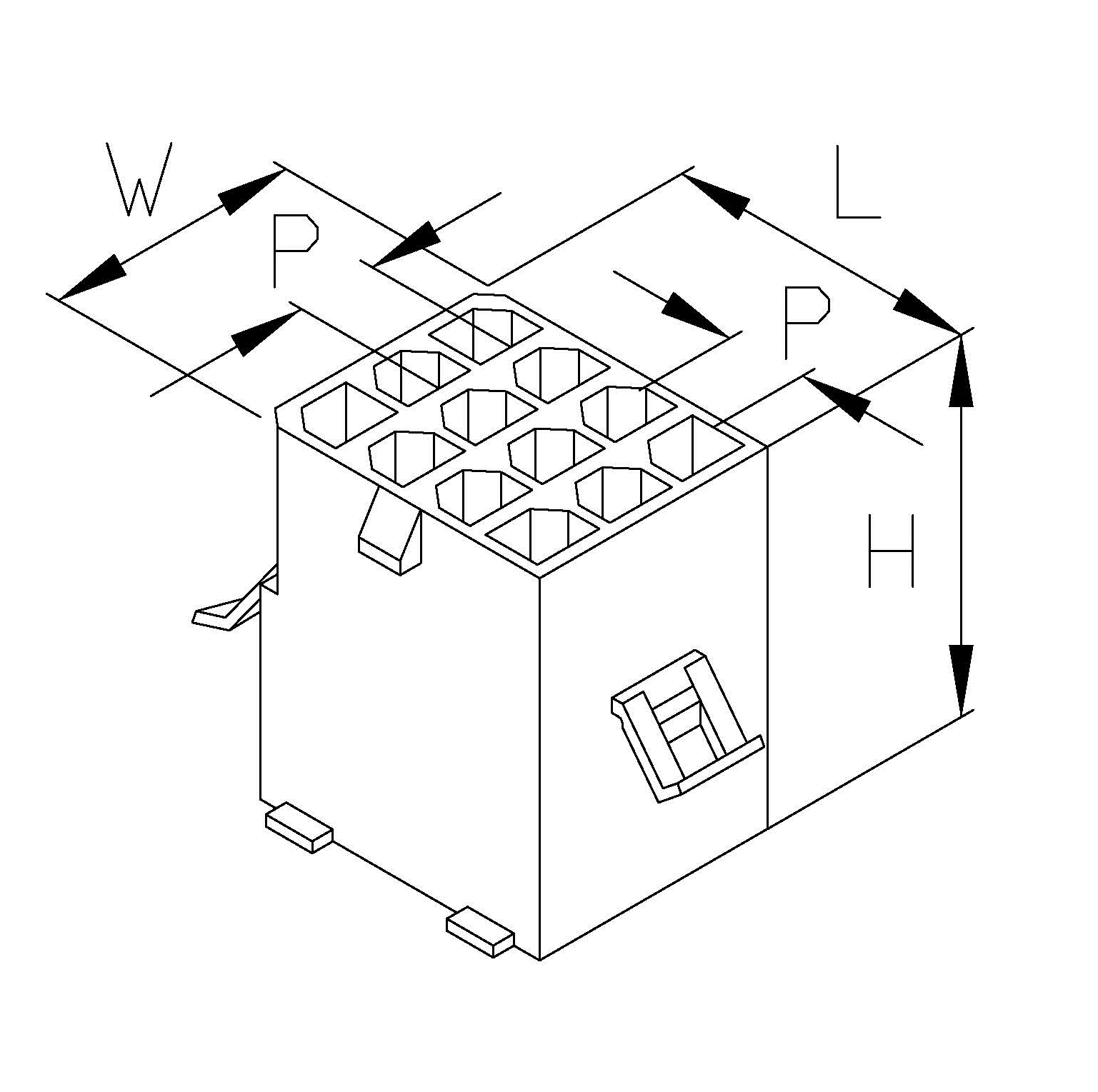

| MH5 | JP1058-12A | 16.9 | 25.6 | 21.7 | 4.8 | - | - | - | - |

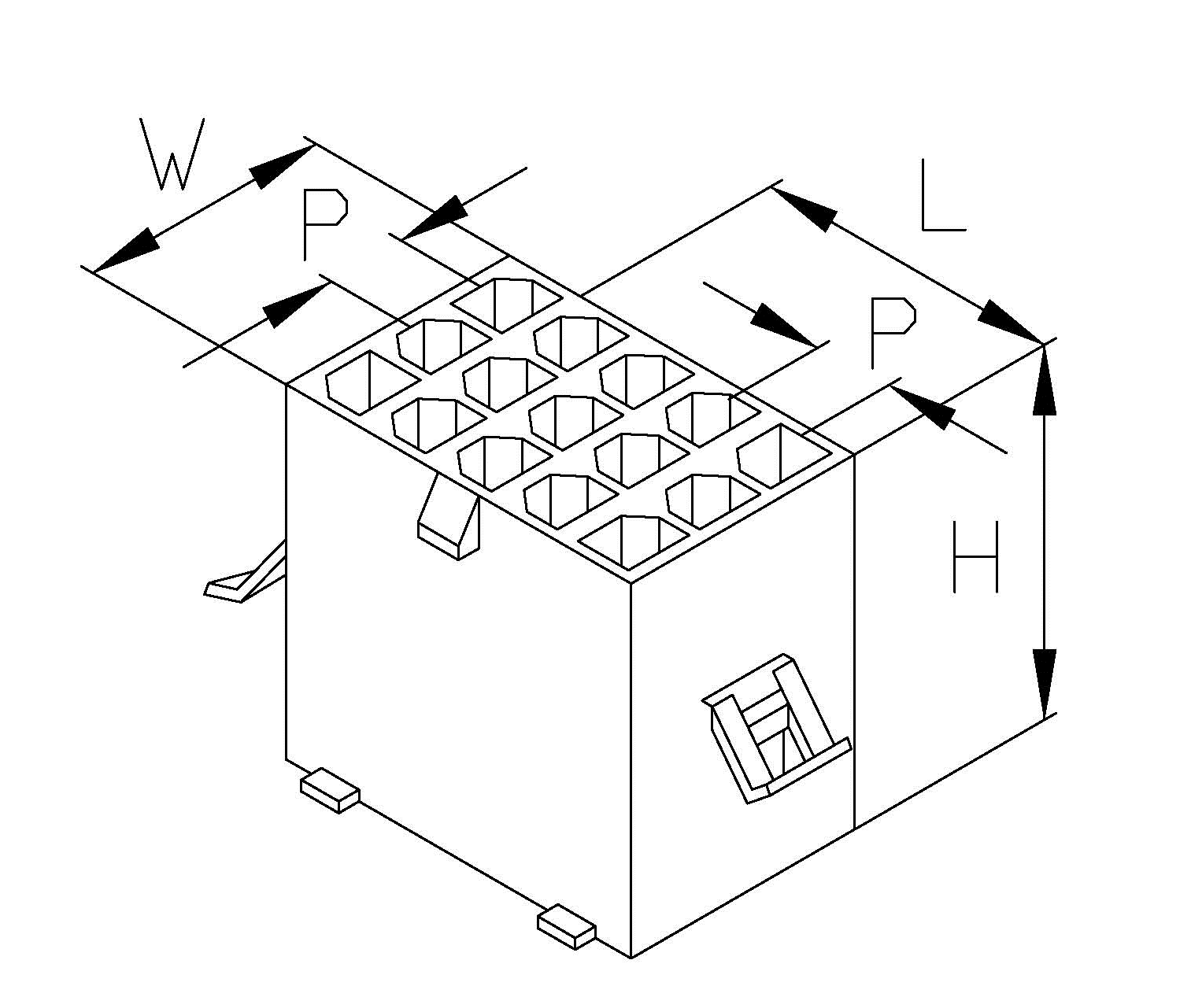

| MH6 | JP1058-15A | 16.8 | 25.4 | 26.4 | 4.8 | - | - | - | - |
