110-Male

 Product Features
MT MT1
J1631BS J1631BS-S
圖示代碼 產品編號 W H L P D E T 詳圖 配合料號
尺寸 ( 單位 mm )

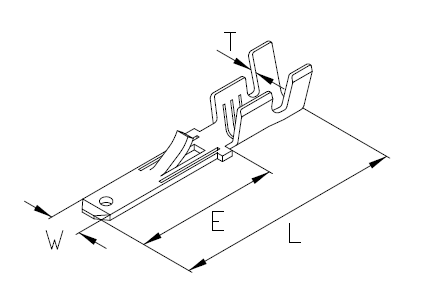

MT J1631BS 2.8 - 20.7 - - 13.0 0.5 -
MT1 J1631BS-S 2.8 - 20.7 - - 13.0 0.5 -

 Optional Items Features
MH MH1 MH2 MH3
JP1631-3 JP1631-4 JP1631-6 JP1631-9
MH-A MH1-A MH2-A MH3-A MH4-A
JP1631-2K JP1631-3K JP1631-4K JP1631-6K JP1631-9K
圖示代碼 產品編號 W H L P D E T 詳圖 配合料號
尺寸 ( 單位 mm )

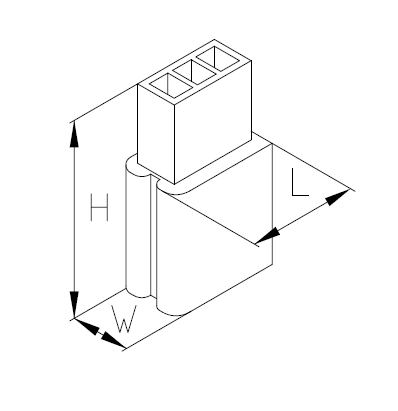

MH JP1631-3 9.4 32.0 17.7 - - - - -
MH1 JP1631-4 14.4 32.0 13.6 - - - - -

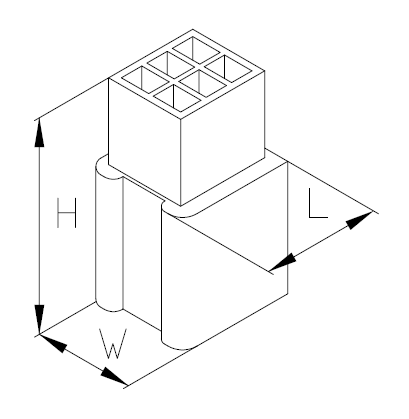

MH2 JP1631-6 14.4 32.0 17.7 - - - - -

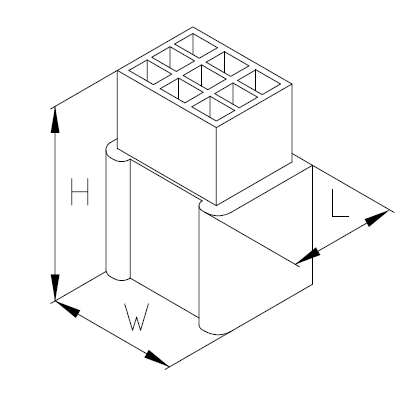

MH3 JP1631-9 19.4 32.0 17.7 - - - - -

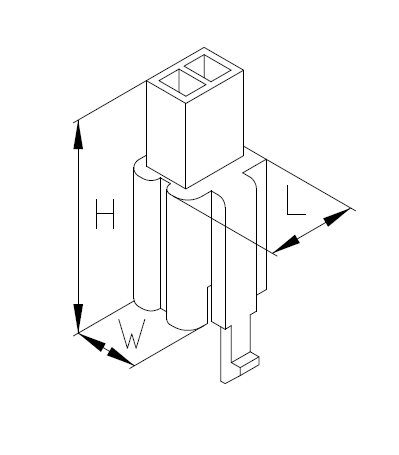

MH-A JP1631-2K 9.3 30.0 13.6 - - - - -
MH1-A JP1631-3K 9.3 30.0 17.7 - - - - -

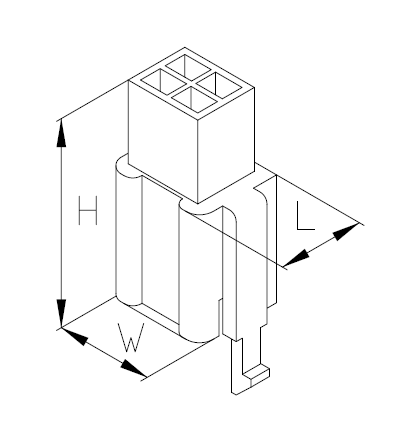

MH2-A JP1631-4K 14.4 30.0 13.6 - - - - -

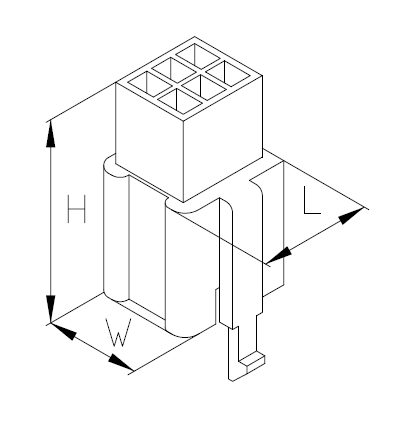

MH3-A JP1631-6K 14.4 30.0 17.5 - - - - -

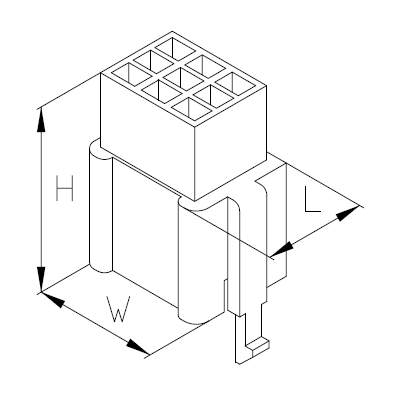

MH4-A JP1631-9K 19.4 30.0 17.7 - - - - -
