2.0/P6.2 Male

 Product Features
MT MT1
J2020BS J20201BS
圖示代碼 產品編號 W H L P D E T 詳圖 配合料號
尺寸 ( 單位 mm )

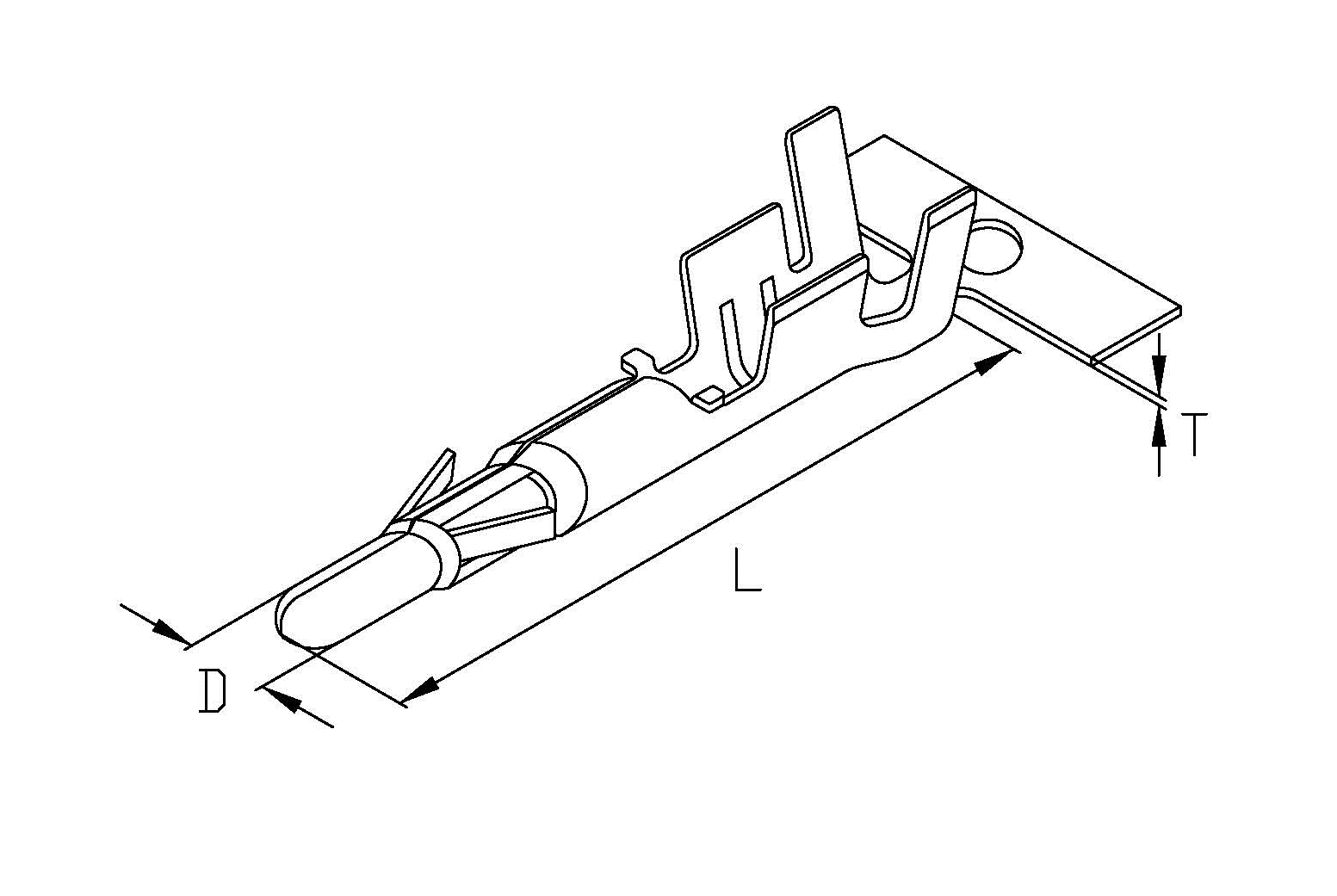

MT J2020BS - - 20.5 - 2.0 - 0.25 -

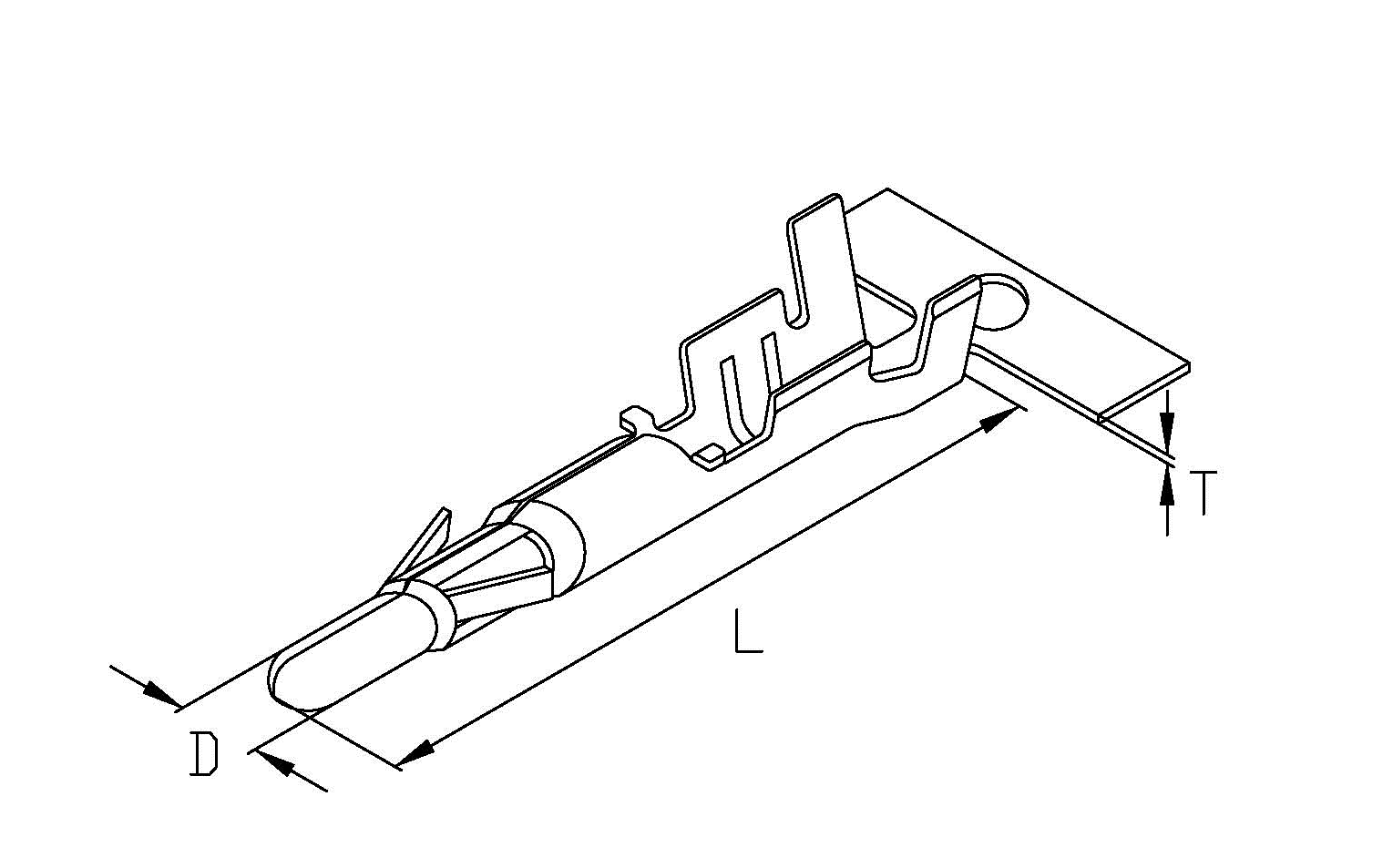

MT1 J20201BS - - 20.5 - 2.0 - 0.25 -

 Optional Items Features
MH MH1 MH2 MH3 MH4
JP2020V0-1 JP2020V2-2 JP2020V2-3 JP2020V2-4 JP2020-4-1
MH5 MH6 MH7 MH8
JP2020V2-6 JP2020V2-9 JP2020V2-12 JP2020V2-15
圖示代碼 產品編號 W H L P D E T 詳圖 配合料號
尺寸 ( 單位 mm )

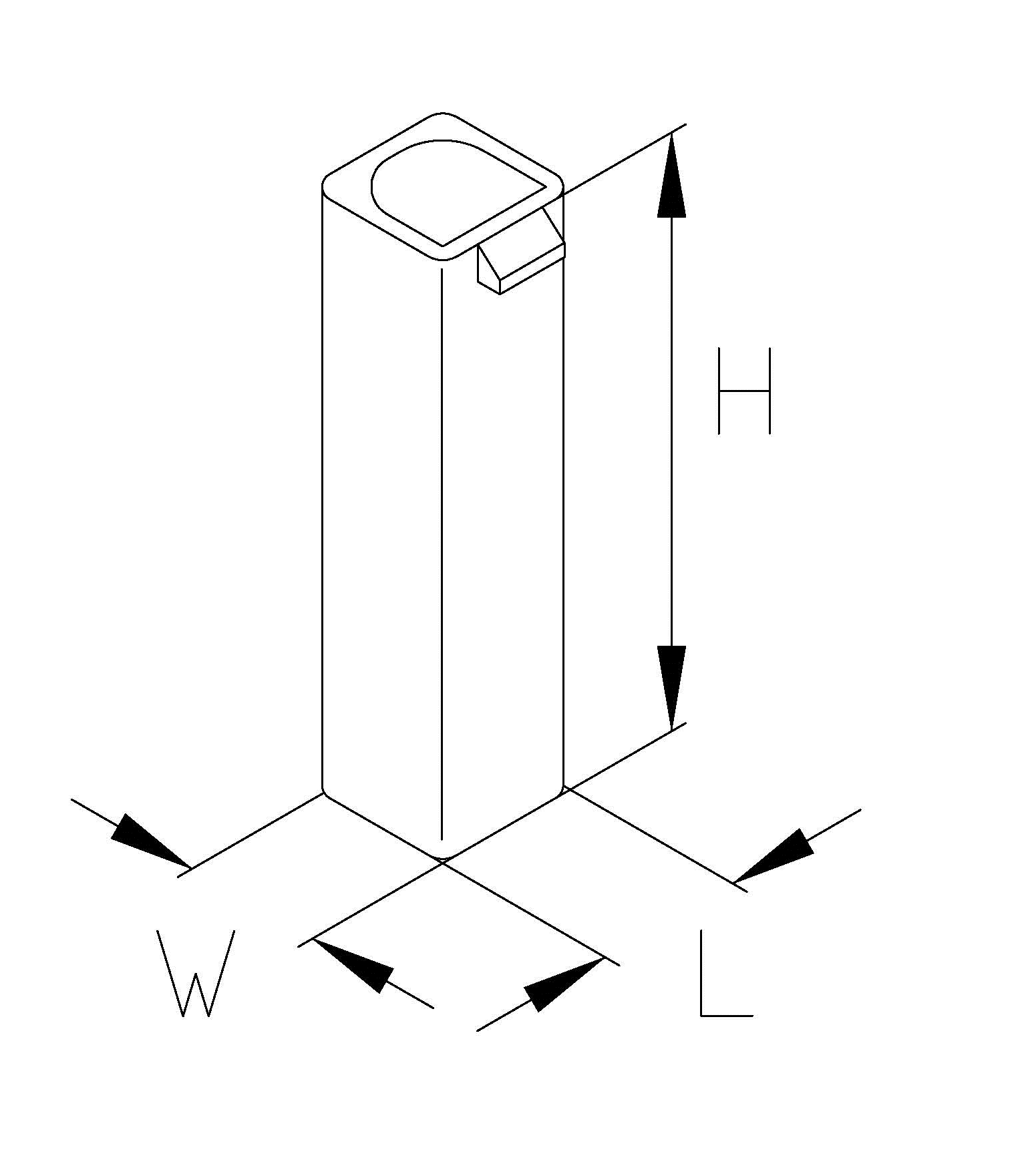

MH JP2020-1 7.3 28.1 7.3 - - - - -

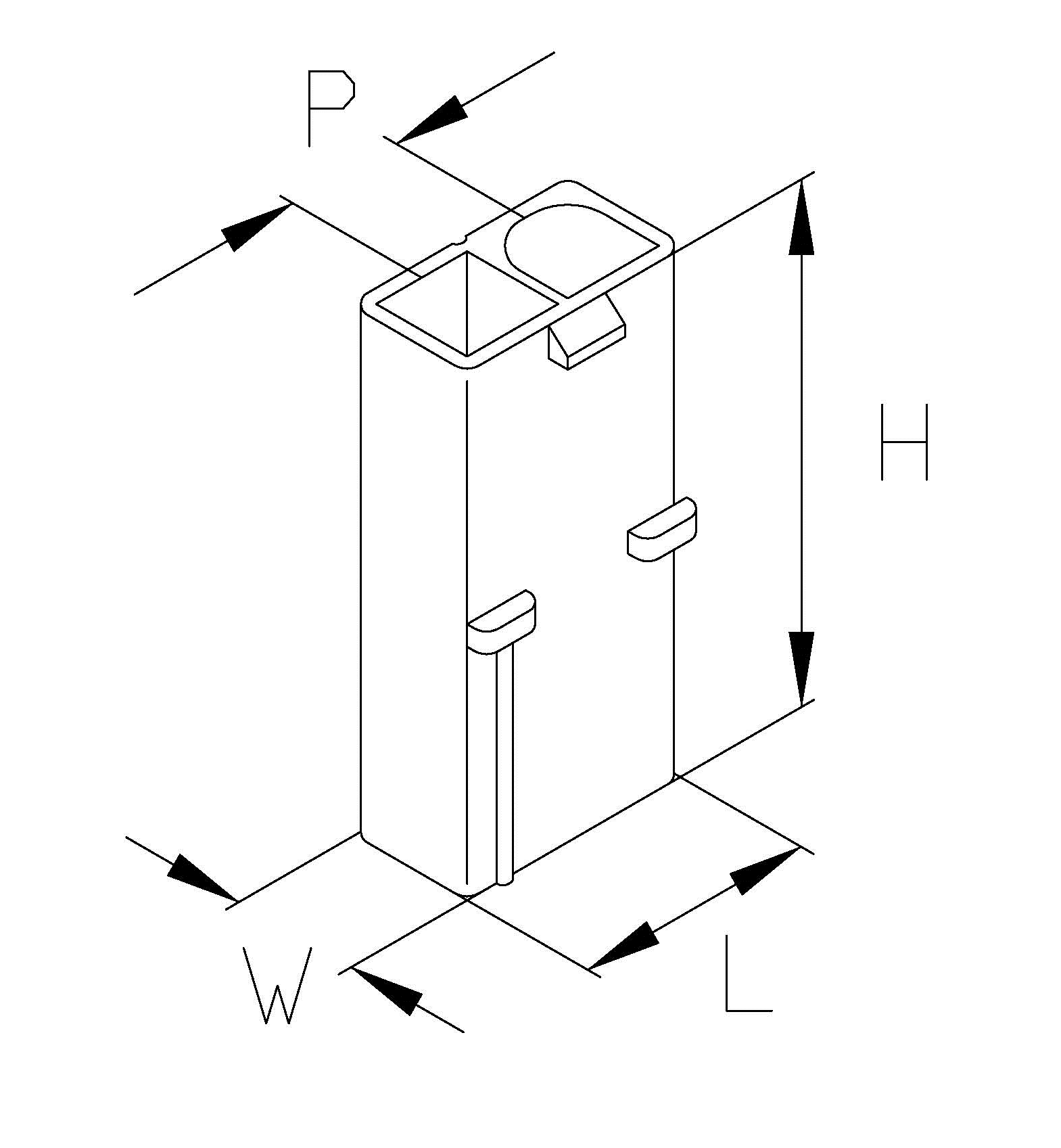

MH1 JP2020-2 7.3 27.4 13.6 6.2 - - - -

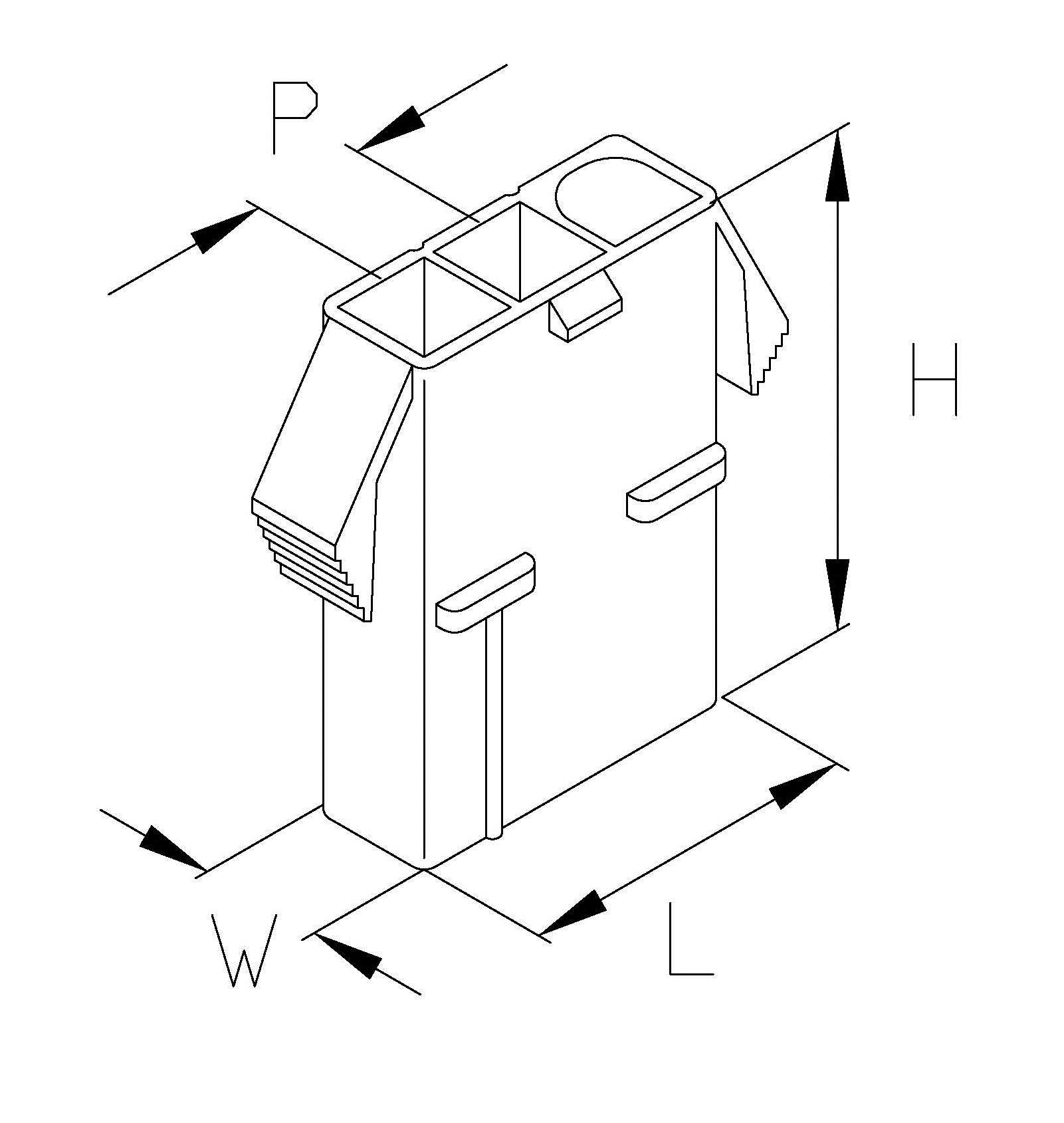

MH2 JP2020-3 7.5 27.0 20.0 6.2 - - - -
MH3 JP2020-4 13.7 27.2 13.7 6.2 - - - -

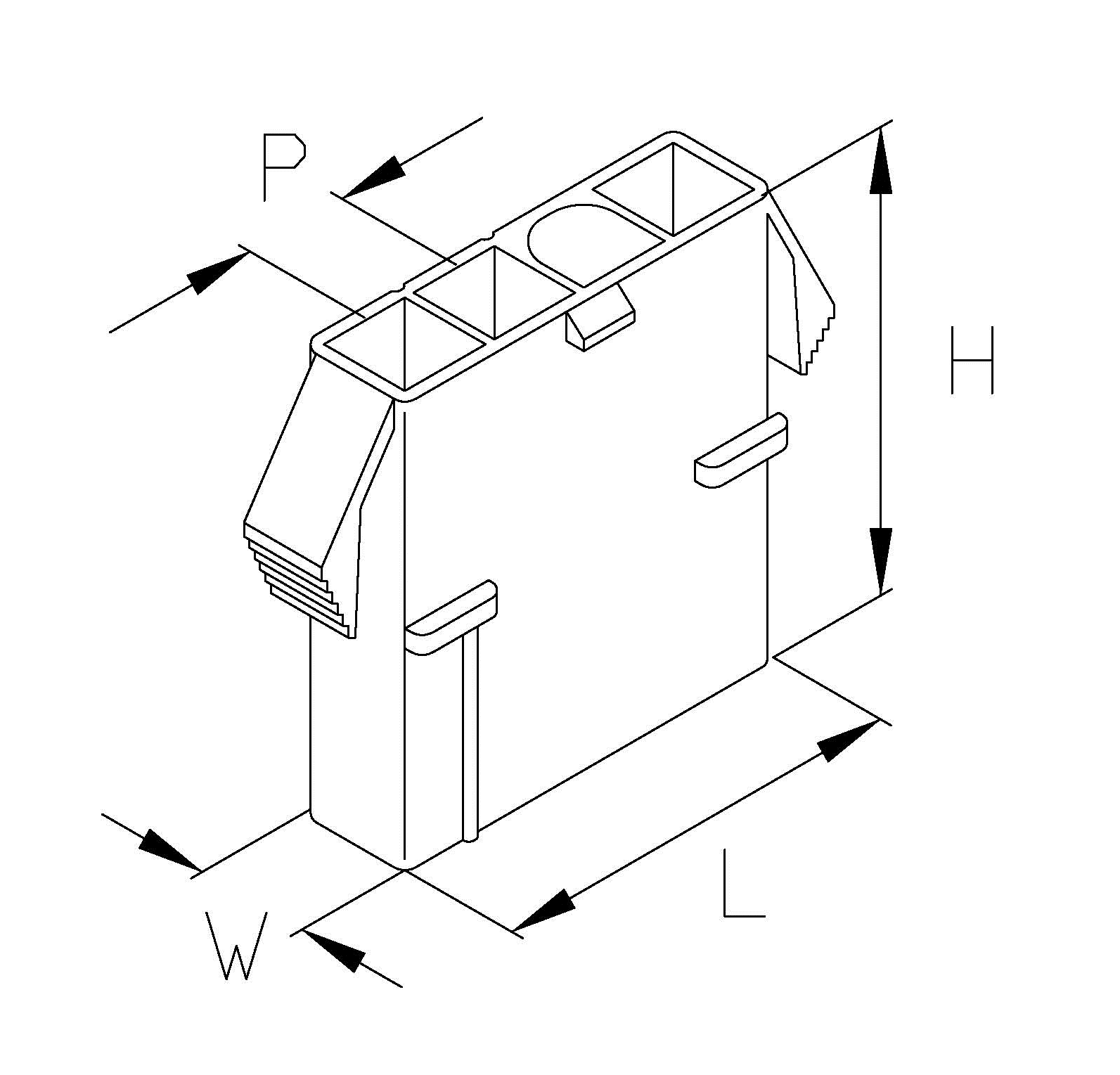

MH4 JP2020-4-1 7.5 27.4 26.4 6.2 - - - -

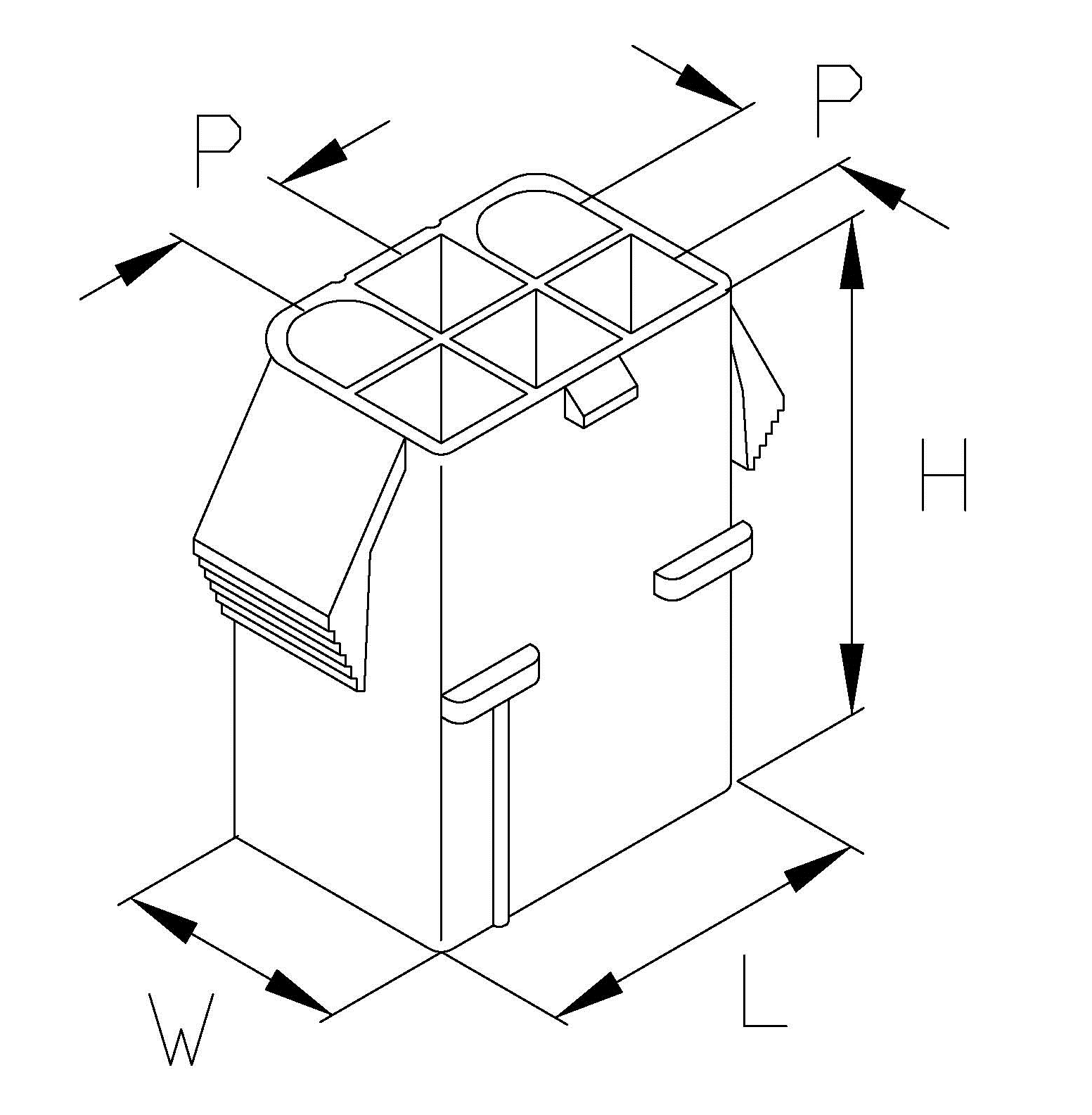

MH5 JP2020-6 13.7 27.2 20.0 6.2 - - - -

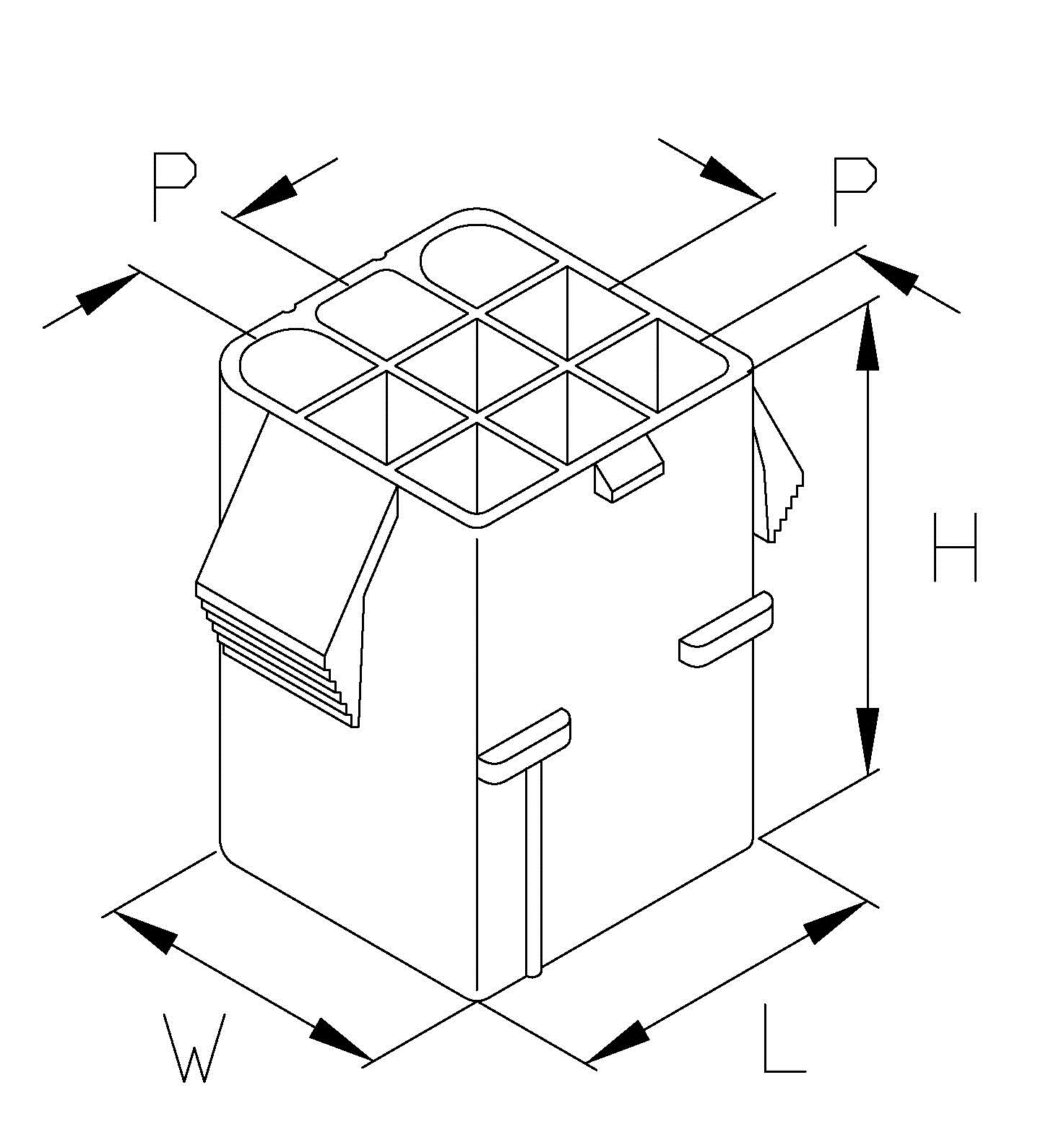

MH6 JP2020-9 19.8 26.9 19.8 6.2 - - - -

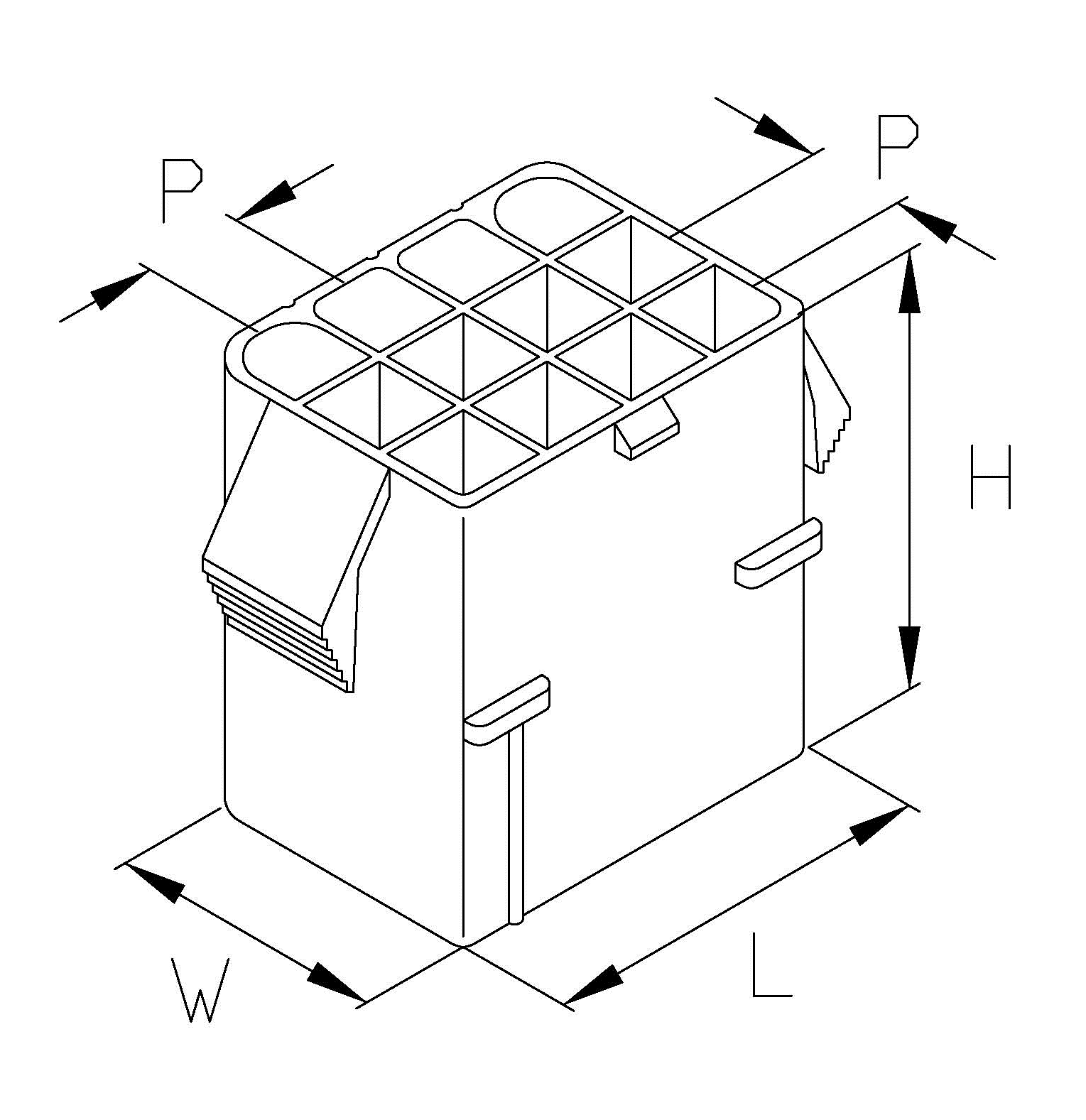

MH7 JP2020-12 20.0 26.9 26.3 6.2 - - - -

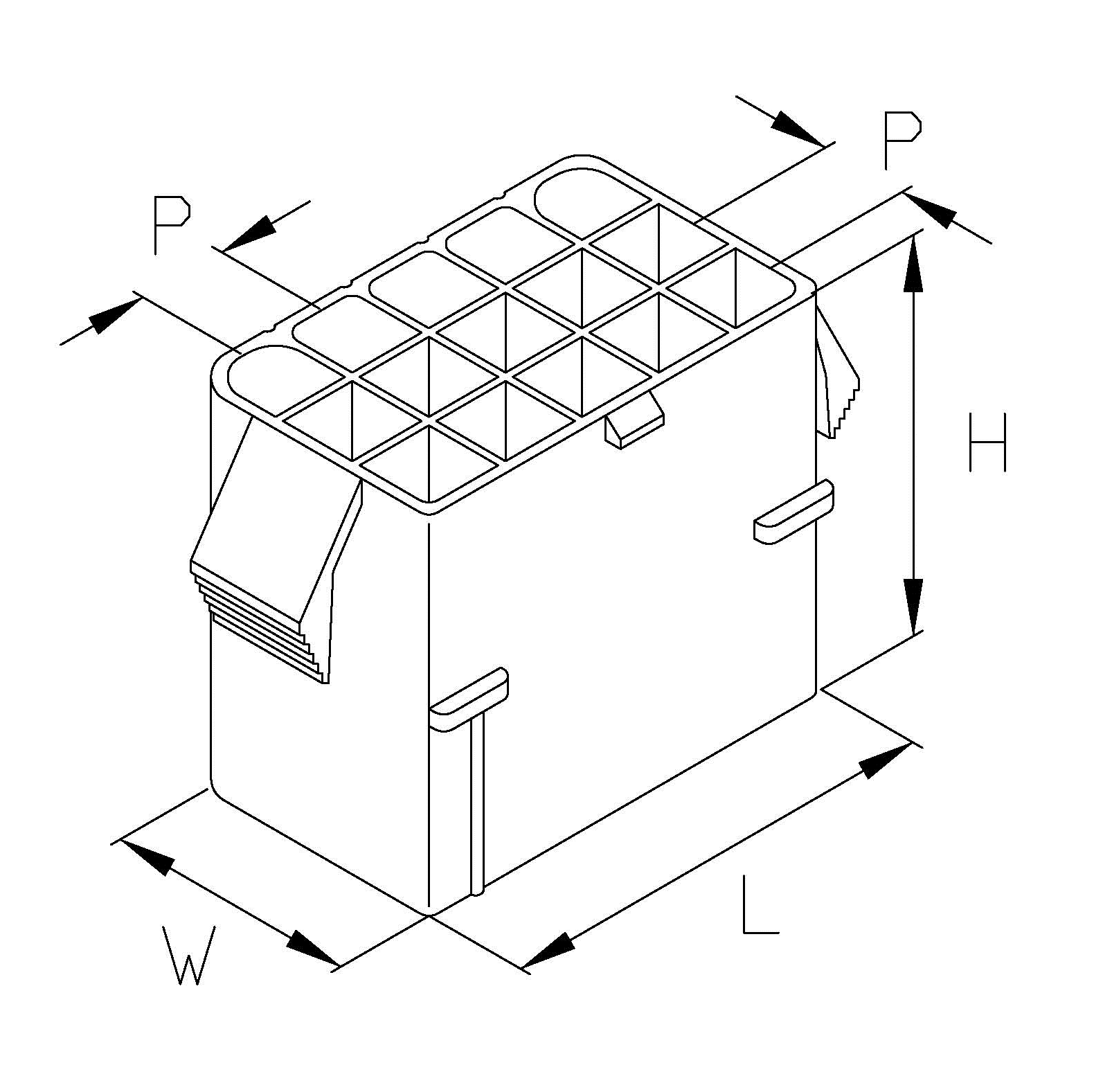

MH8 JP2020-15 20.2 27.2 32.7 6.2 - - - -
