- 2.1/P6.35 Male
Product Features
| MT | MT1 |
 |  |
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||
| MT | T66A3-A | - | - | 20.8 | - | 2.1 | 13.8 | 0.3 | - |

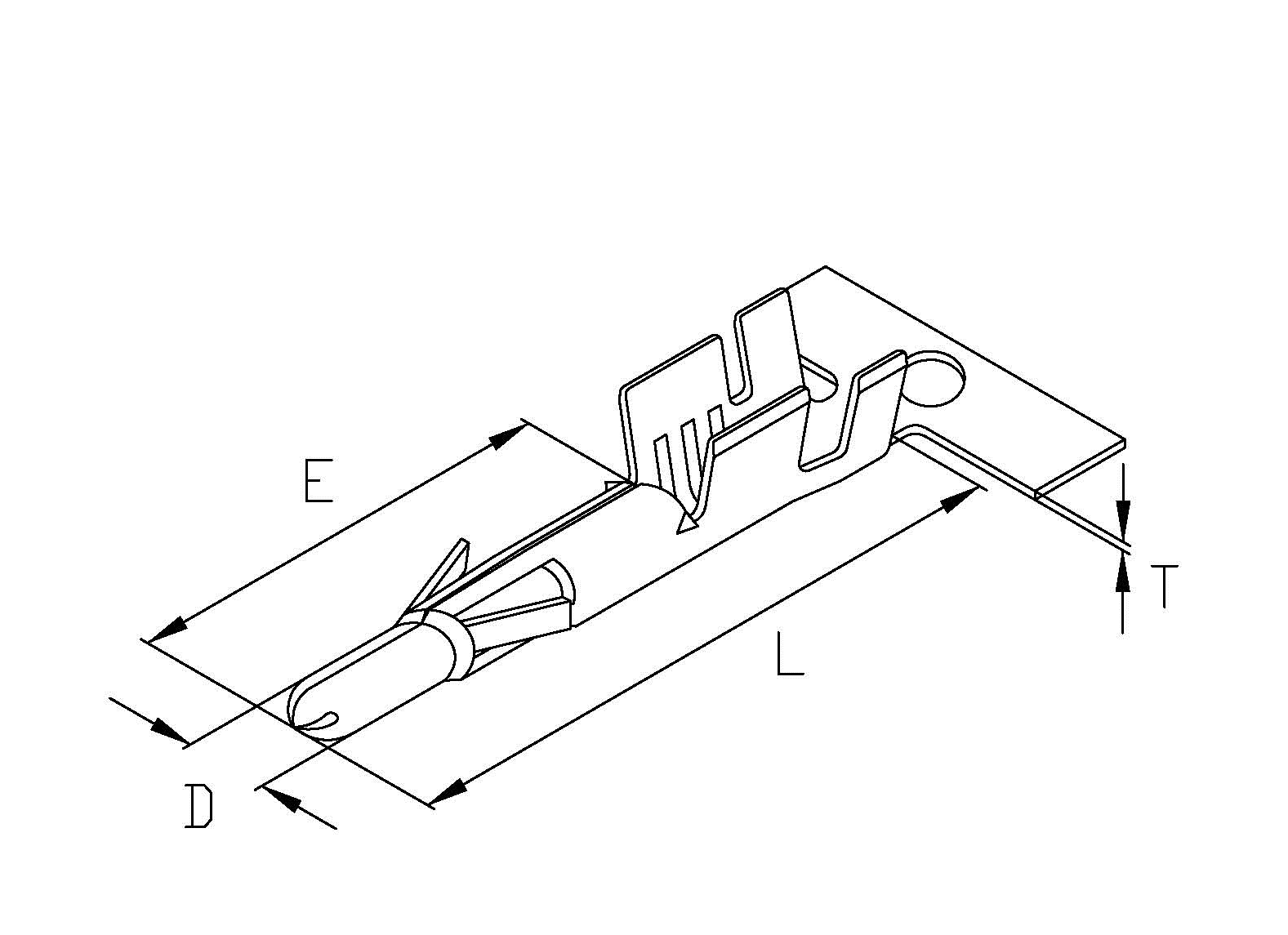

| MT1 | T66A3-B | - | - | 20.8 | - | 2.1 | 13.8 | 0.3 | - |
Optional Items Features
| MH | MH1 | MH2 | MH3 | MH4 |
 |  |  |  |  |
| MH5 | MH6 | MH7 | MH8 | |
 |  |  | .png) |
| 圖示代碼 | 產品編號 | 尺寸 ( 單位 mm ) | 附加檔案 | 配合料號 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| W | H | L | P | D | E | T | ||||

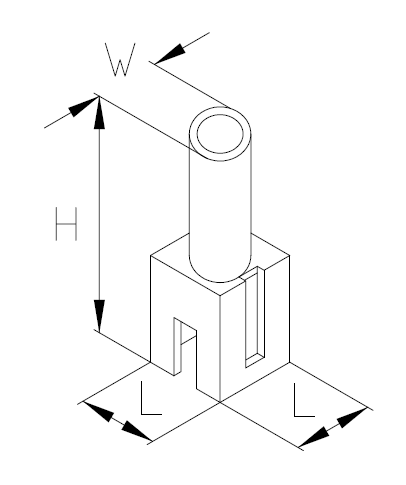

| MH | H66A3-1 | 7.6 | 27.6 | 9.8 | - | - | - | - | - |
| MH1 | H66A3-2 | 7.5 | 27.6 | 14.0 | 6.35 | - | - | - | - |

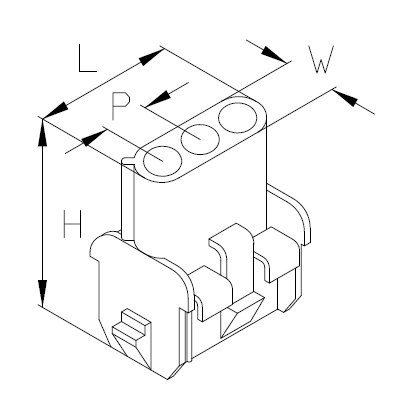

| MH2 | H66A3-3 | 7.5 | 27.6 | 20.3 | 6.35 | - | - | - | - |

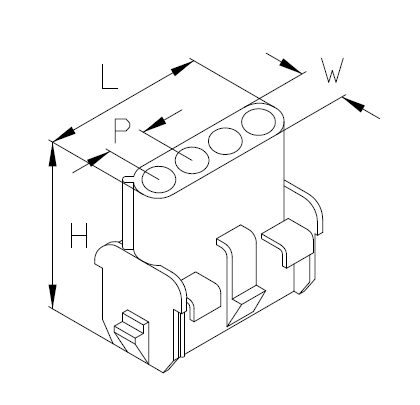

| MH3 | H66A3-4 | 7.5 | 27.6 | 26.7 | 6.35 | - | - | - | - |

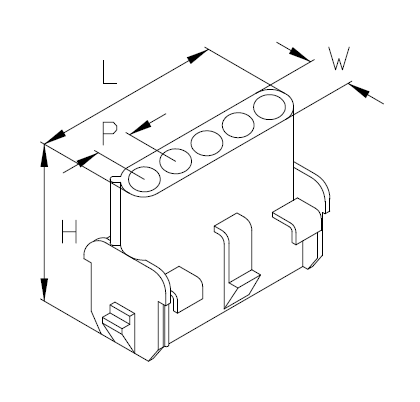

| MH4 | H66A3-5 | 7.5 | 27.6 | 33.0 | 6.35 | - | - | - | - |

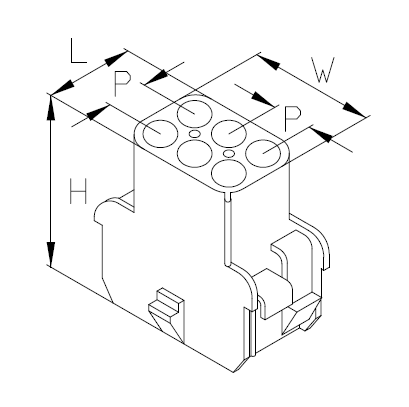

| MH5 | H66A3-6 | 20.2 | 27.6 | 14.4 | 6.35 | - | - | - | - |

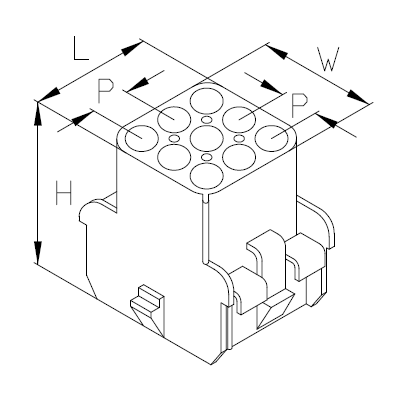

| MH6 | H66A3-9 | 20.2 | 27.6 | 20.4 | 6.35 | - | - | - | - |

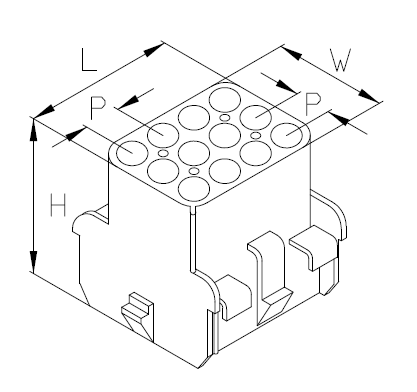

| MH7 | H66A3-12 | 20.2 | 27.6 | 27.0 | 6.35 | - | - | - | - |

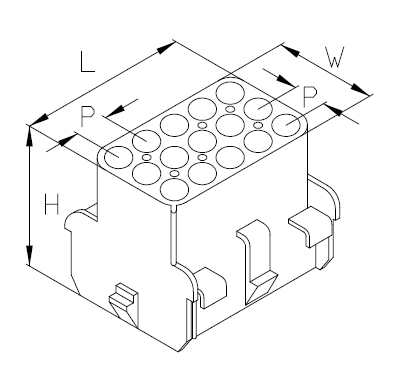

| MH8 | H66A3-15 | 20.2 | 27.6 | 33.3 | 6.35 | - | - | - | - |
