- 250-Female
Product Features
FT
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||

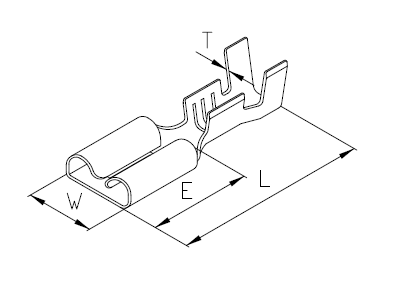

| FT | J1761BS | 7.4 | 28.3 | 19.2 | - | - | 7.7 | 0.3 | - |
Optional Items Features
| FH | FH1 | FH2 | FH3 |
 |  |  |  |
| FH4 | FH5 | FH6 | |
 |  |  | |
| FH-A | FH1-A | FH2-A | FH3-A |
 |  |  |  |
| FH4-A | FH5-A | ||
 |  | ||
| FH-B | FH1-B | FH2-B | FH3-B |
 |  |  |  |
| FH4-B | |||
 |
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||
| FH | JP1761-1 | 6.6 | 23.5 | 10.0 | - | - | - | - | - |

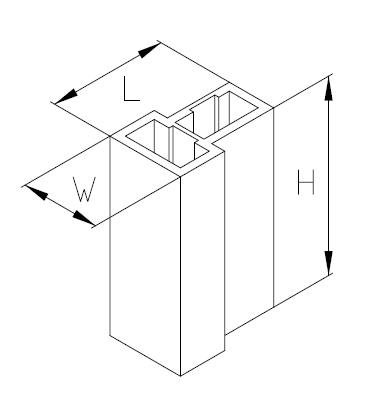

| FH1 | JP1761-2 | 10.0 | 24.5 | 15.3 | - | - | - | - | - |

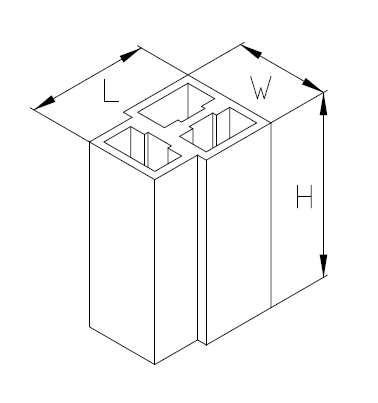

| FH2 | JP1761-3 | 12.8 | 24.9 | 16.3 | - | - | - | - | - |

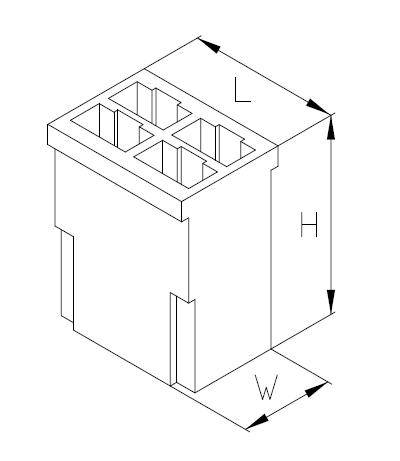

| FH3 | JP1761-4 | 12.0 | 25.0 | 19.0 | - | - | - | - | - |

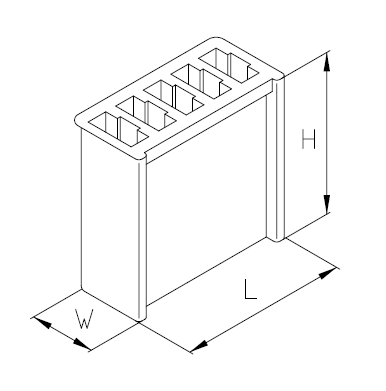

| FH4 | JP1761-5 | 11.6 | 25.4 | 26.8 | - | - | - | - | - |

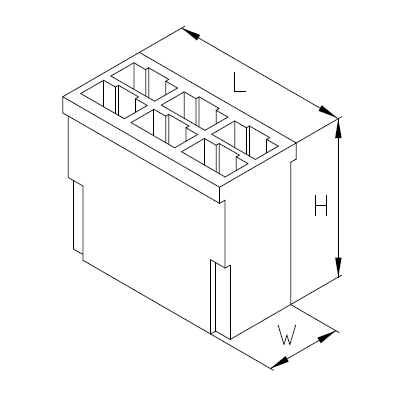

| FH5 | JP1761-6 | 12.0 | 24.9 | 28.1 | - | - | - | - | - |

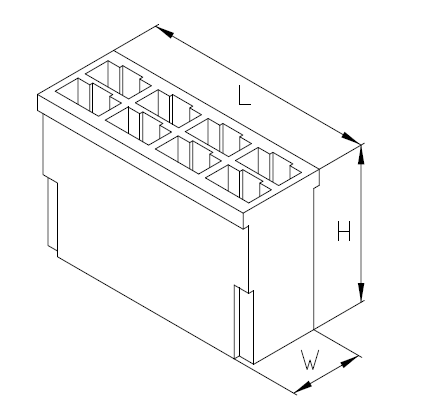

| FH6 | JP1761-8 | 12.0 | 24.9 | 37.0 | - | - | - | - | - |

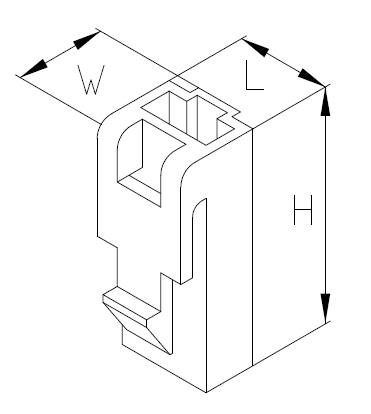

| FH-A | JP1761-1A | 9.6 | 23.4 | 10.0 | - | - | - | - | - |

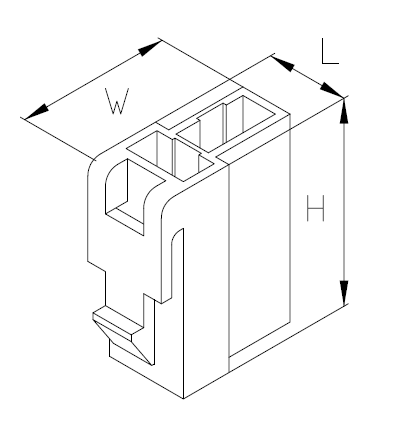

| FH1-A | JP1761-2A | 18.5 | 25.0 | 10.0 | - | - | - | - | - |

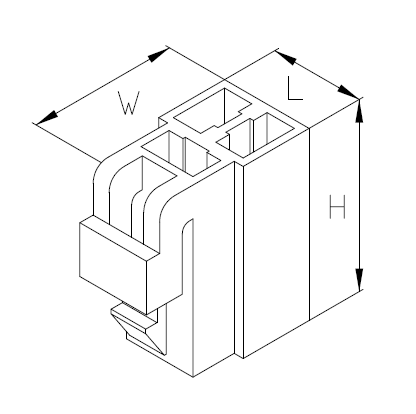

| FH2-A | JP1761-3A | 21.4 | 25.0 | 13.0 | - | - | - | - | - |

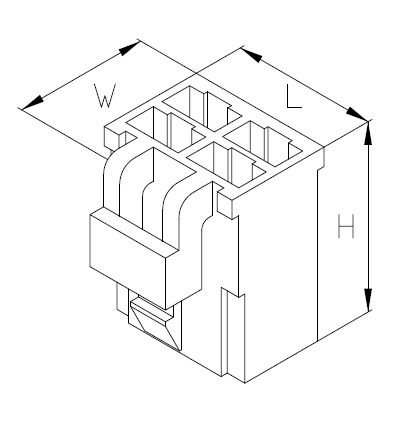

| FH3-A | JP1761-4A | 13.7 | 25.0 | 19.0 | - | - | - | - | - |

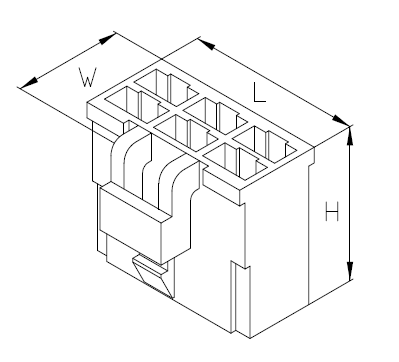

| FH4-A | JP1761-6A | 13.7 | 25.0 | 28.0 | - | - | - | - | - |

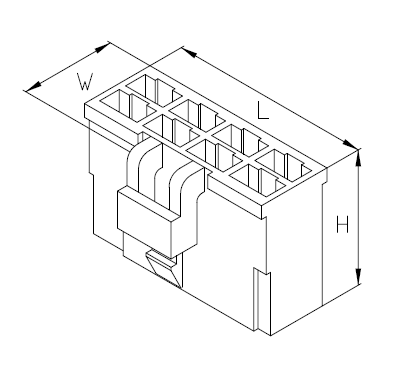

| FH5-A | JP1761-8A | 13.7 | 25.0 | 37.0 | - | - | - | - | - |

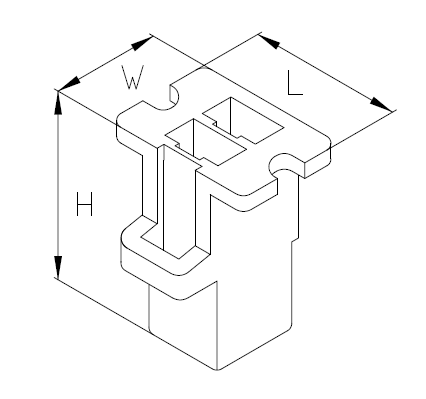

| FH-B | JP1761-2K | 14.0 | 25.0 | 19.8 | - | - | - | - | - |

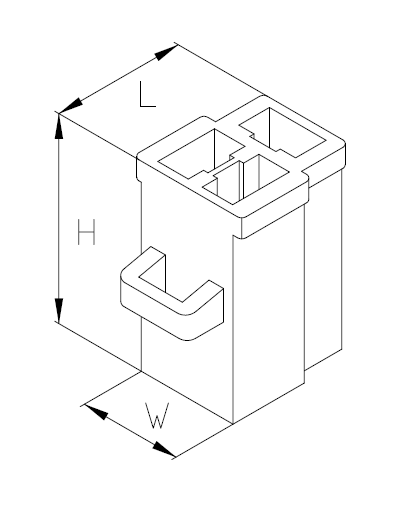

| FH1-B | JP1761-3K | 12.8 | 25.0 | 16.4 | - | - | - | - | - |

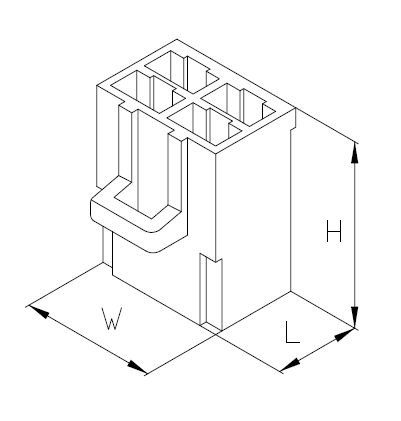

| FH2-B | JP1761-4K | 19.0 | 25.0 | 12.0 | - | - | - | - | - |

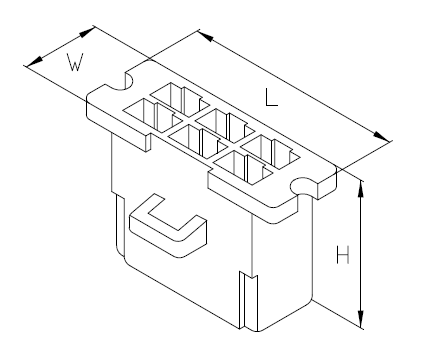

| FH3-B | JP1761-6K | 14.2 | 25.0 | 38.4 | - | - | - | - | - |

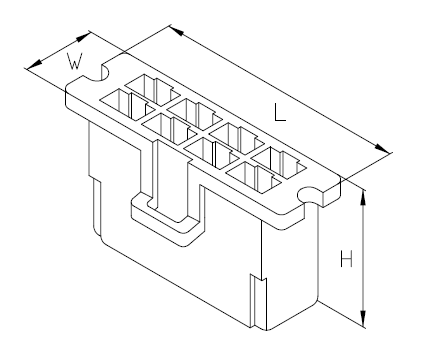

| FH4-B | JP1761-8K | 14.0 | 25.0 | 47.0 | - | - | - | - | - |
