250-Male

 Back List
 Product Features
MTJ1661BS
圖示代碼 產品編號 W H L P D E T 詳圖 配合料號
尺寸 ( 單位 mm )
FT J1661BS 5.8 - 24.5 - - 15.3 0.4 -

 Optional Items Features
MH MH1 MH2 MH3
JP1661-1 JP1661-2 JP1661-3 JP1661-4
MH4 MH5 MH6
JP1661-5 JP1661-6
MH-A MH1-A MH2-A MH3-A
JP1661-1A JP1661-2A JP1661-3A JP1661-4A
MH4-A MH5-A
JP1661-6A JP1661-8A
MH-B MH1-B MH2-B MH3-B
JP1661-2K JP1661-3K JP1661-4K JP1661-6K
MH4-B MH-C MH1-C
JP1661-8K JP1661-2AH JP1661-3AH
圖示代碼 產品編號 W H L P D E T 詳圖 配合料號
尺寸 ( 單位 mm )
MH JP1661-1 11.6 28.4 13.2 - - - - -
MH1 JP1661-2 13.2 28.3 18.4 - - - - -
MH2 JP1661-3 16.3 28.4 19.9 - - - - -
MH3 JP1661-4 15.4 28.4 22.4 - - - - -
MH4 JP1661-5 15.3 30.0 30.5 - - - - -
MH5 JP1661-6 15.5 28.4 31.4 - - - - -
MH6 JP1661-8 15.5 28.4 40.4 - - - - -
MH-A JP1661-1A 12.7 28.4 13.4 - - - - -
MH1-A JP1661-2A 21.2 28.5 13.2 - - - - -
MH2-A JP1661-3A 23.0 28.5 16.4 - - - - -
MH3-A JP1661-4A 15.7 28.4 22.5 - - - - -
MH4-A JP1661-6A 15.6 28.5 31.5 - - - - -
MH5-A JP1661-8A 15.3 28.5 40.4 - - - - -
MH-B JP1661-2K 14.2 28.4 13.4 - - - - -
MH1-B JP1661-3K 19.8 28.5 16.4 - - - - -

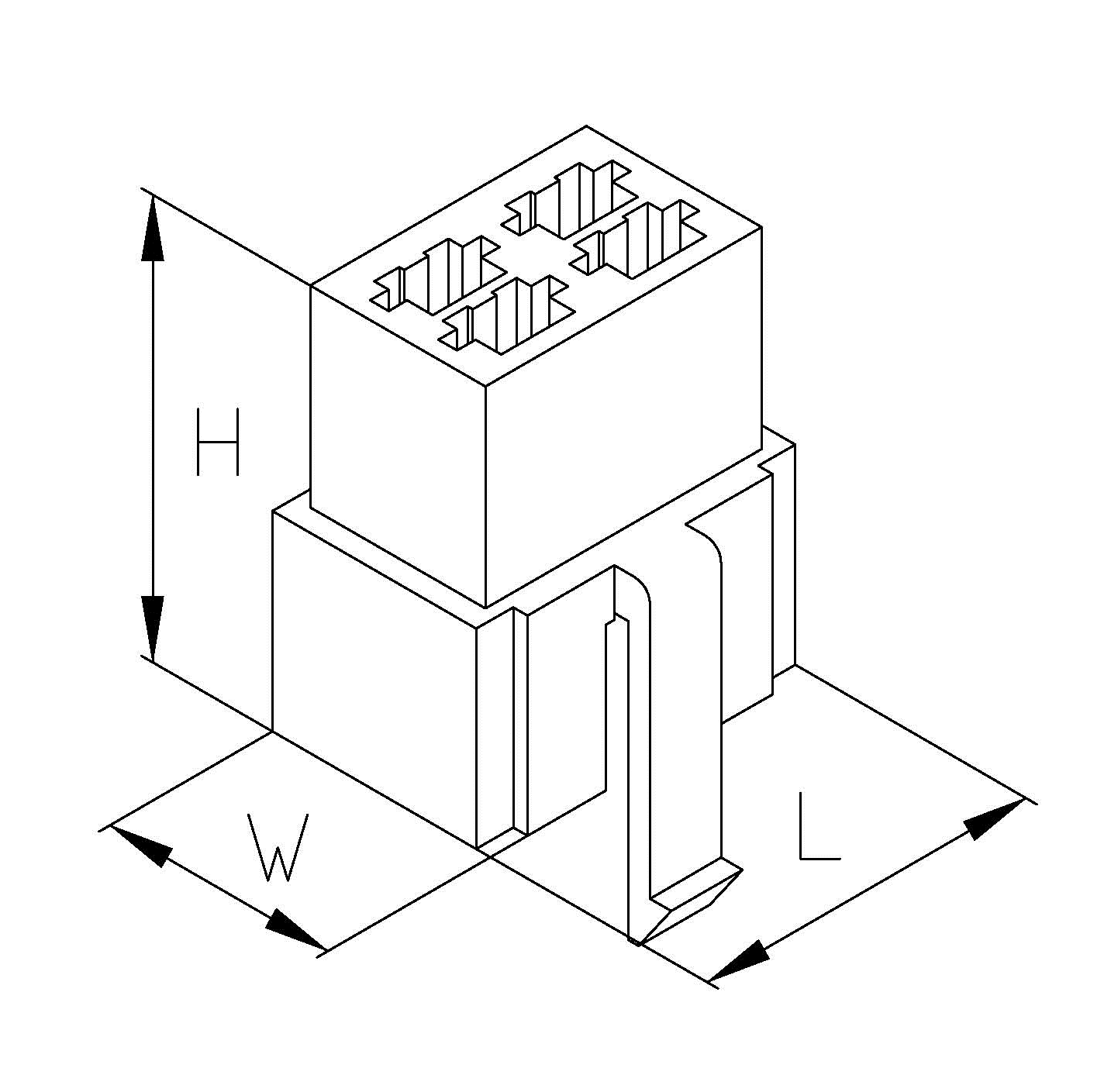

MH2-B JP1661-4K 15.2 28.5 22.4 - - - - -
MH3-B JP1661-6K 15.0 28.1 31.5 - - - - -
MH4-B JP1661-8K 15.4 28.3 37.3 - - - - -

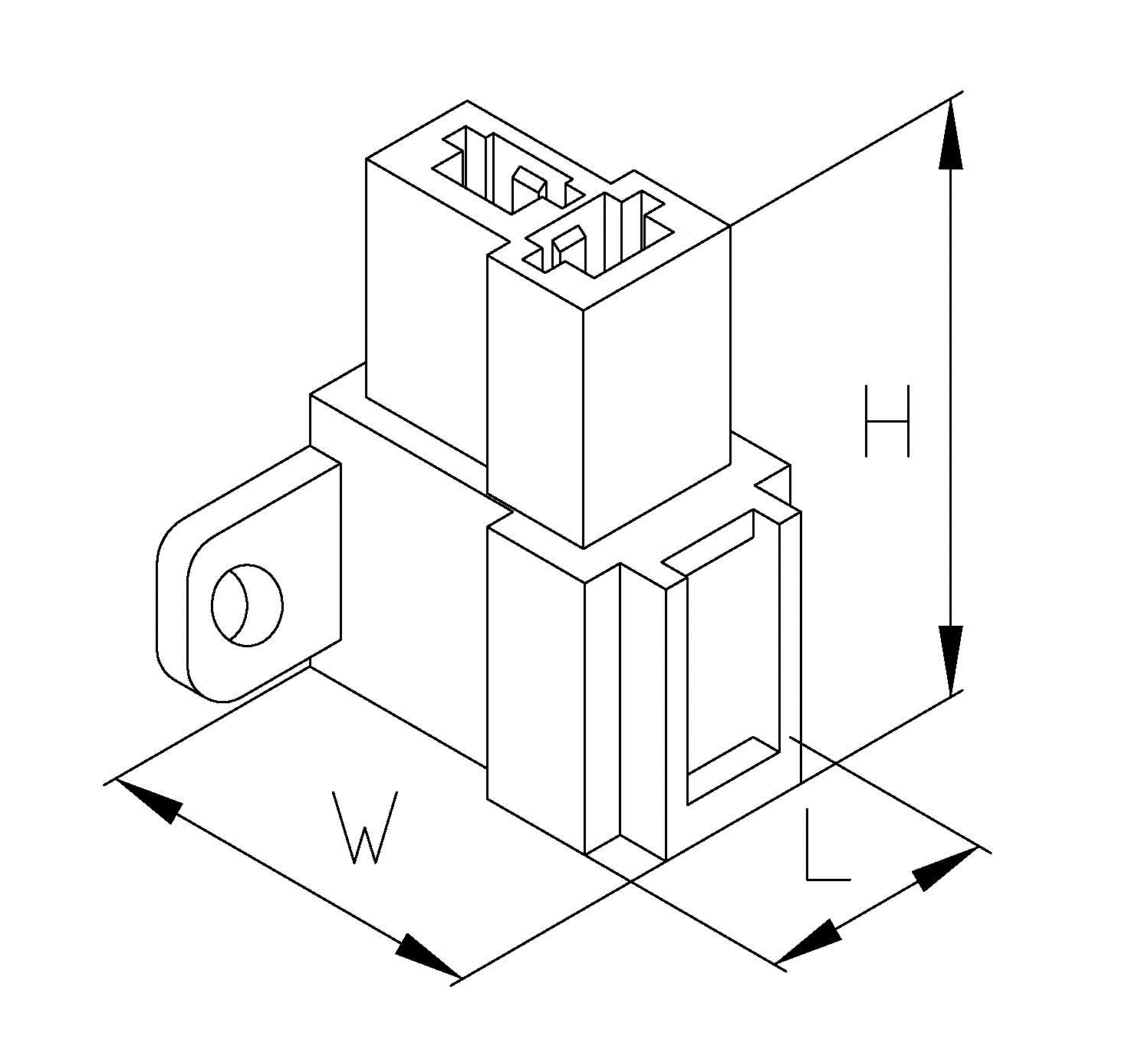

MH-C JP1661-2AH 21.6 28.5 13.3 - - - - -
MH1-C JP1661-3AH 23.0 28.3 16.4 - - - - -
