250

 Product Features
FT6 FT7
J2362BS J2363BS
圖示代碼 產品編號 W H L P D E T 詳圖 配合料號
尺寸 ( 單位 mm )

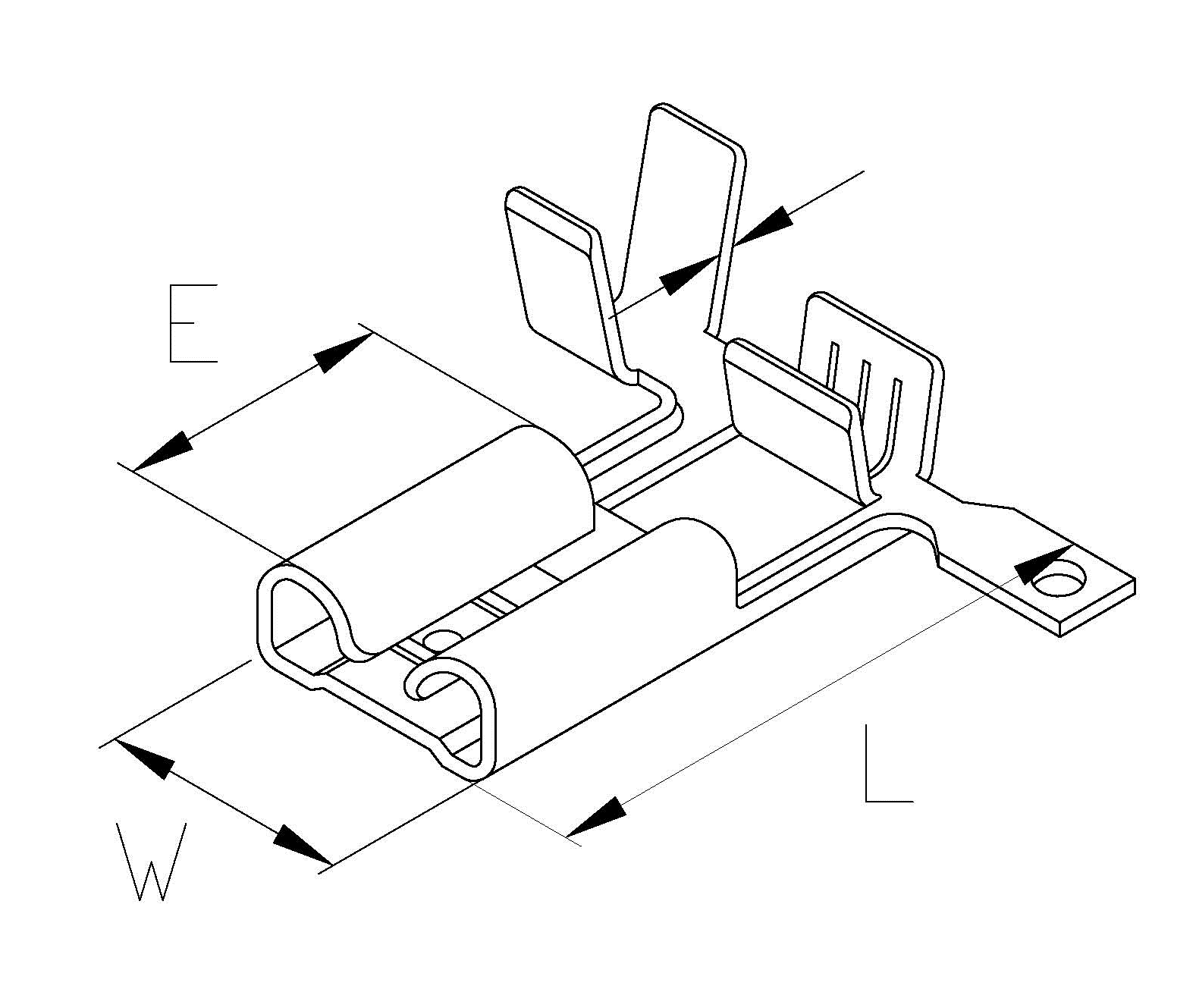

FT6 J2362BS 7.6 - 16.1 - - 7.7 0.4 -
FT6 J23621BS 7.6 - 16.1 - - 7.7 0.4 -
FT6 J23622BS 7.6 - 16.1 - - 7.7 0.5 -

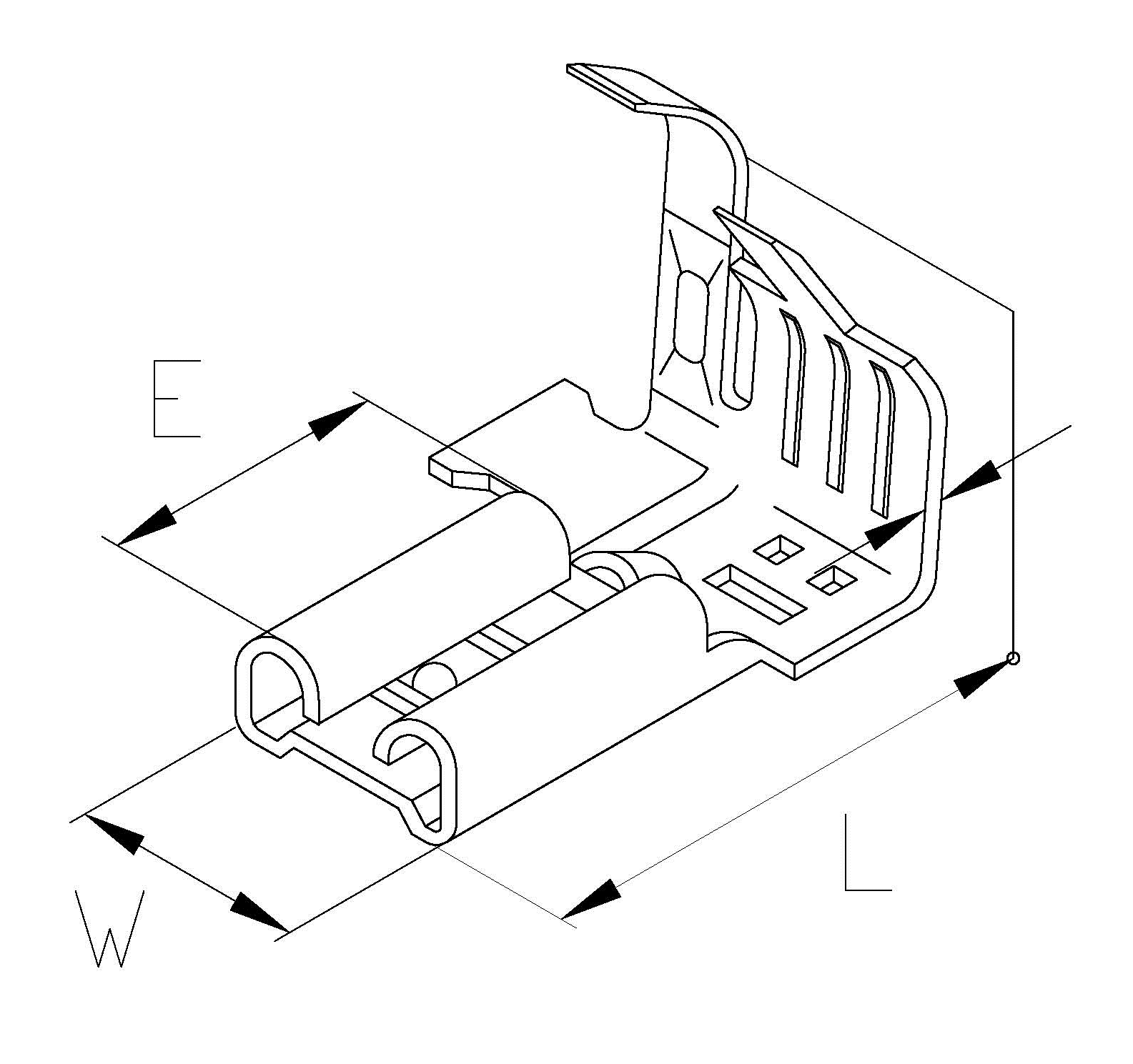

FT7 J2363BS 8.0 - 16.0 - - 7.85 0.45 -

 Optional Items Features
FH2 FH3 FH4 FH5
JP2362H2 JP2362H JP2362-1A JP2363-1A
圖示代碼 產品編號 W H L P D E T 詳圖 配合料號
尺寸 ( 單位 mm )

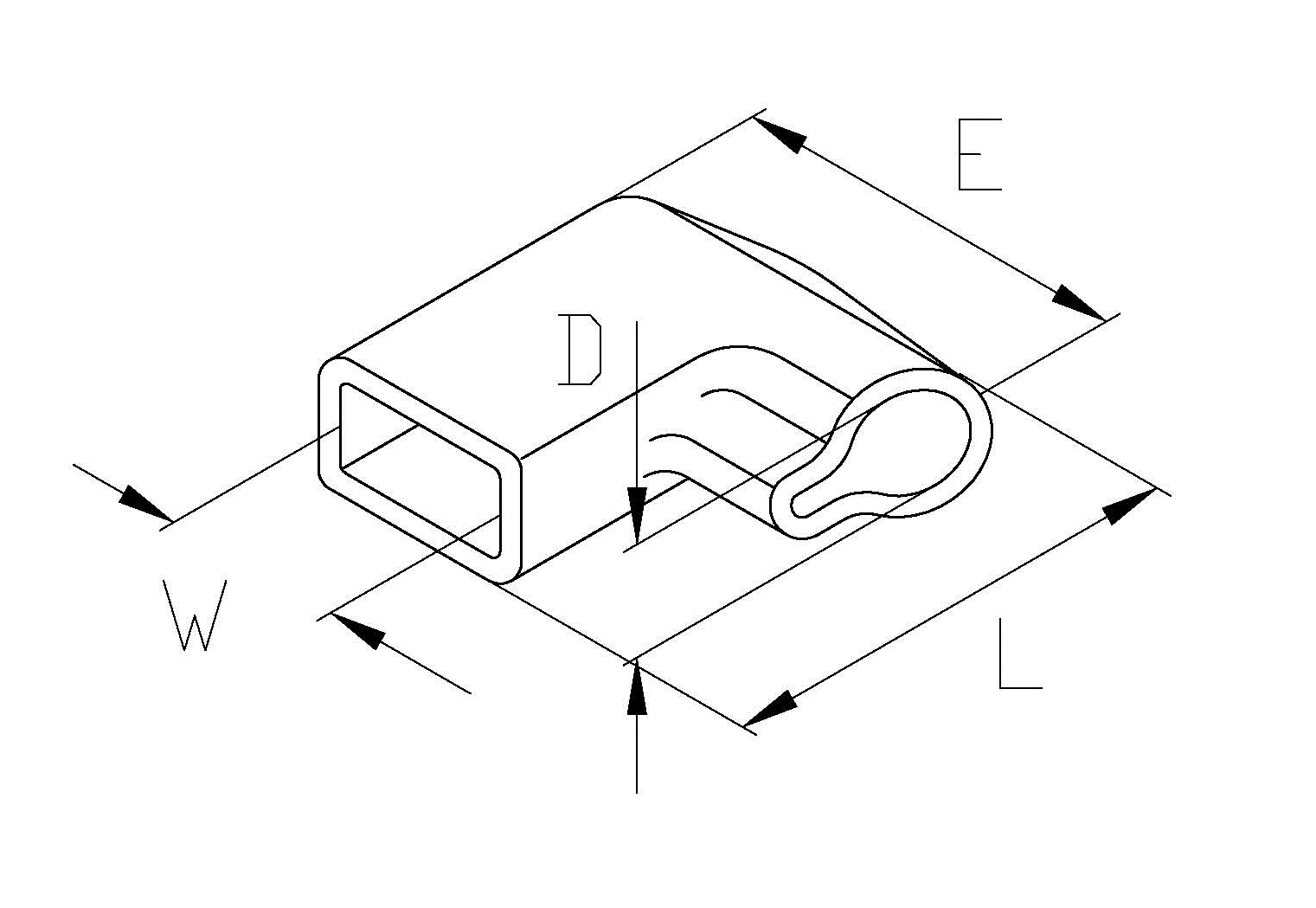

FH2 JP2362H2 8.0 - 18.0 - 4.0 16.0 - -

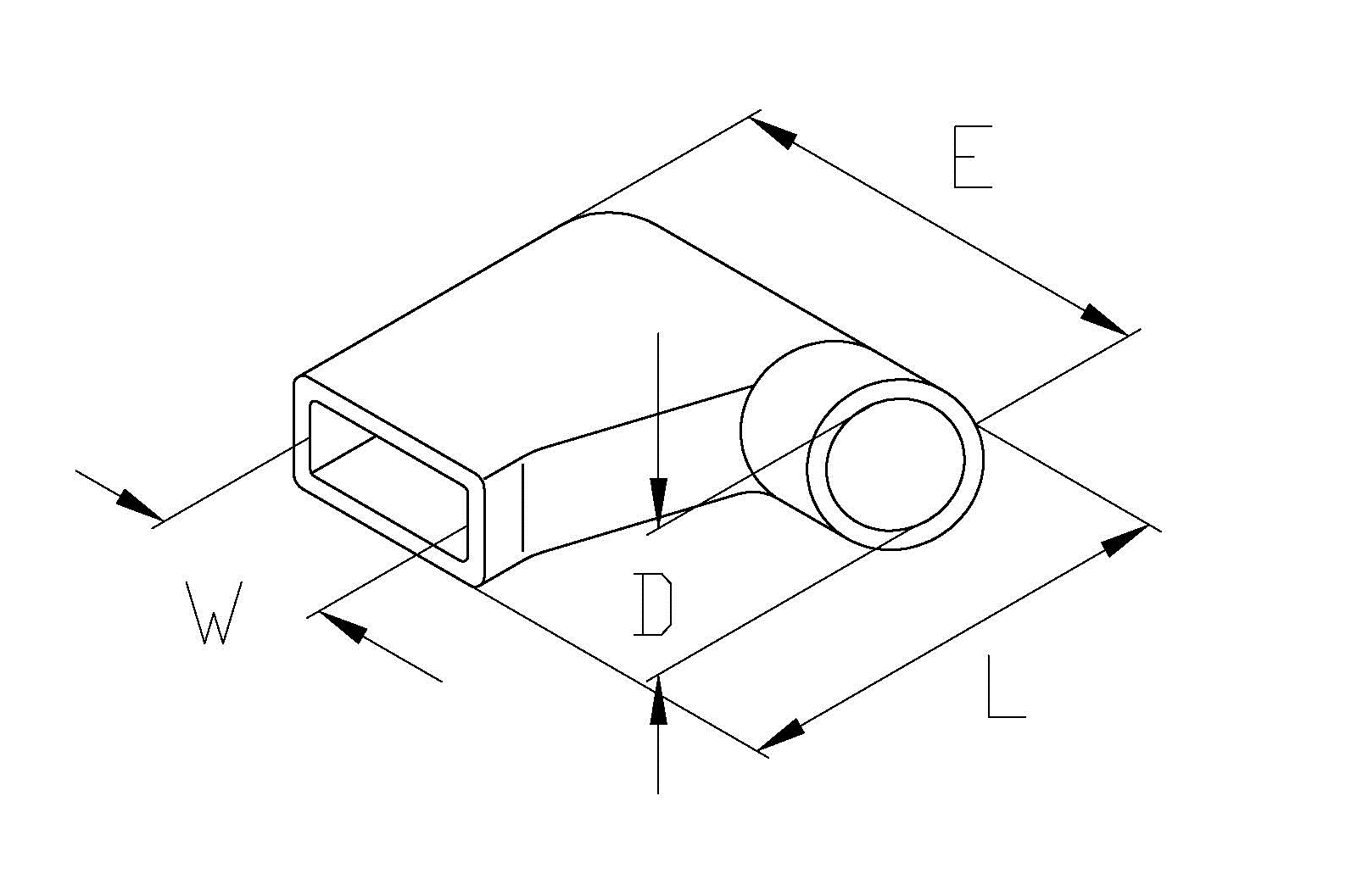

FH3 JP2362H 9.5 - 19.0 - 4.0 18.0 - -

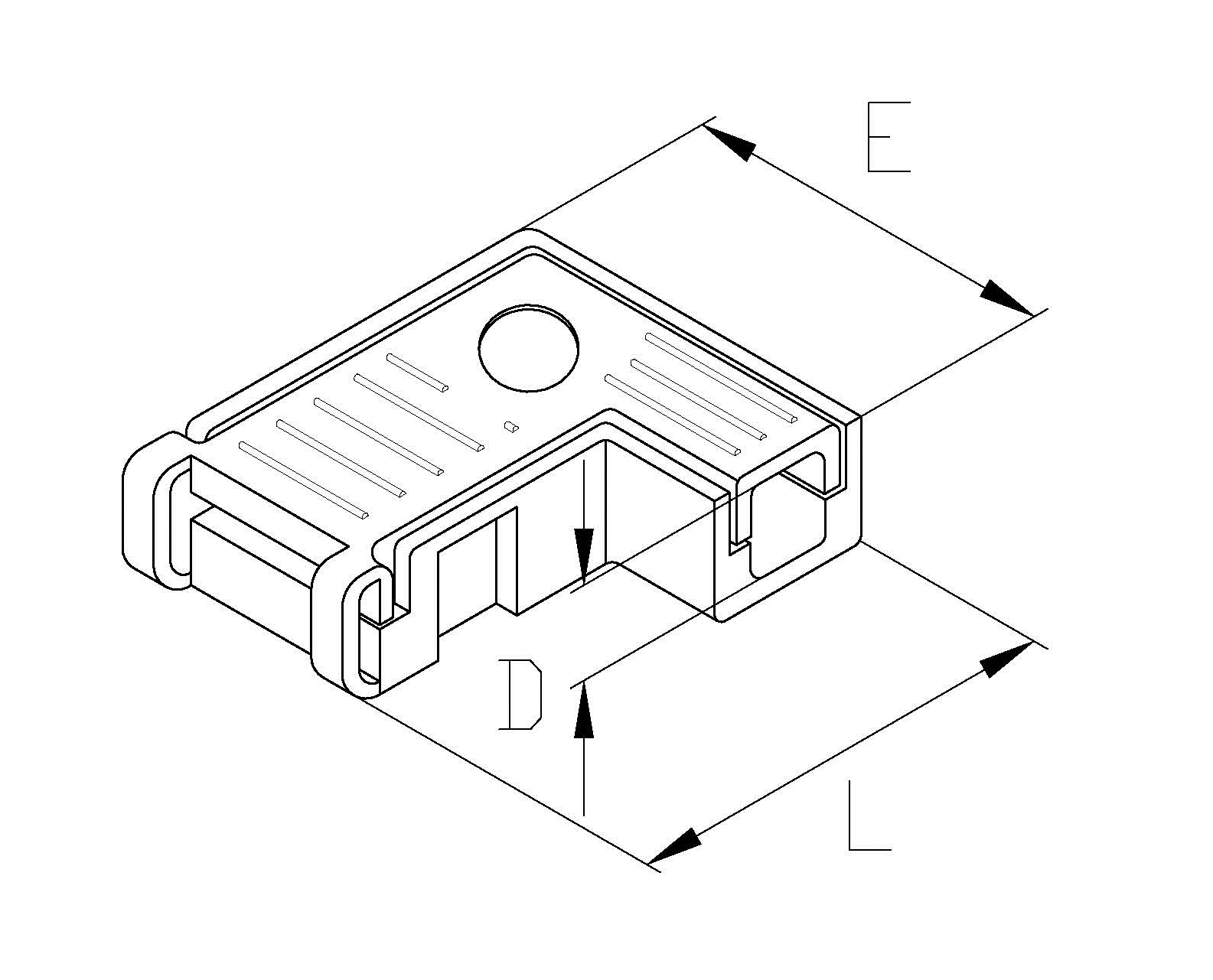

FH4 JP2362-1A - - 21.9 - 3.5 17.3 - -

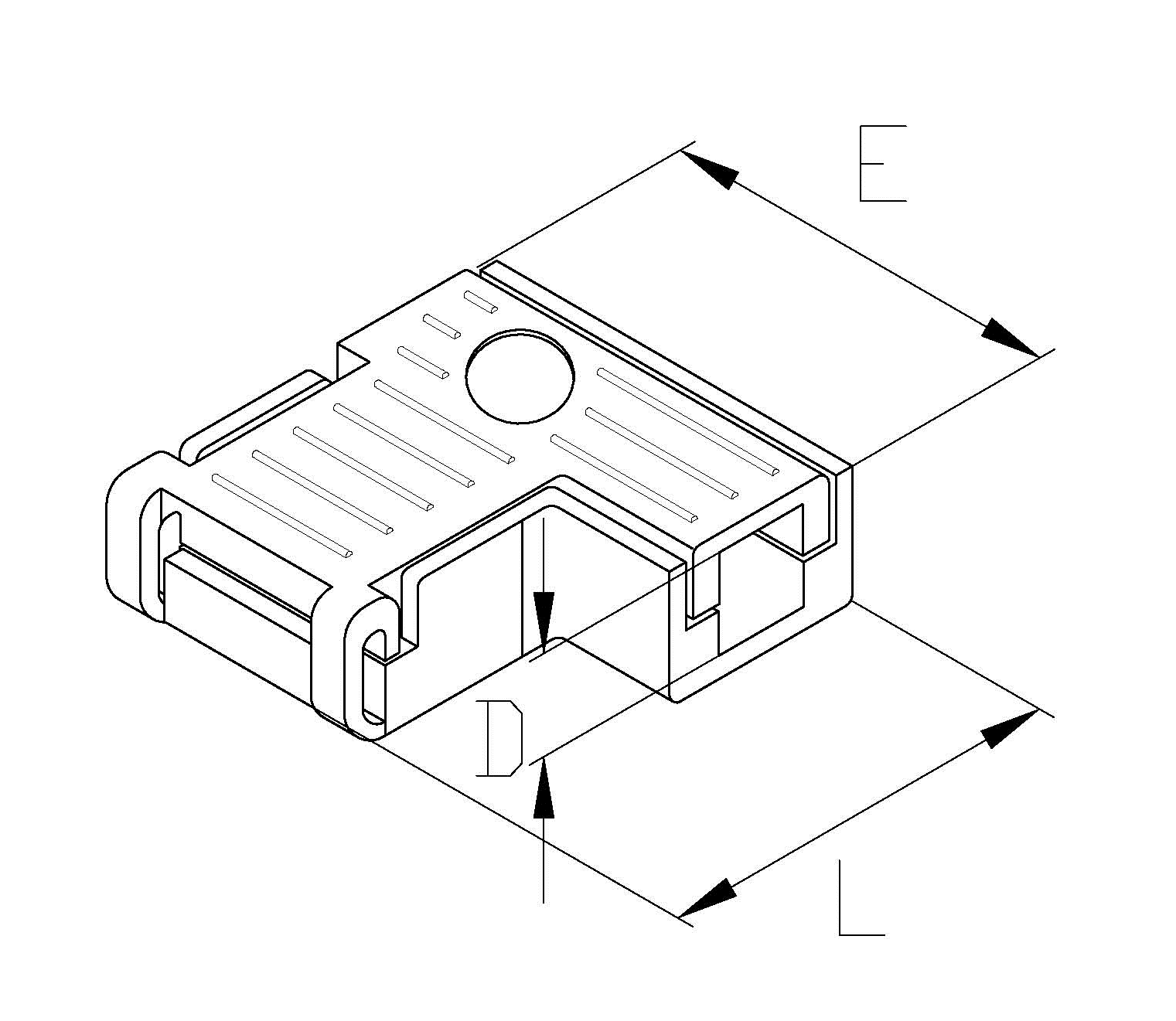

FH5 JP2363-1A - - 19.2 - 4.0 17.5 - -
