Product Features
| FT | FT1 | FT2 |
.png) | .png) | .png) |
| FT3 | FT4 | FT5 |
.png) | .png) |  |
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||
| FT | J1841BS | 4.7 | - | 6.5 | - | - | - | 0.4 | - |
| FT1 | J1842BS | 6.2 | - | 9.4 | - | - | - | 0.4 | - |
| FT2 | J1843BS | 4.6 | - | 7.8 | - | - | - | 0.4 | - |
| FT3 | J1844BS | 4.6 | - | 6.8 | - | - | - | 0.4 | - |
| FT4 | J1845BS | 4.6 | - | 5.5 | - | - | - | 0.4 | - |

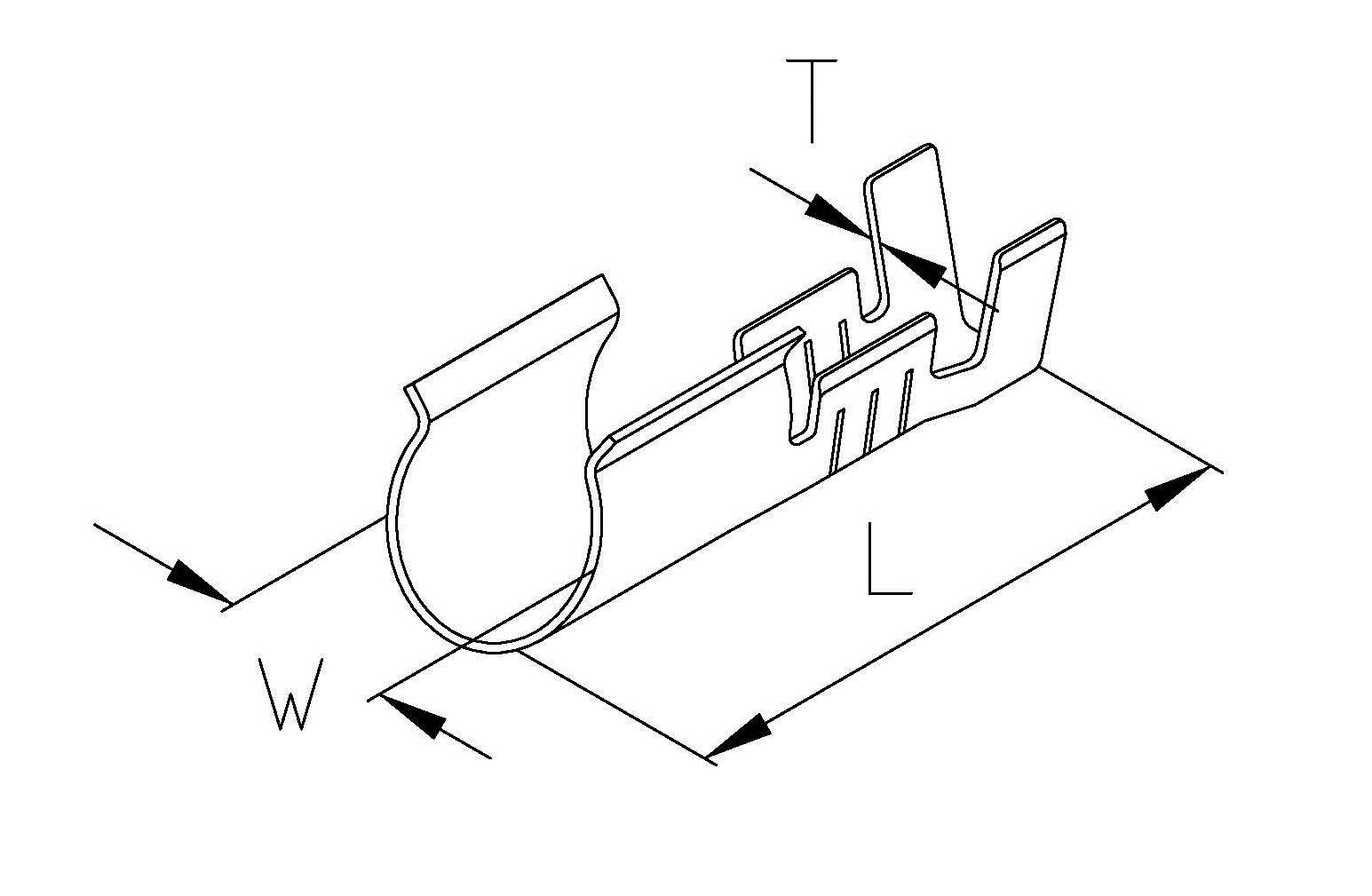

| FT5 | J1161BS | 6.3 | - | 17.8 | - | - | - | 0.3 | - |
Optional Items Features
| FH | FH1 | FH2 |
.png) | .png) | .png) |
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||
| FH | JP1841-1S | - | - | 29.0 | - | 7.4 | - | - | - |
| FH1 | JP1841-1FM | - | - | 43.8 | - | 6.3 | - | - | - |
| FH2 | JP1161 | 12.0 | - | 59.6 | - | 8.8 | - | - | - |
