| FT | FT1 | FT2 | FT3 |
 |  |  |  |
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||

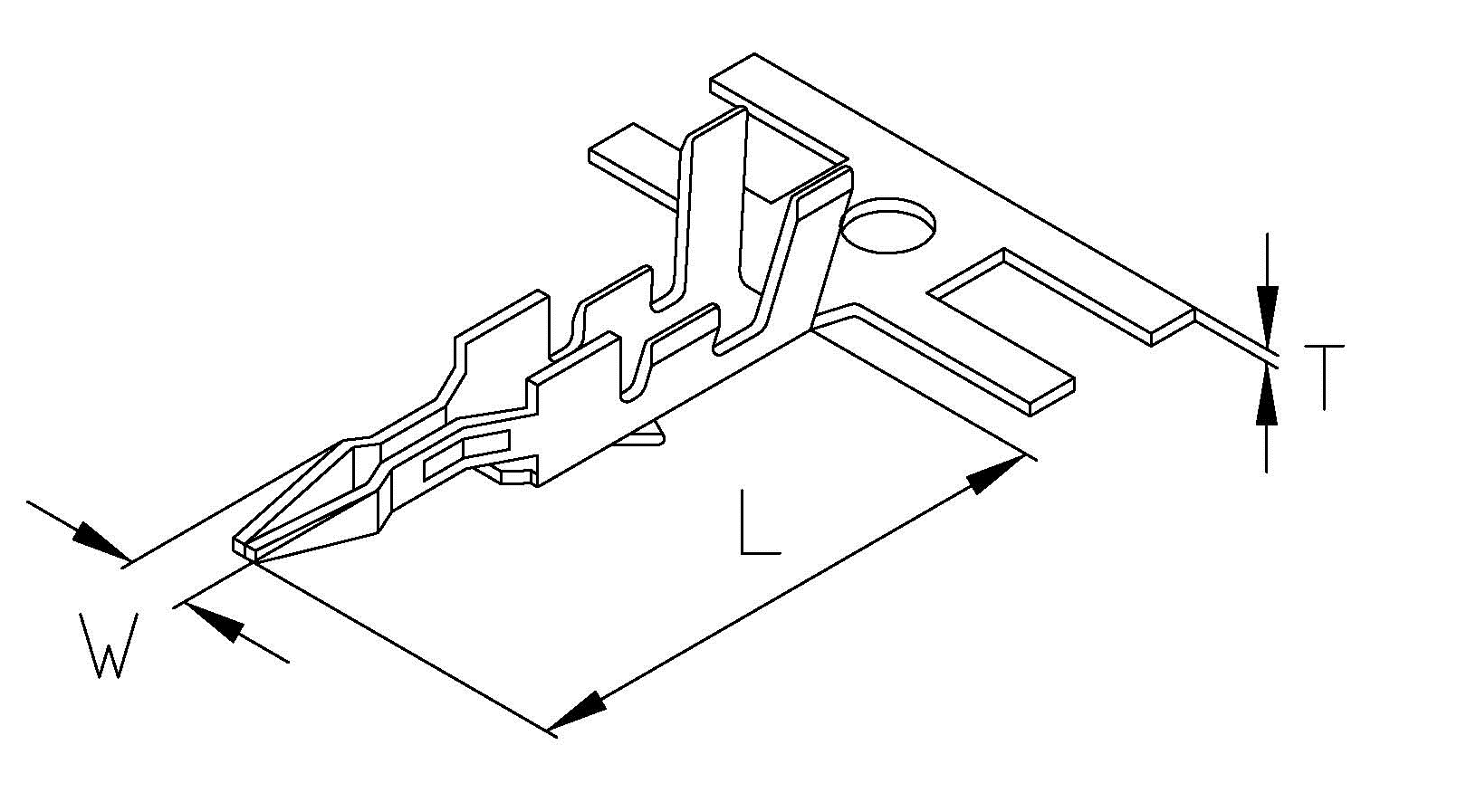

| FT | J1017BS | 0.9 | - | 9.0 | - | - | - | 0.2 | - |
| FT1 | J2017BS | 0.9 | - | 8.6 | - | - | - | 0.2 | - |
| FT2 | J2027BS | 0.9 | - | 5.2 | - | - | - | 0.2 | - |
| FT3 | J2025BS | 1.0 | - | 4.2 | - | - | - | 0.2 | - |
Optional Items Features
| FH | FH1 | FH2 |
.png) |  |  |
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||
| FH | JP1017 | 3.3 | 6.0 | - | 2.0 | - | - | - | - |

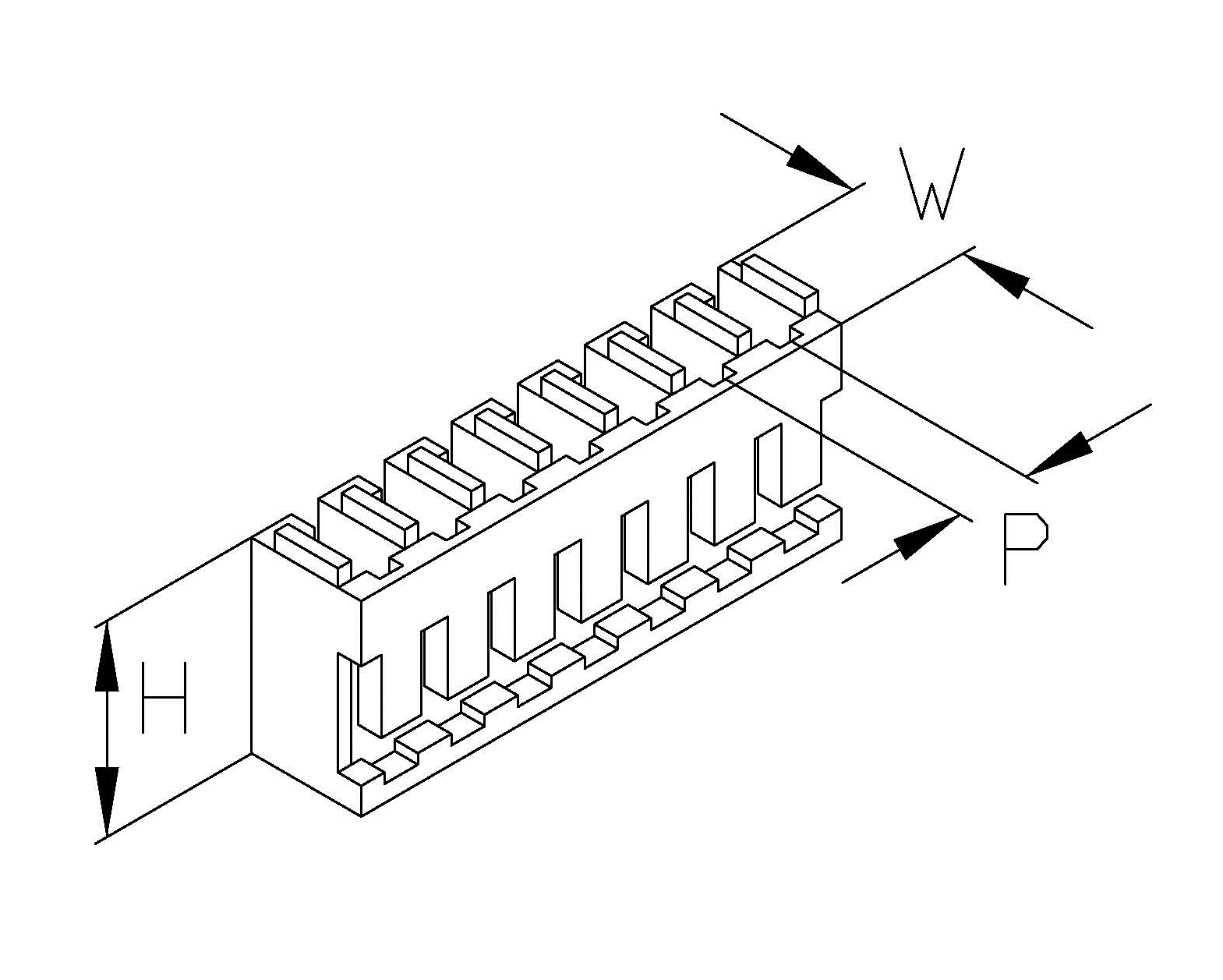

| FH1 | JP2017 | 3.3 | 5.7 | - | 2.0 | - | - | - | - |
| FH2 | JP2015 | 3.0 | 5.0 | - | 2.0 | - | - | - | - |
