P2.5

 Back List
 Product Features
FT FT-A FT-B
J24182BS J2514PS-2 J24118BS
FT-C FT-D FT-E
J24188PS J2418BS J11636PS
圖示代碼 產品編號 W H L P D E T 詳圖 配合料號
尺寸 ( 單位 mm )
FT J24182BS 1.85 - 6.6 - - - 0.2 -
FT-A J2514BS 1.5 - 7.3 - - - 0.2 -
FT-B J24118BS 1.9 - 9.0 - - - 0.2 -
FT-C J24188BS 1.6 - 5.7 - - - 0.2 -

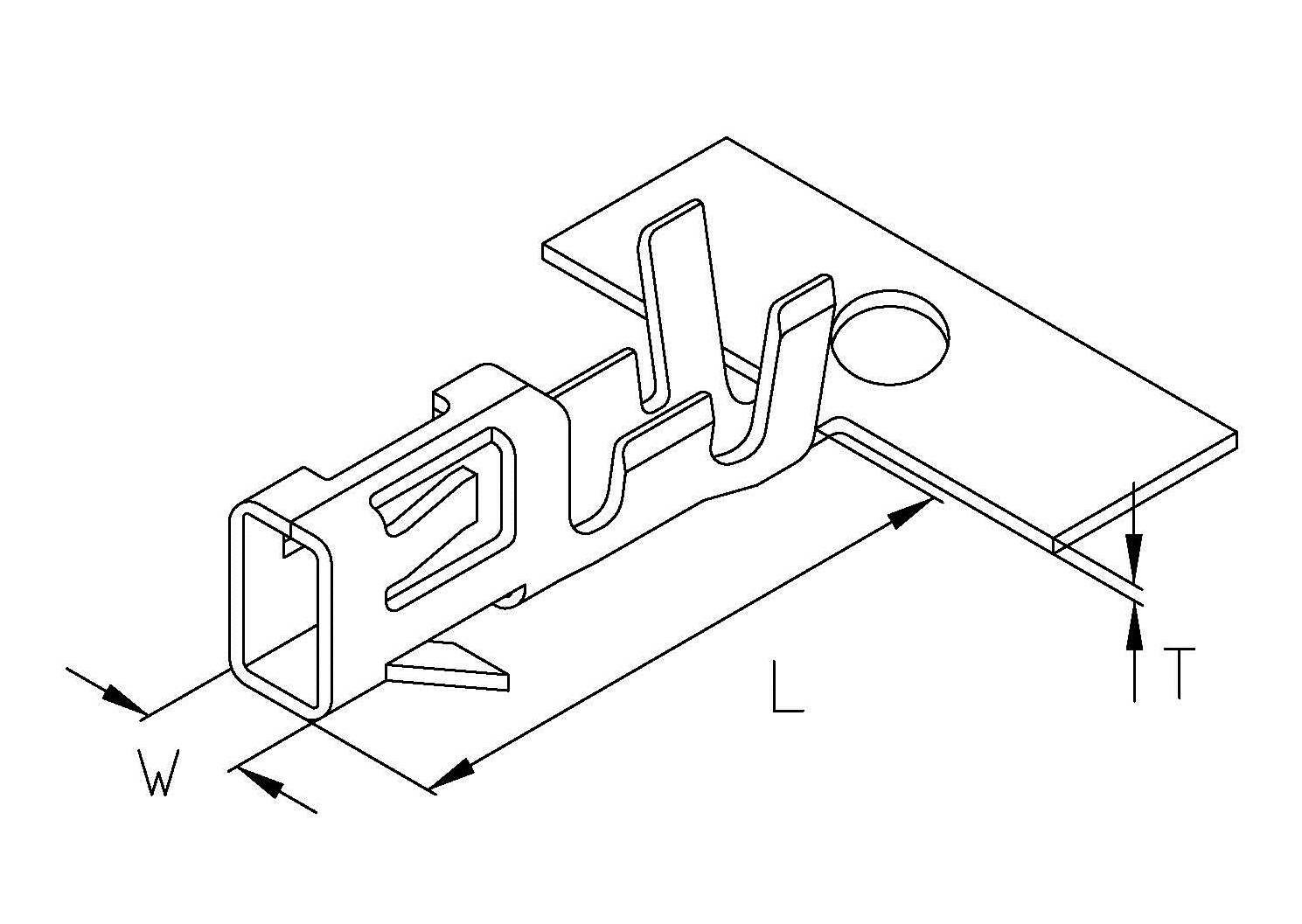

FT-D J2418BS 1.5 - 6.7 - - - 0.2 -
FT-E J11636BS 1.7 - 11.5 - - - 0.2 -

 Optional Items Features
FH MH MH1
JP24182 JM24182 JM24182-R
FH-A MH-A MH1-A
JP2514 JM2514 JM2514-R
FH-B MH-B MH1-B
JP24118 JM24118 JM24118-R
FH-C MH-C MH1-C
JP24188 JM24188 JM24188-R
FH-D MH-D MH1-D
JP2418 JM2418 JM2418-R
FH-E MH-E MH1-E
JP11635 JM11635 JM11635-R
圖示代碼 產品編號 W H L P D E T 詳圖 配合料號
尺寸 ( 單位 mm )
FH JP24182 4.0 7.8 - 2.5 - - - -
MH JM24182 5.7 7.0 - 2.5 - - - -
MH1 JM24182-R 5.7 7.0 - 2.5 - - - -
FH-A JP2514 4.7 8.0 - 2.5 - - - -
MH-A JM2514 4.9 5.9 - 2.5 0.7 - - -
MH1-A JM2514-R 4.9 7.9 - 2.5 0.7 - - -
FH-B JP24118 6.0 12.1 - 2.5 - - - -

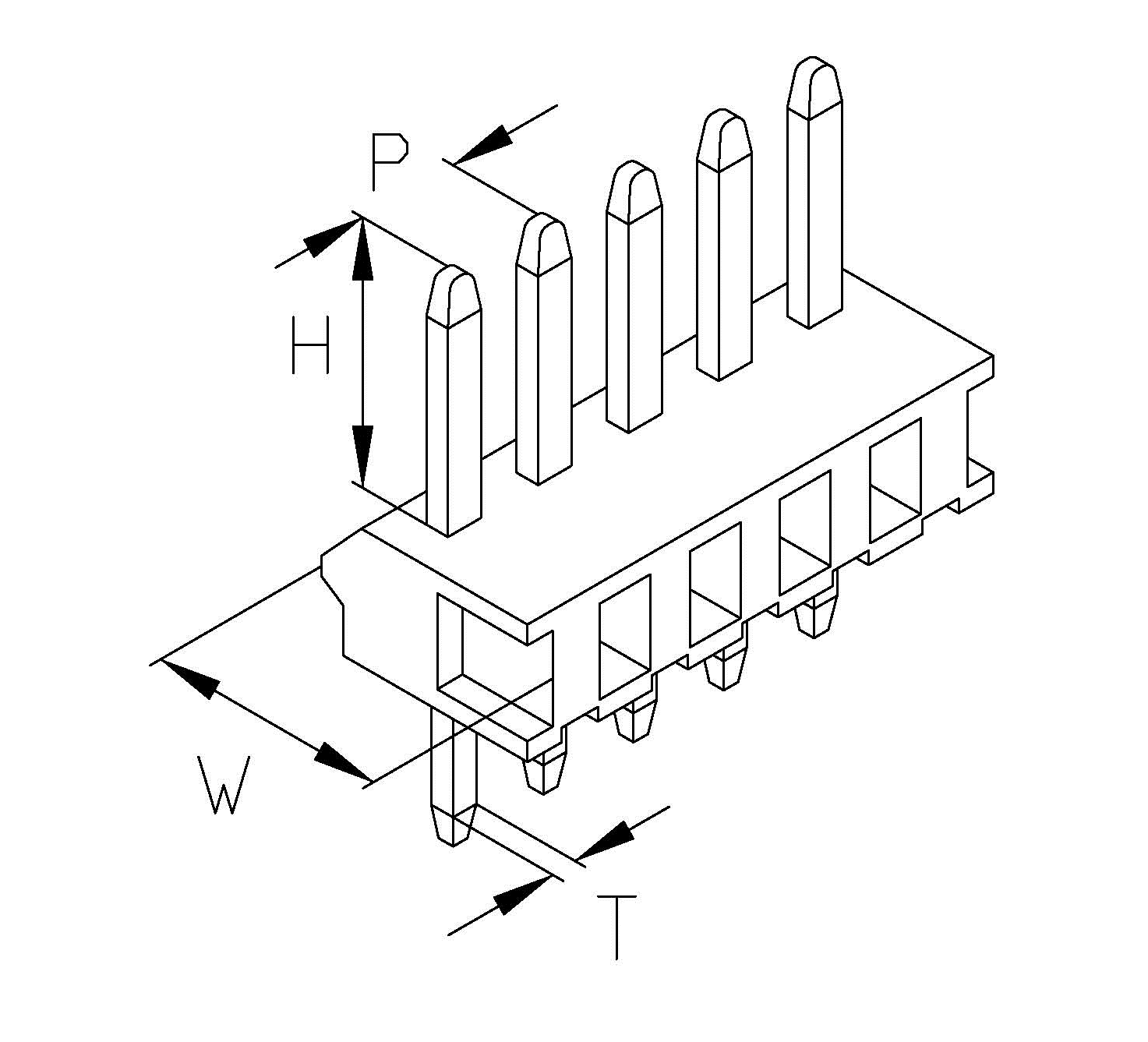

MH-B JM24118 5.7 6.2 - 2.5 - - 0.64 -
MH1-B JM24118-R 5.6 5.2 - 2.5 - - 0.64 -
FH-C JP24188 4.2 7.2 - 2.5 - - - -
MH-C JM24188 3.8 6.0 - 2.5 - - 0.64 -

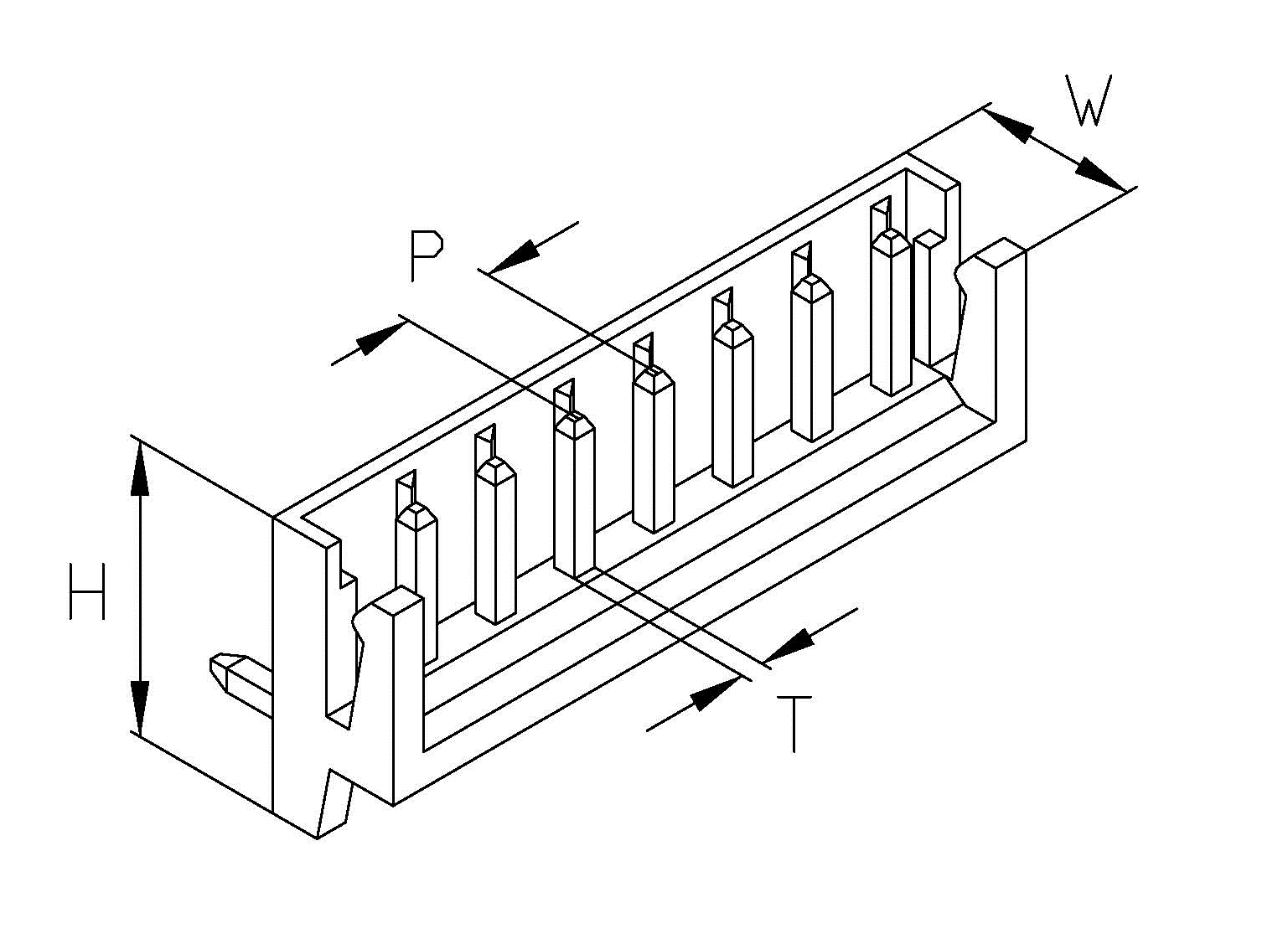

MH1-C JM24188-R 3.8 8.2 - 2.5 - - 0.64 -
FH-D JP2418 5.7 8.0 - 2.5 - - - -
MH-D JM2418 4.5 8.7 - 2.5 - - 0.64 -
MH1-D JM2418-R 6.1 10.2 - 2.5 - - 0.64 -
FH-E JP11635 6.0 14.2 - 2.5 - - - -
MH-E JM11635 5.1 10.6 - 2.5 - - 0.64 -
MH1-E JM11635R 5.1 10.6 - 2.5 - - 0.64 -
