| FT | MT |
.png) |  |
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||
| FT | J2316PS | 1.12 | - | 11.2 | - | - | - | 0.2 | - |
| MT | J2306PS | 0.64 | - | 12.5 | - | - | - | 0.2 | - |
Optional Items Features
| FH | FH1 |
 |  |
| MH | MH1 |
.png) |  |
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||

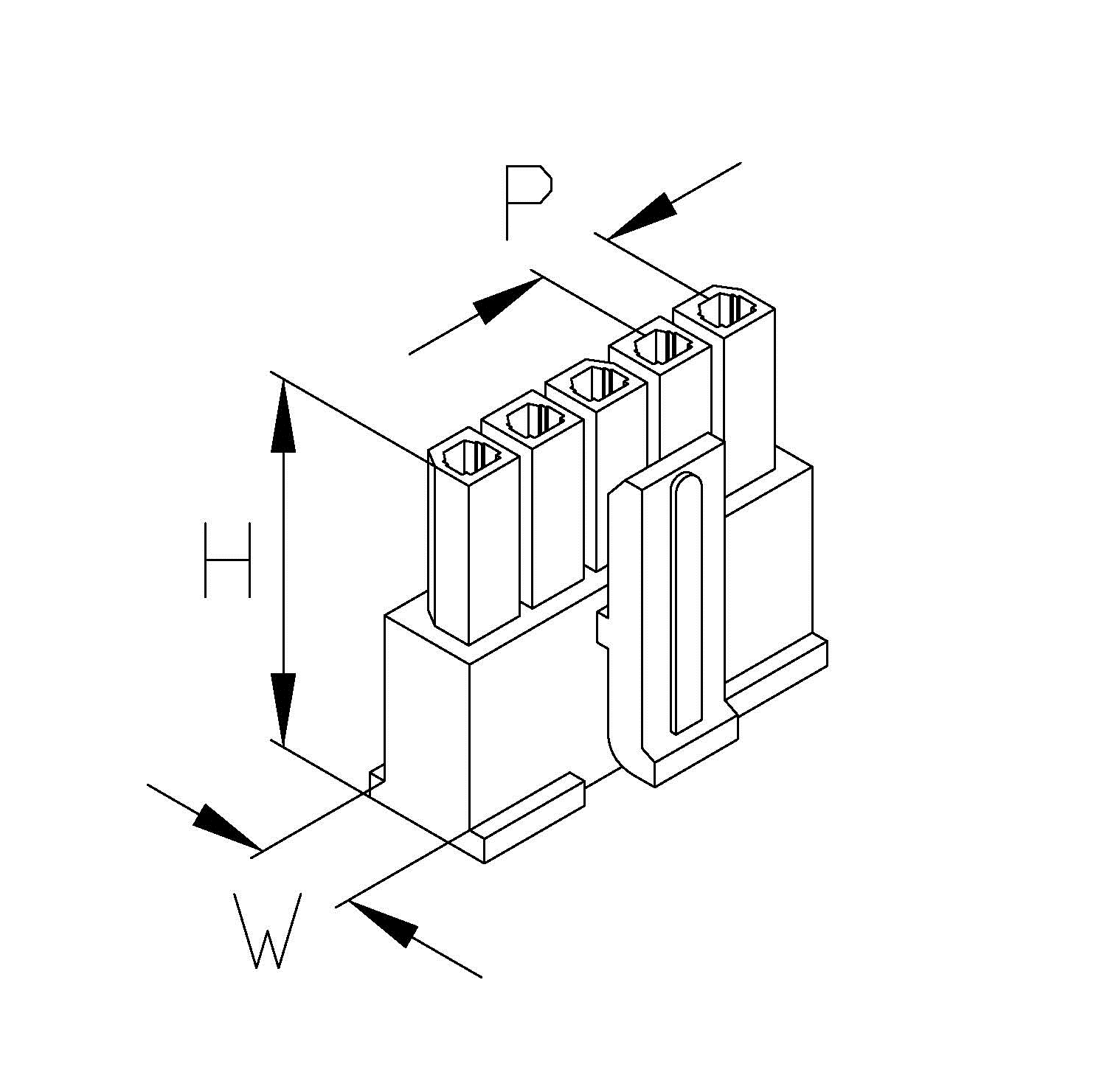

| FH | JP2316-1x | 5.3 | 14.2 | - | 3.0 | - | - | - | - | - |
| FH1 | JP2316-2x | 6.85 | 14.2 | - | 3.0 | - | - | - | - |

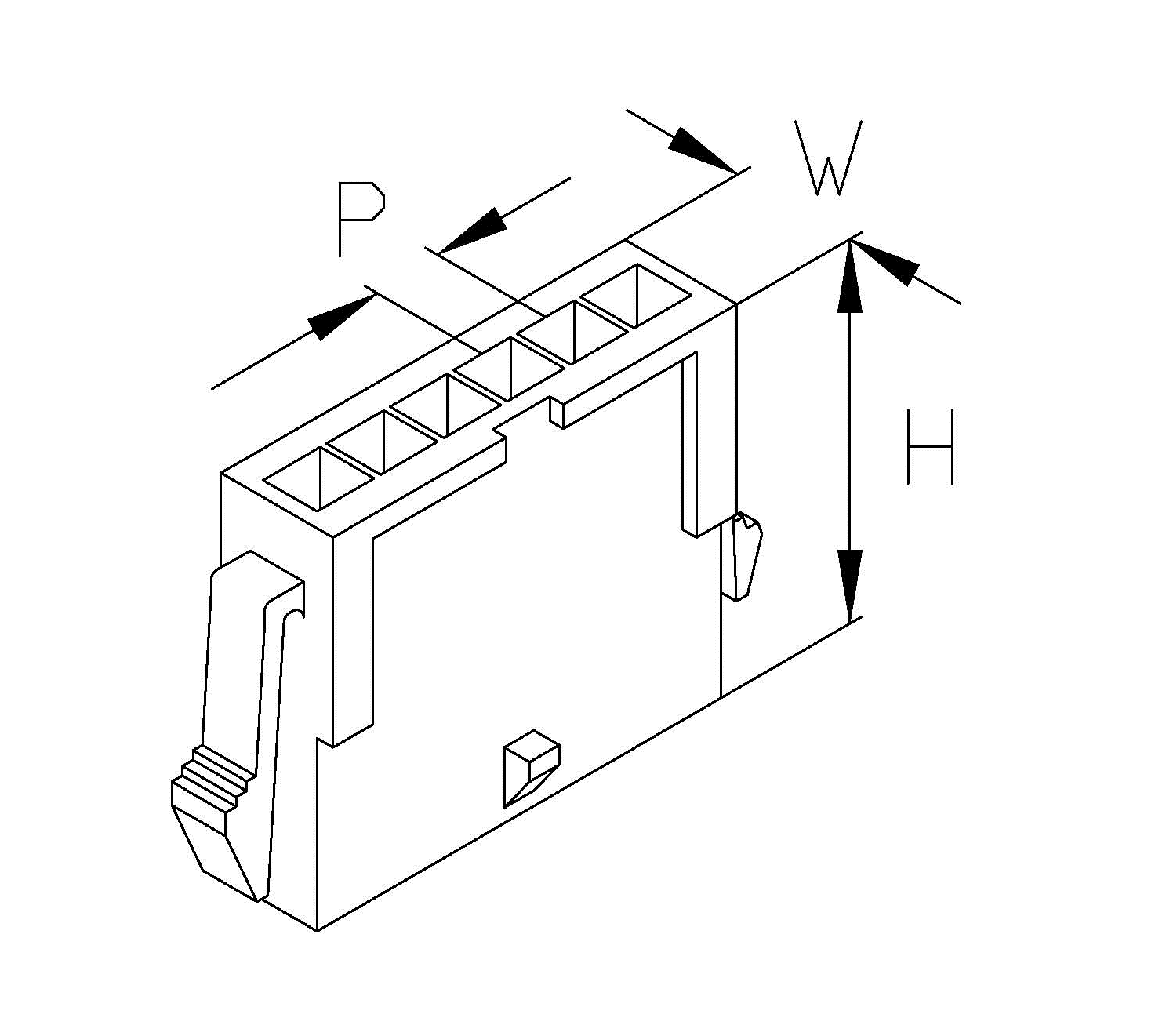

| MH | JP2306-1x | 5.2 | 17.0 | - | 3.0 | - | - | - | - |
| MH1 | JP2306-2x | 7.0 | 17.2 | - | 3.0 | - | - | - | - |
