- P5.08
Product Features
圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
尺寸 ( 單位 mm ) |
FT | J1120BS | - | - | 17.8 | - | 2.02 | 10.8 | 0.25 | | - |

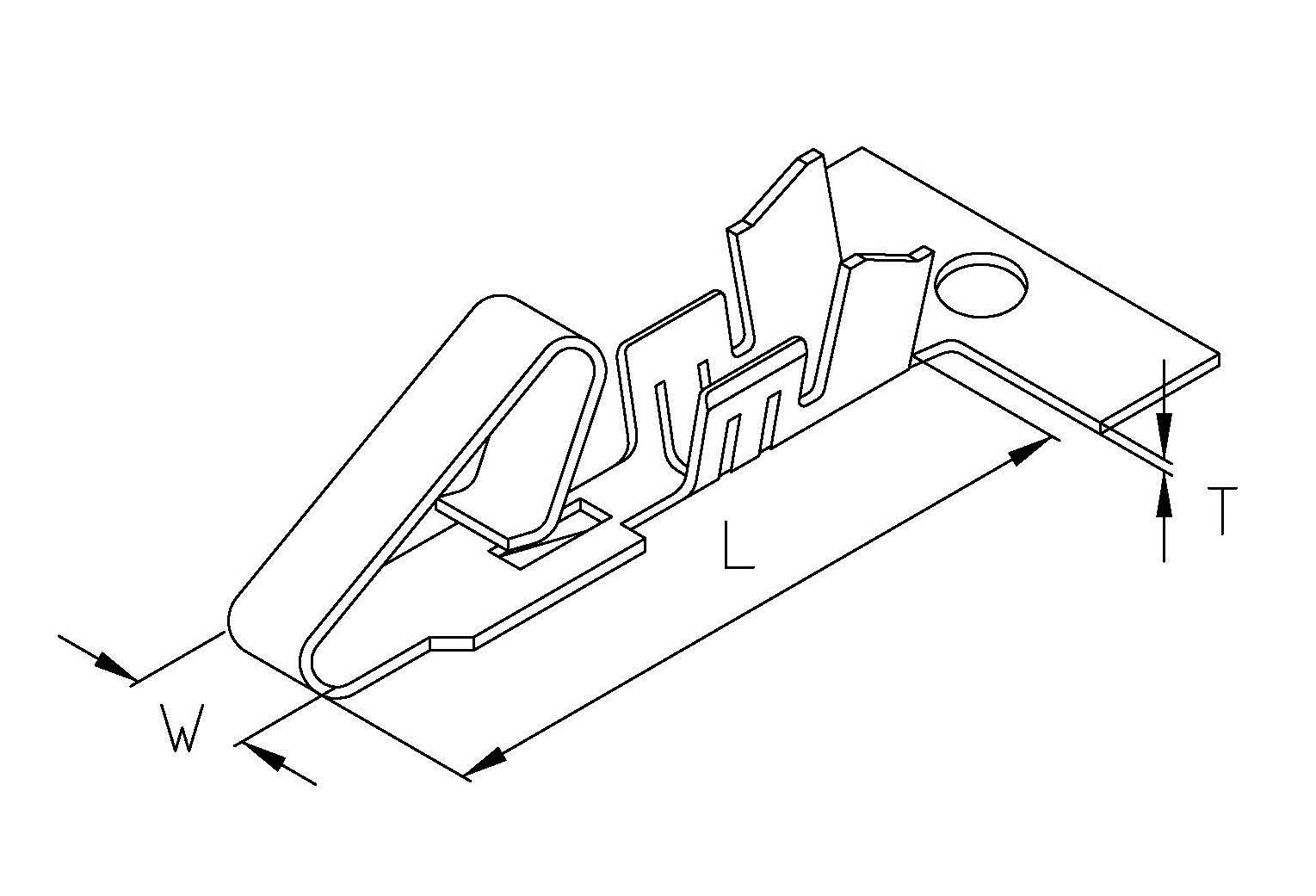

FT-A | J24221BS | 1.8 | - | 13.7 | - | - | - | 0.25 | | - |

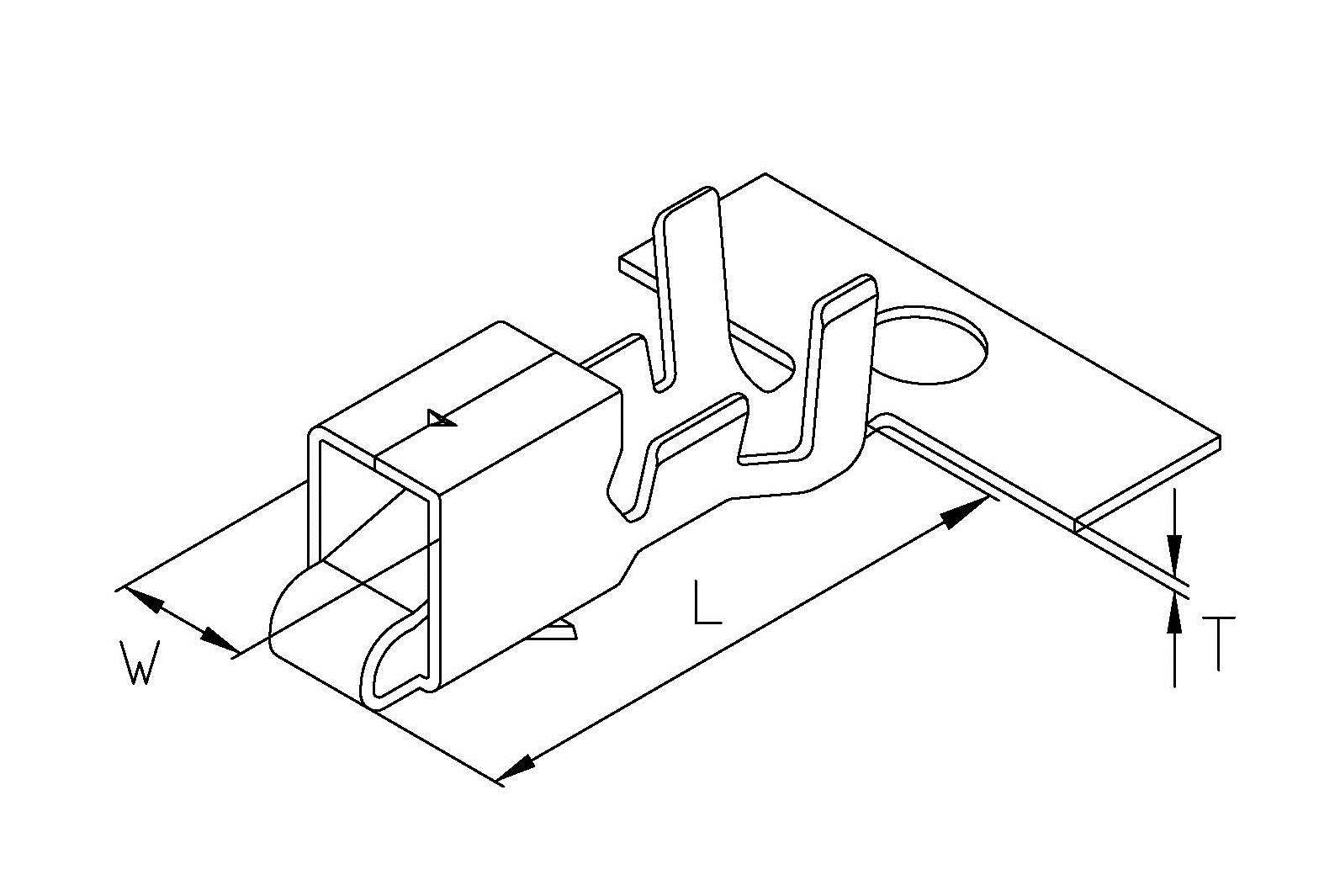

FT-B | J24228BS | 3.0 | - | 10.6 | - | - | - | 0.25 | | - |
Optional Items Features
FH | MH | |
| | |
FH-A | MH-A | MH1-A |
| | |
FH-B | | |
| | |
圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
尺寸 ( 單位 mm ) |
FH | JP1120 | 7.5 | 21.8 | - | 5.08 | - | - | - | | - |

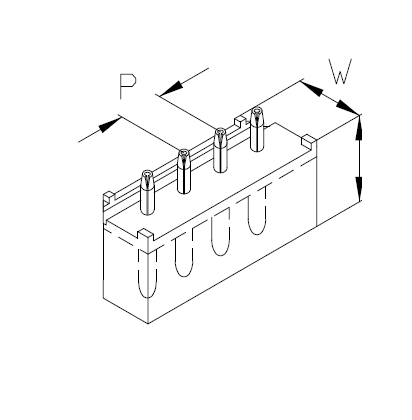

MH | JM1120 | 8.4 | 10.4 | - | 5.08 | - | - | - | | - |
FH-A | JP2422-A | 6.3 | 16.0 | - | 5.08 | - | - | - | | - |
MH-A | JM2422-B | 10.2 | 13.3 | - | 5.08 | - | - | 1.14 | | - |
MH1-A | JM2422-RB | 10.2 | 12.6 | - | 5.08 | - | - | 1.14 | | - |
FH-B | JP24228-B | 6.7 | 13.4 | - | 5.08 | - | - | - | | - |
