Product Features
| FT | FT1 | FT2 |
 |  |  |
| FT3 | FT4 | FT5 |
 |  |  |
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||
| FT | J1010BS | 2.3 | - | 10.4 | - | - | 4.6 | 0.25 | - |
| FT | J1011BS | 2.3 | - | 10.4 | - | - | 4.6 | 0.25 | - |
| FT1 | J1012BS | 1.4 | - | 10.0 | - | - | 3.5 | 0.25 | - |
| FT2 | J1018PS | 1.2 | - | 6.7 | - | - | - | 0.2 | - |
| FT3 | J10181BS | - | - | 6.9 | - | - | - | 0.2 | - |
| FT4 | J10182BS | - | - | 6.1 | - | - | - | 0.2 | - |

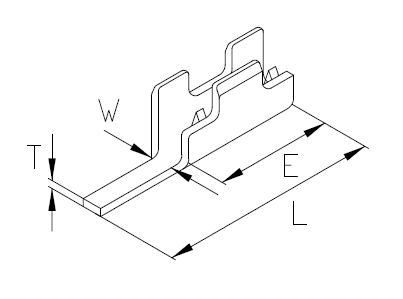

| FT5 | JS2122BS | 1.2 | - | 11.0 | - | - | 6.0 | 0.4 | - |
| FT5 | JS2124BS | 1.0 | - | 11.0 | - | - | 6.0 | 0.4 | - |
