Product Features

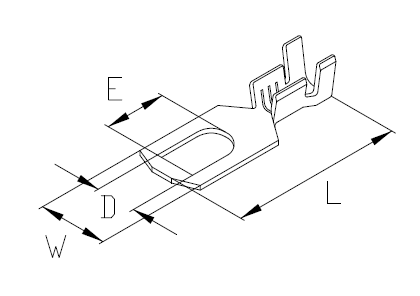

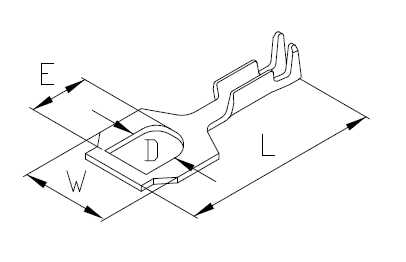

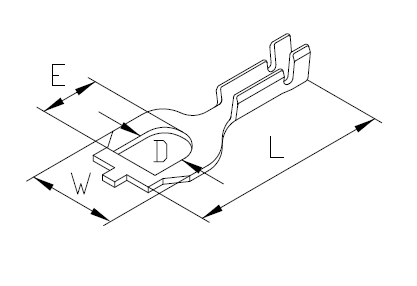

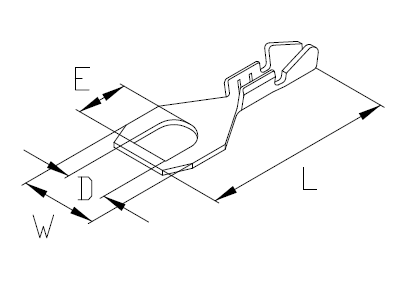

| FT | FT1 | FT2 | FT3 |
.png) | .png) | .png) | .png) |
| 圖示代碼 | 產品編號 | W | H | L | P | D | E | T | 詳圖 | 配合料號 |
|---|---|---|---|---|---|---|---|---|---|---|
| 尺寸 ( 單位 mm ) | ||||||||||
| FT | J1535BS | 7.4 | - | 19.0 | - | 3.7 | 6.6 | 0.5 | - |
| FT | J15351BS | 6.3 | - | 19.0 | - | 3.7 | 6.6 | 0.5 | - |
| FT | J1543BS | 7.4 | - | 19.0 | - | 4.3 | 6.6 | 0.5 | - |
| FT | J1544BS | 7.4 | - | 19.0 | - | 4.3 | 6.6 | 0.4 | - |
| FT | J15441BS | 7.4 | - | 19.0 | - | 4.3 | 6.6 | 0.5 | - |
| FT | J1553BS | 7.4 | - | 19.0 | - | 5.3 | 6.6 | 0.5 | - |
| FT1 | J1539BS | 6.3 | - | 16.1 | - | 3.5 | 4.2 | 0.4 | - |
| FT2 | J15341BS | 6.35 | - | 14.5 | - | 3.4 | 4.4 | 0.4 | - |
| FT3 | J1537BS | 6.4 | - | 14.7 | - | 3.4 | 4.25 | 0.4 | - |
